P-TRAP WITH COUPLING AND DRAIN PLUG - (525.040.050 S)
Part Of the Series: Water trap-hand wash
Type no.: 525.040.050 S
EAN no.: 5705499114072
RSK no.: 1551565

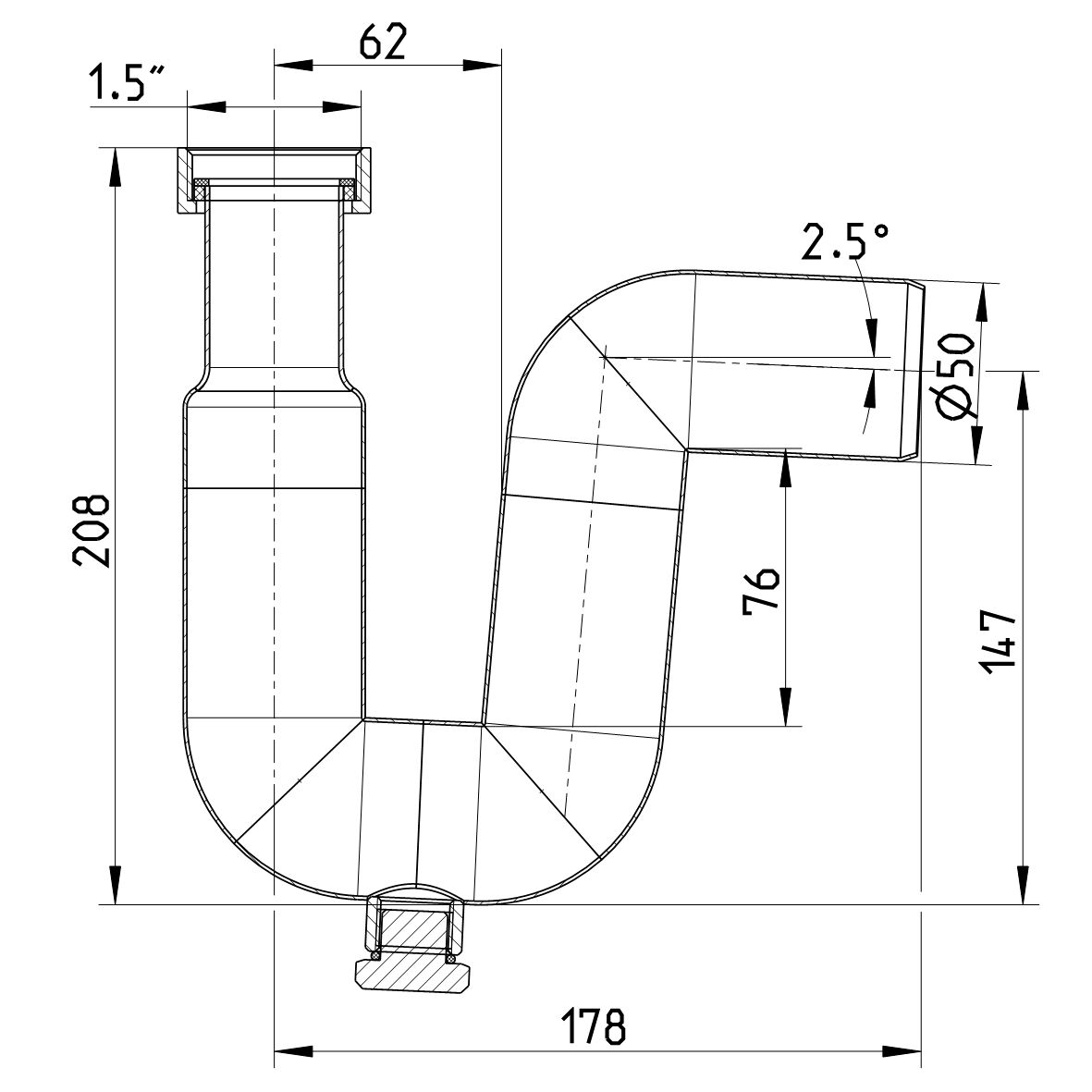

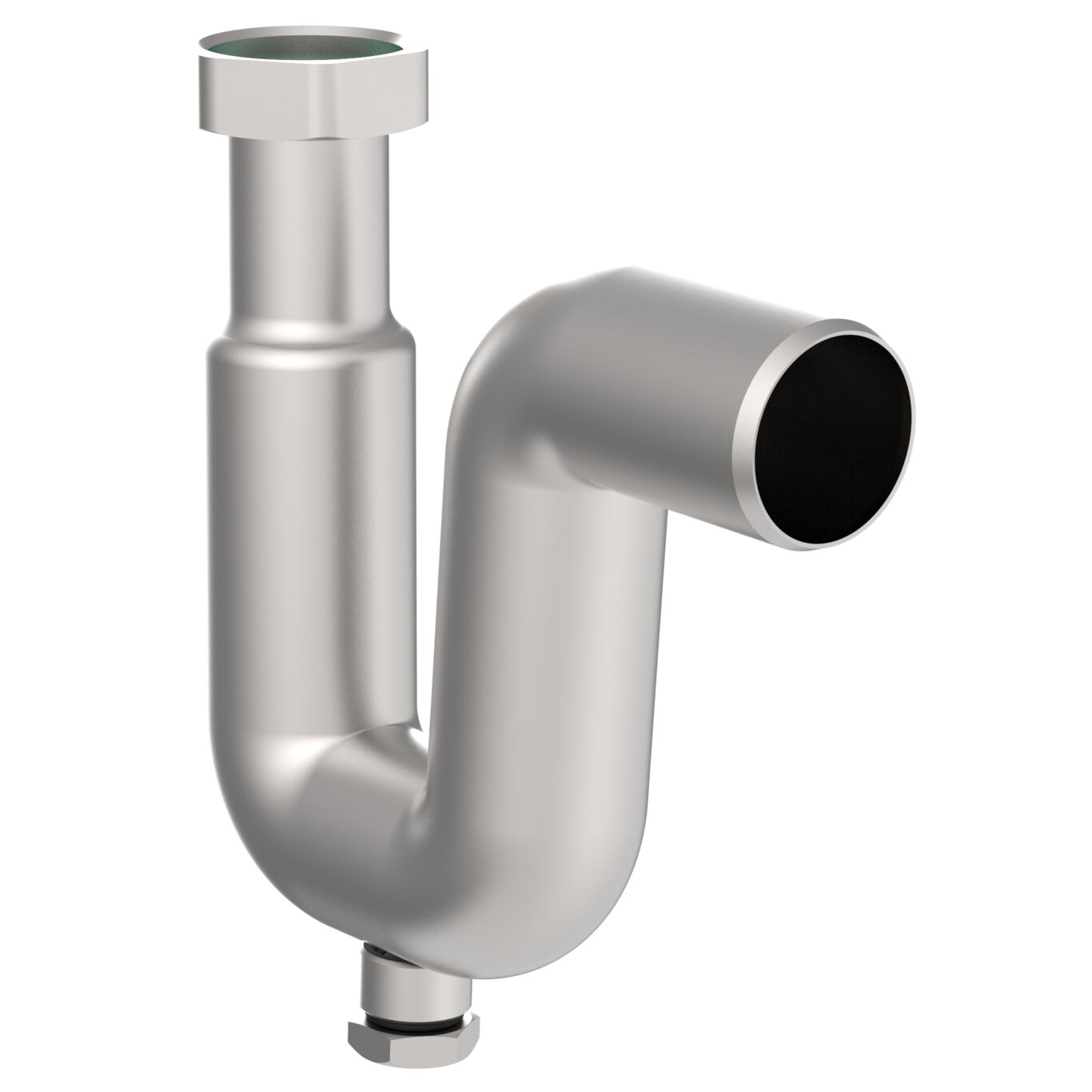

P-TRAP WITH COUPLING AND DRAIN PLUG
-Diameter: Ø1½"/50mm
-Water seal height = 74mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic|Industrial |
Length (mm) | 208 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Water Seal Height (mm) | 76 |
Weight (kg) | 0,90 |
Weight (lbs) | 1,98 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia Bureau Veritas - 03456-H0, ShipDrains Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes
