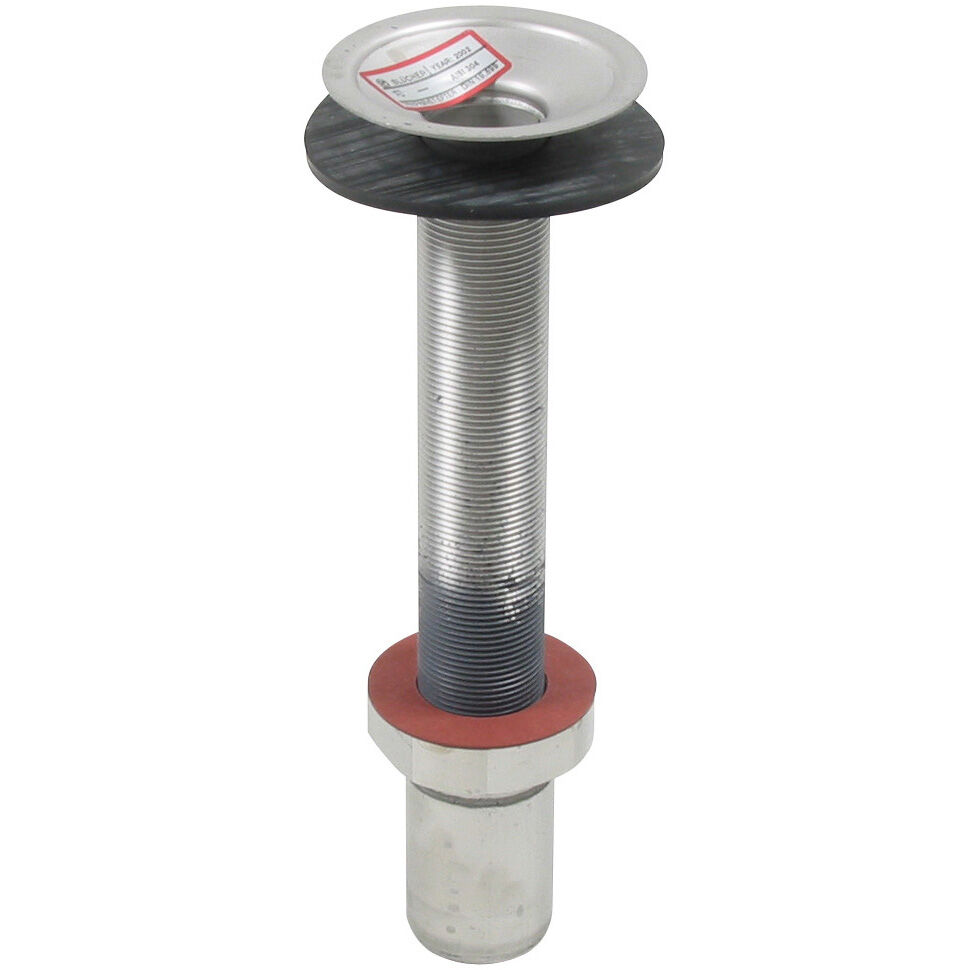

INSERT FOR SQUARE CAST IRON SHOWER DRAIN - (135.000.040)
Part Of the Series: RS82
Type no.: 135.000.040
EAN no.: 5705499100167
VVS no.: 160385240
INSERT FOR SQUARE CAST IRON SHOWER DRAIN

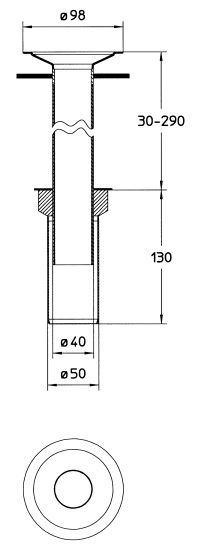

-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 420 |
Min. height (Inch) | 6,3 |
Minimum Height (mm) | 160 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 1,32 |
Weight (lbs) | 2,91 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
