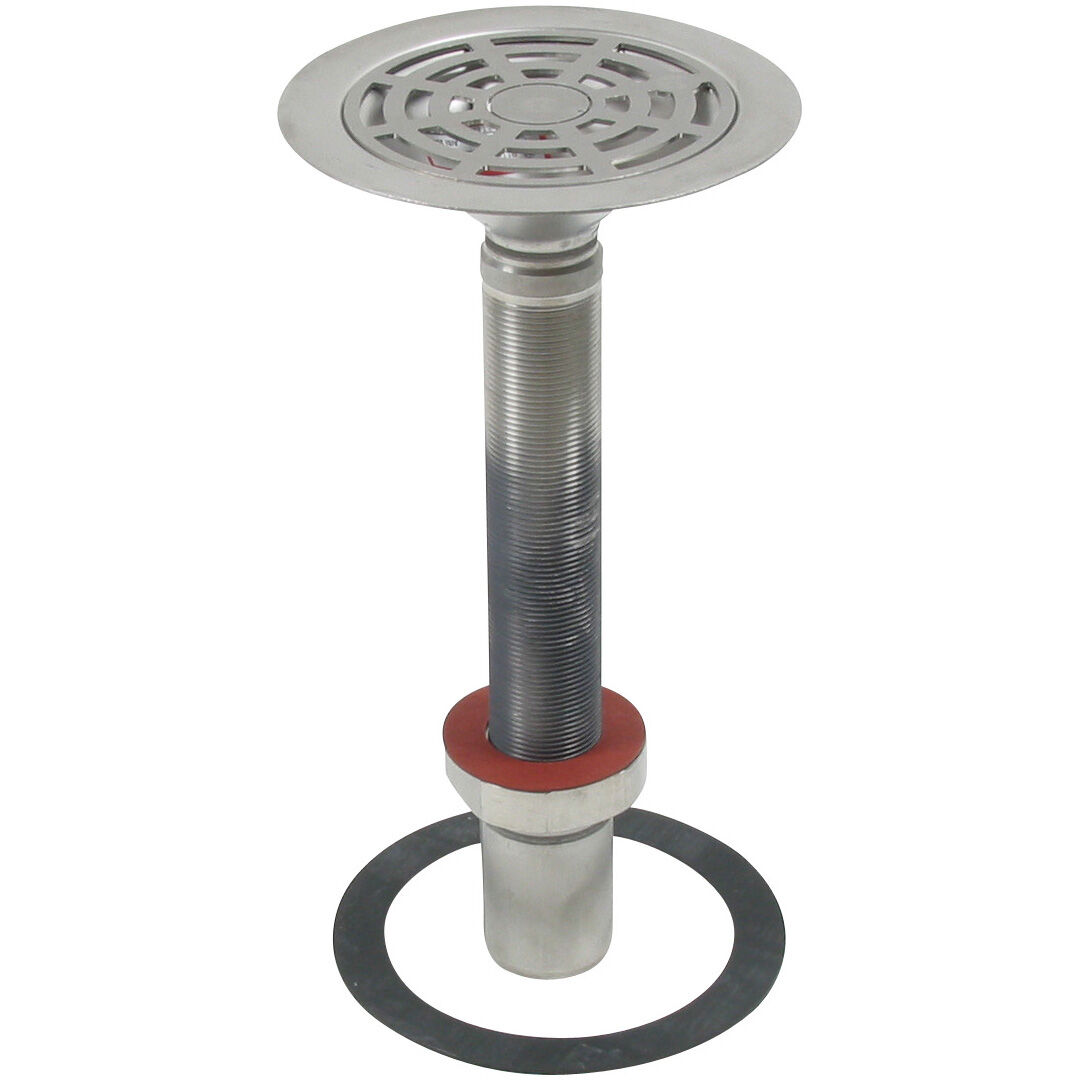

INSERT FOR ROUND CAST IRON SHOWER DRAIN - (135.130.040)
×
![]()
Part Of the Series: RS82
Type no.: 135.130.040
EAN no.: 5705499100174
VVS no.: 160385040
INSERT FOR ROUND CAST IRON SHOWER DRAIN

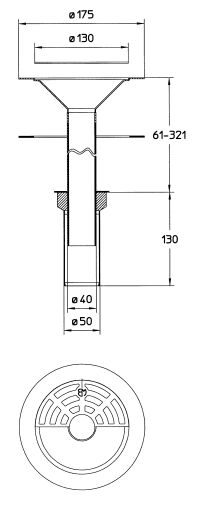

-Grating: 130x130mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 418 |
| Min. height (Inch) | 6,22 |
| Minimum Height (mm) | 158 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 1,68 |
| Weight (lbs) | 3,7 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
