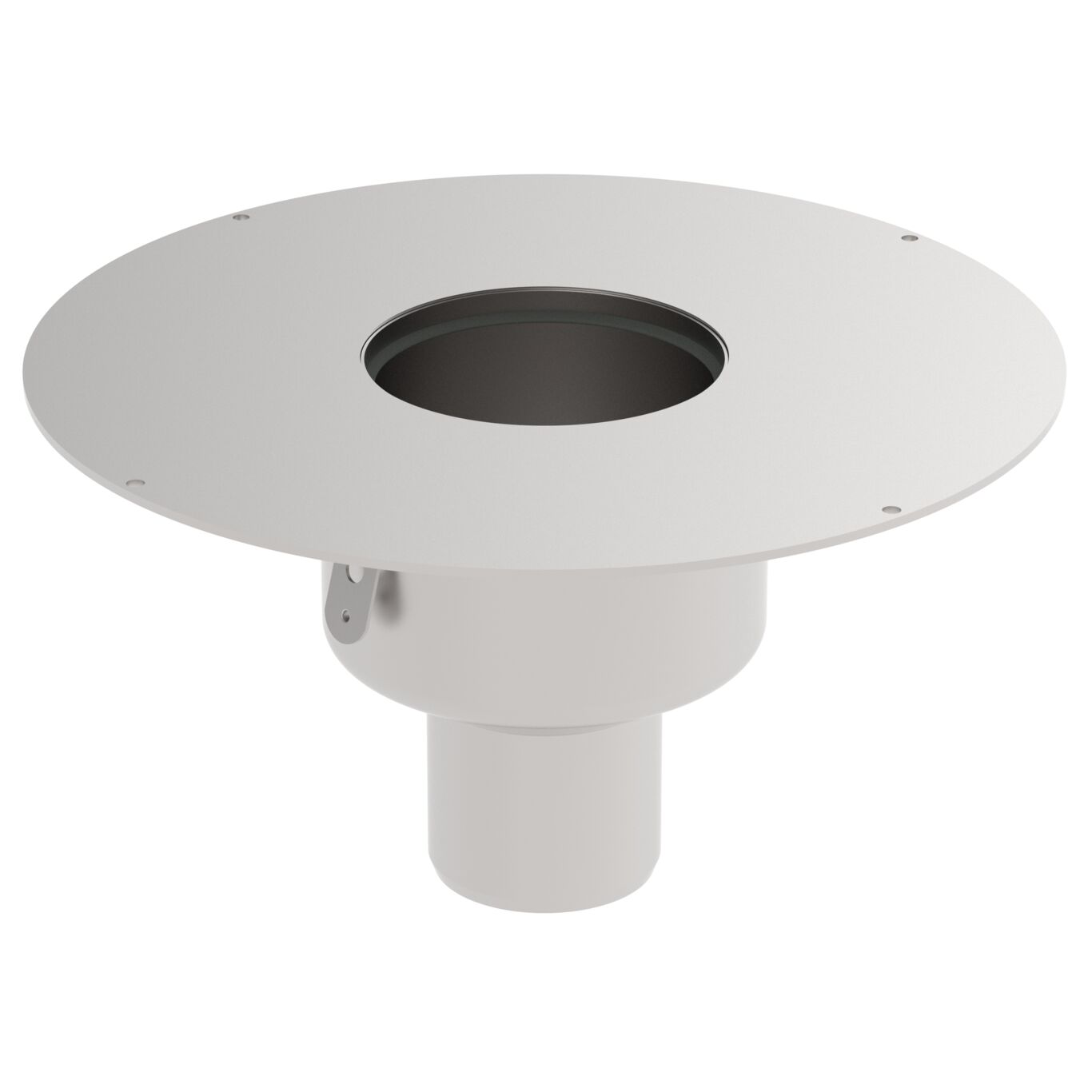

ADJUSTABLE LOWER PART - (350.020.075)
×
![]()
Part Of the Series: Lower part-110
Type no.: 350.020.075
EAN no.: 5705499141726
ADJUSTABLE LOWER PART
-Liquid membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 176 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Weight (kg) | 2,45 |
| Weight (lbs) | 5.40 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
