MESH GRATING SQUARE - (696.223.494.395)
×
![]()
Part Of the Series: Grating-Kitchen Channel-500
Type no.: 696.223.494.395
EAN no.: 5705499140033
Size: 500x400
MESH GRATING SQUARE

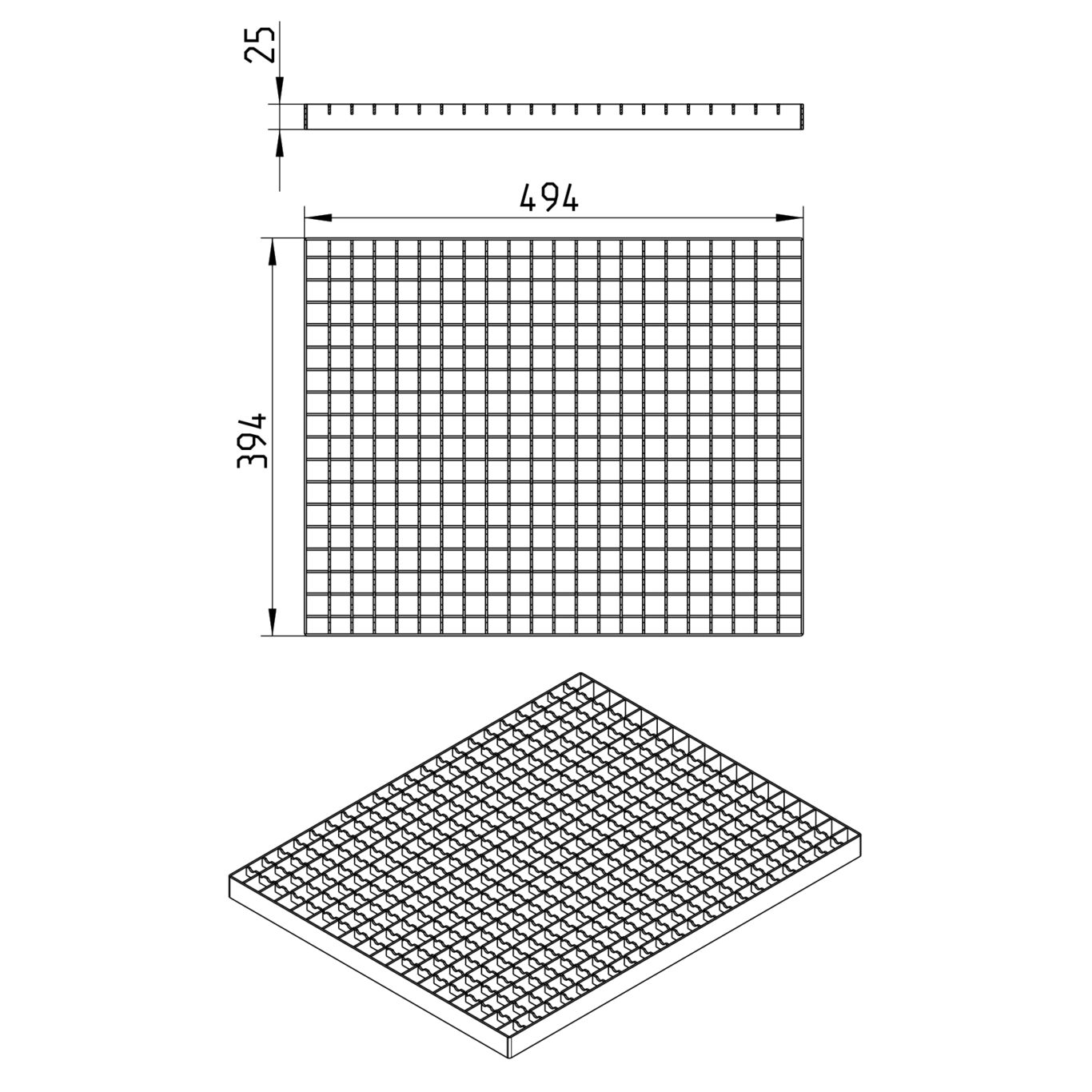

-Grating: 494x395mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1500) |
| Load class EN1253(lbs) | L15 (3307) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 19⅝x15¾ |
| Size (mm) | 500x400 |
| Weight (kg) | 6,00 |
| Weight (lbs) | 13,23 |
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
