MESH GRATING SQUARE - (696.223.394.595)
×
![]()
Part Of the Series: Grating-Kitchen Channel-400
Type no.: 696.223.394.595
EAN no.: 5705499126846
RSK no.: 7121859
NRF no.: 3397147
LVI no.: 3304957
Size: 400x600

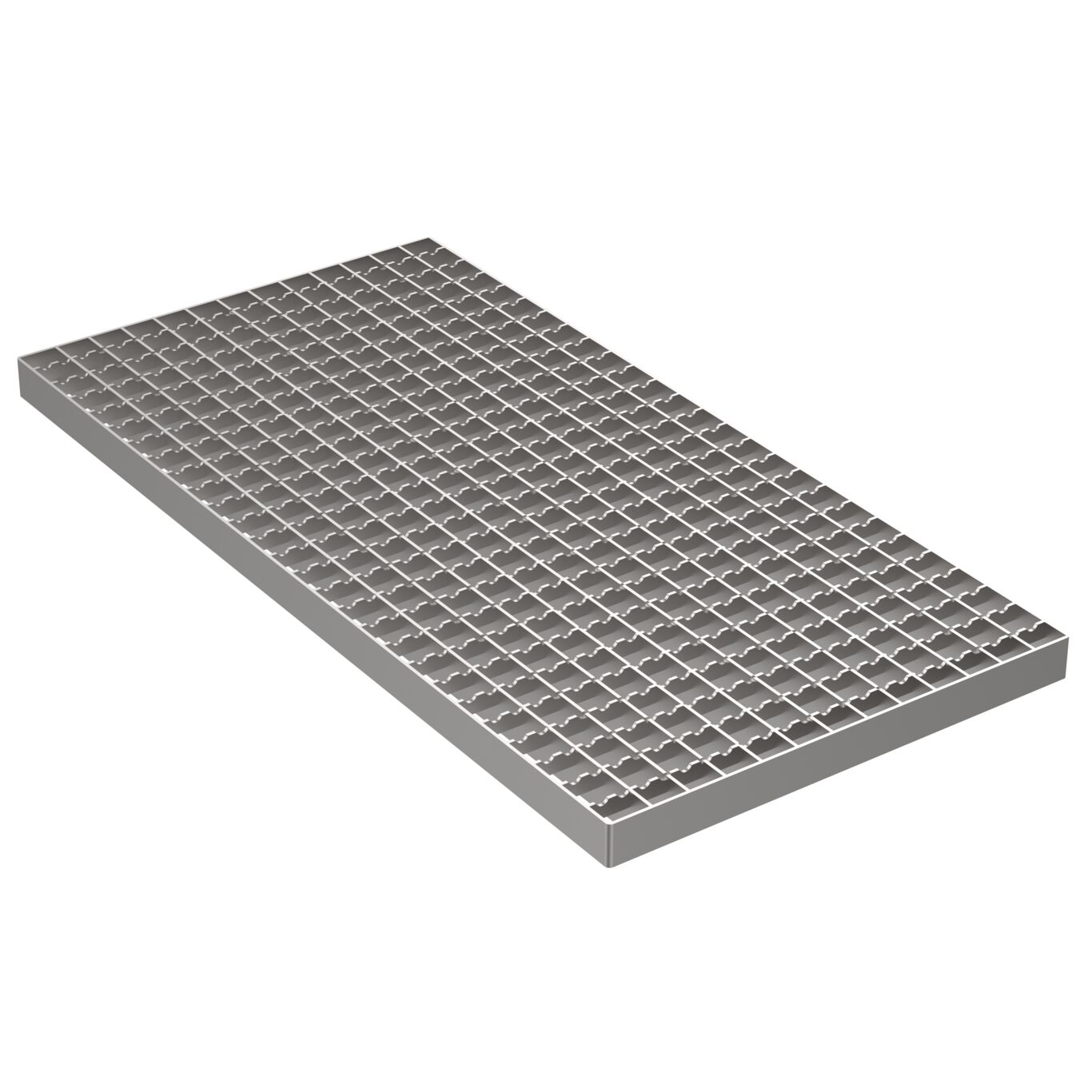

MESH GRATING SQUARE

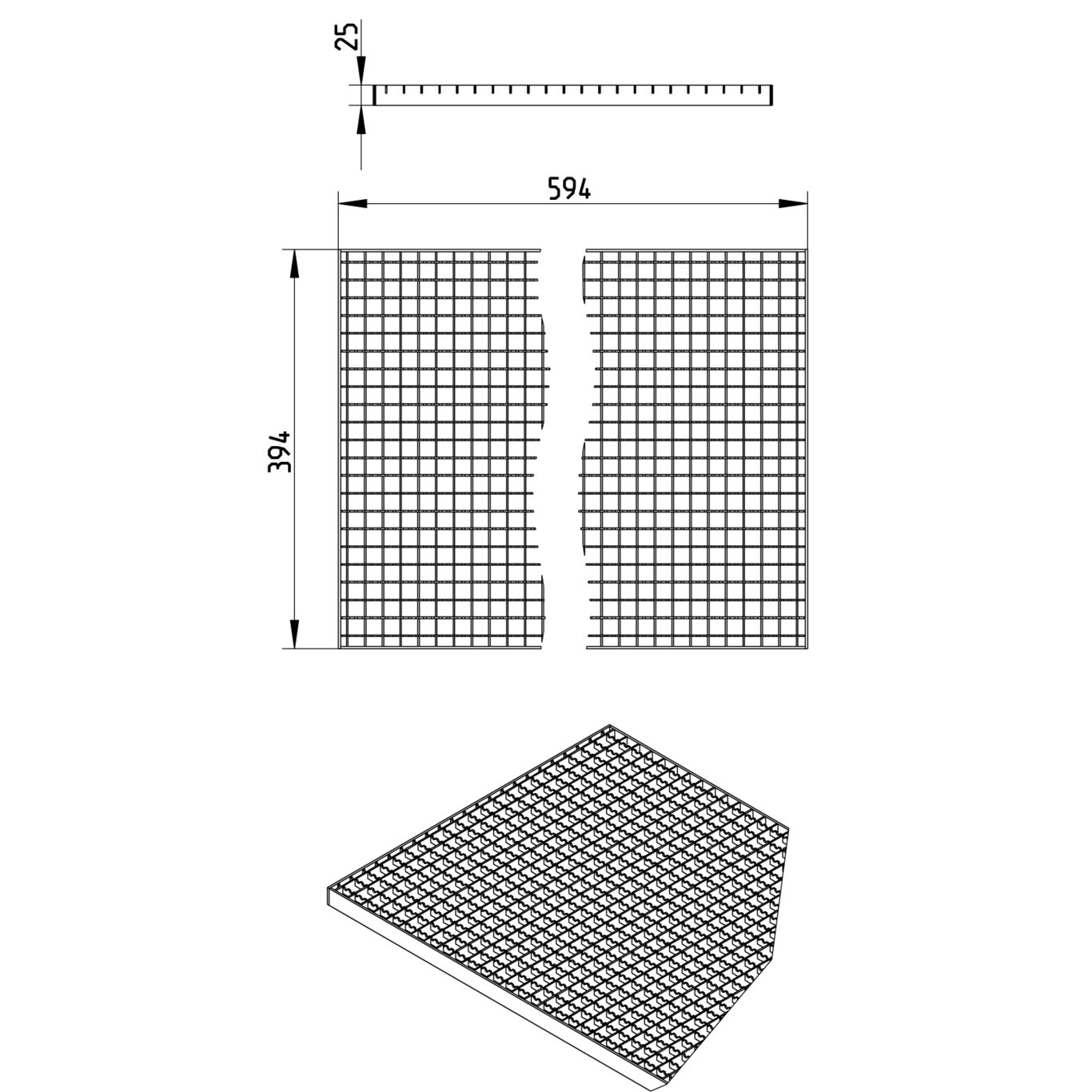

-Grating: 394x594mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1500) |
| Load class EN1253(lbs) | L15 (3307) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 15¾x23⅝ |
| Size (mm) | 400x600 |
| Weight (kg) | 6,70 |
| Weight (lbs) | 14,77 |
-
