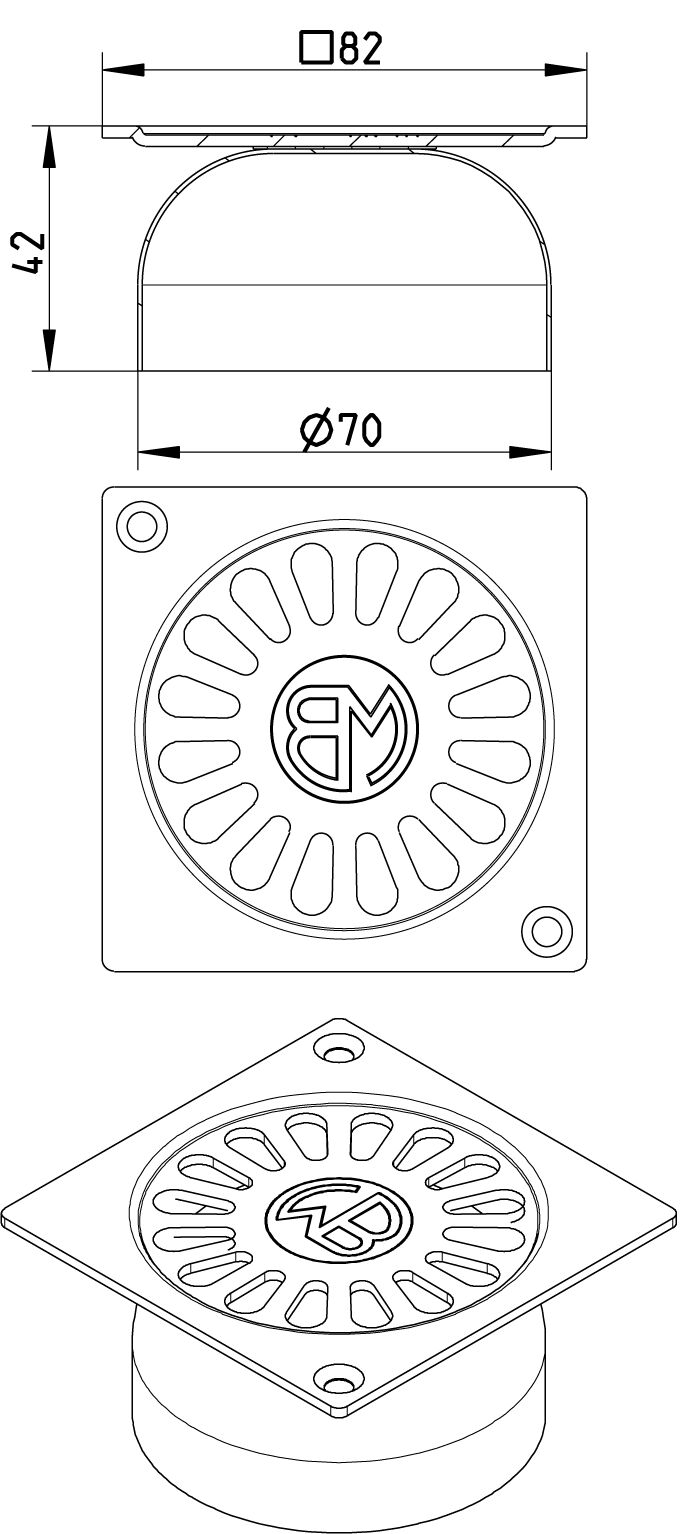

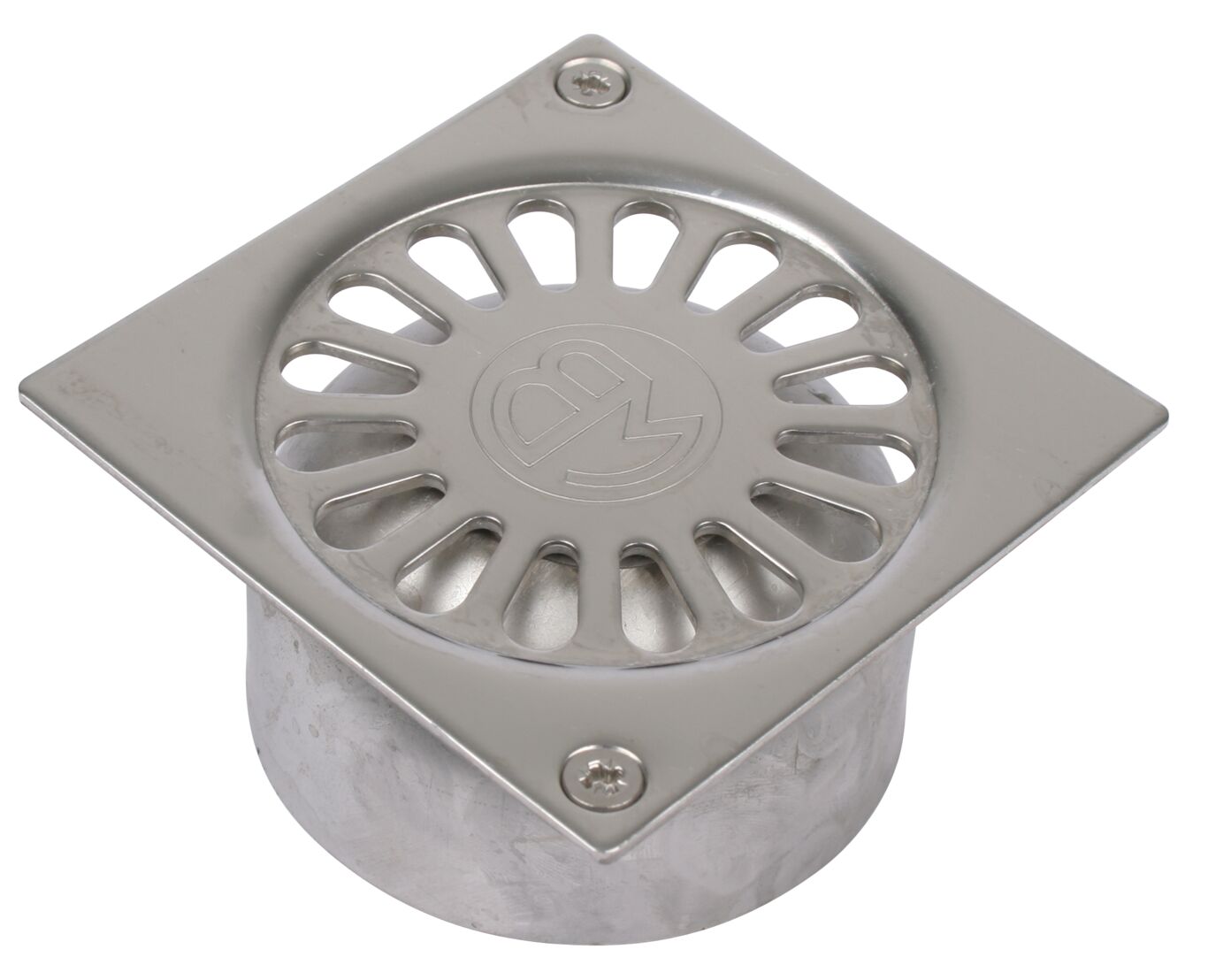

GRATING SQUARE WITH BELL TRAP - (610.100.002)
Part Of the Series: Grating-Drain-97
Type no.: 610.100.002
EAN no.: 5705499118483
Size: 97x97
GRATING SQUARE WITH BELL TRAP
-With screwlock
-Grating: 82x82mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 42 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 97x97 |
| Weight (kg) | 0,16 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
