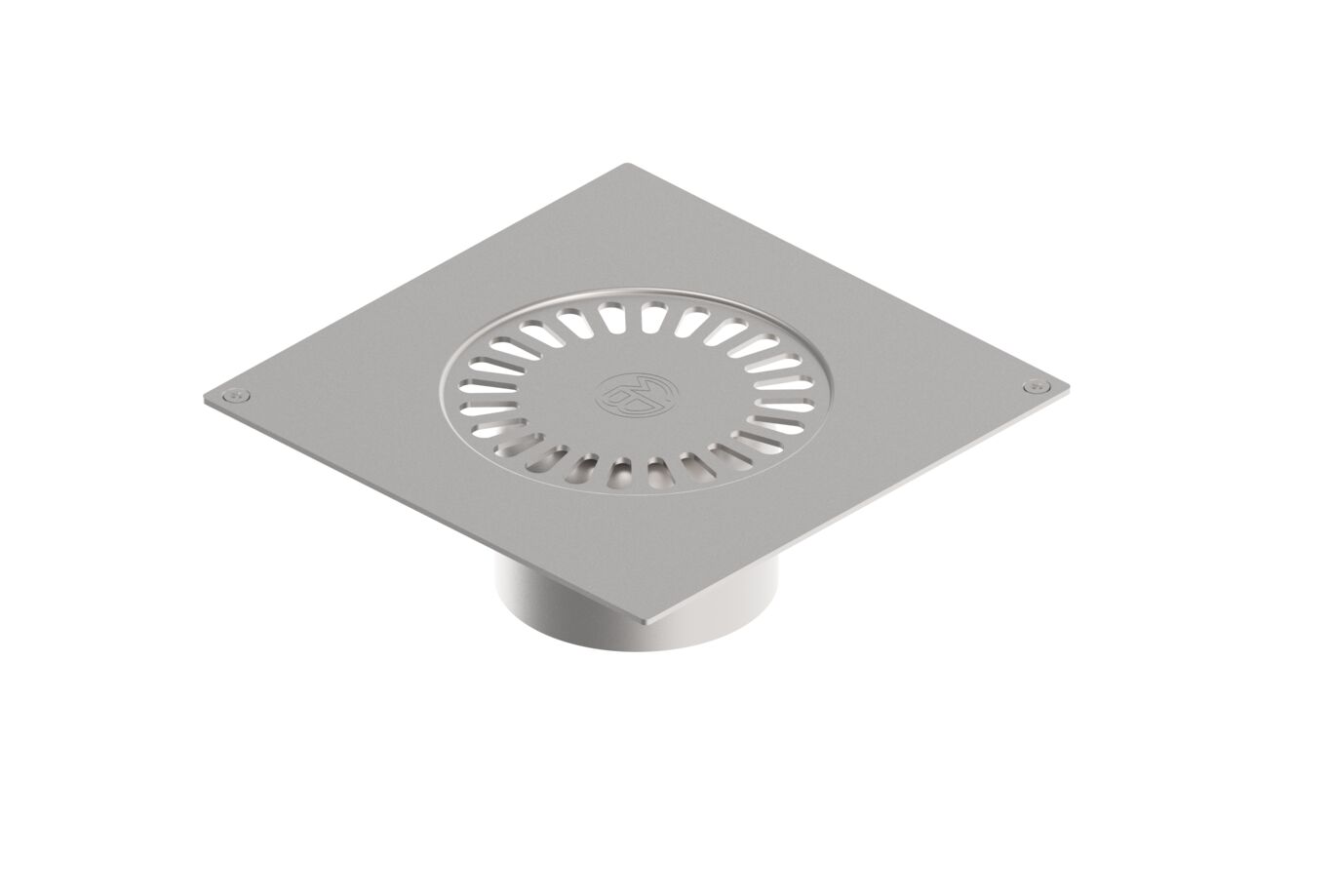

GRATING SQUARE, HIGH BELL TRAP - (610.200.004)
Part Of the Series: Grating-Drain-197
Type no.: 610.200.004
EAN no.: 5705499119978
Size: 197x197
GRATING SQUARE, HIGH BELL TRAP
-With screwlock

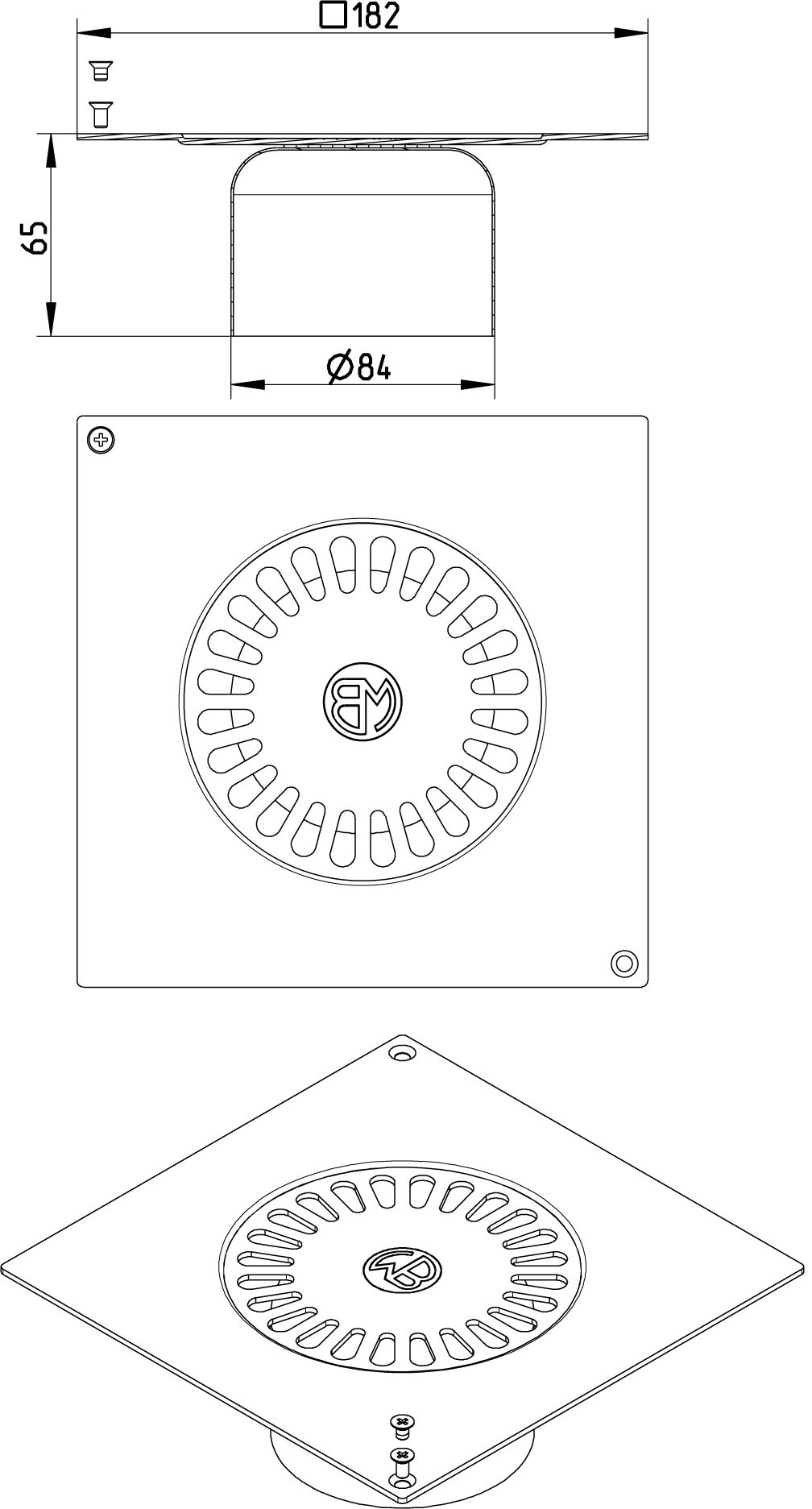

-Grating: 182x182mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 65 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 197x197 |
| Weight (kg) | 0,59 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
