LADDER GRATING CHANNEL - (697.125.200.50 S)
Part Of the Series: Grating-Channel-200
Type no.: 697.125.200.50 S
EAN no.: 5705499103519
Size: 200x500

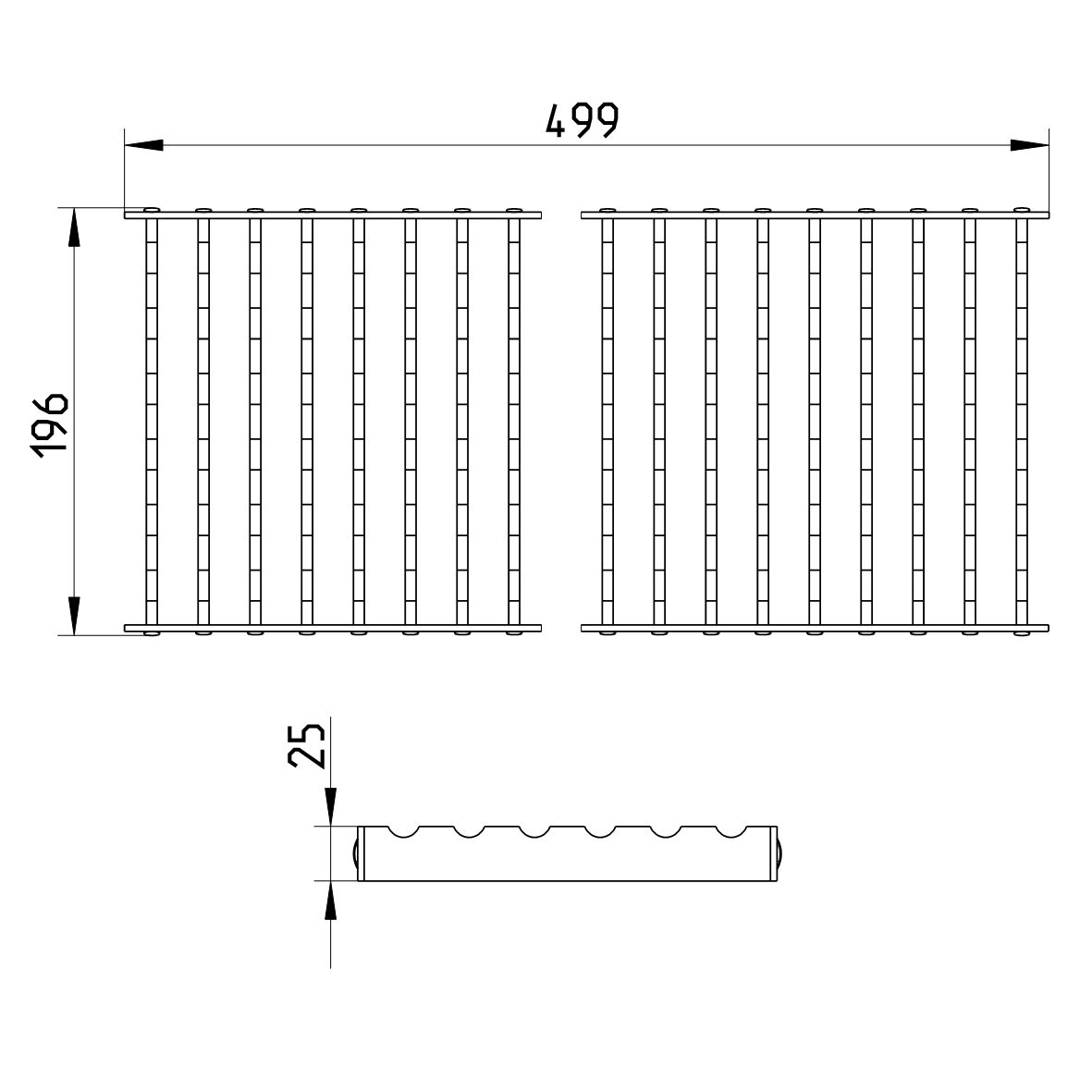

LADDER GRATING CHANNEL
-25mm height
-Grating: 195x499mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Load Class EN1253 | R50 |
Load Class EN1253 (kg) | R50 (7000) |
Load class EN1253(lbs) | R50 (15432) |
Load Class EN1433 | B125 |
Load Class EN1433 (kg) | B125 (14.000) |
Load class EN1433(lbs) | B125 (30865) |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 25 |
Non-slip | R11 |
Number of Screws | 0 |
Shape | Rectangular |
Size (Inch) | 7⅞x19⅝ |
Size (mm) | 200x500 |
Weight (kg) | 4,19 |
Weight (lbs) | 9,24 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
