GASTIGHT UPPER PART - (774.452.000 S)
×
![]()
Part Of the Series: Upper part-Gastight
Type no.: 774.452.000 S
EAN no.: 5705499115789
LVI no.: 3304002
Size: 200x200

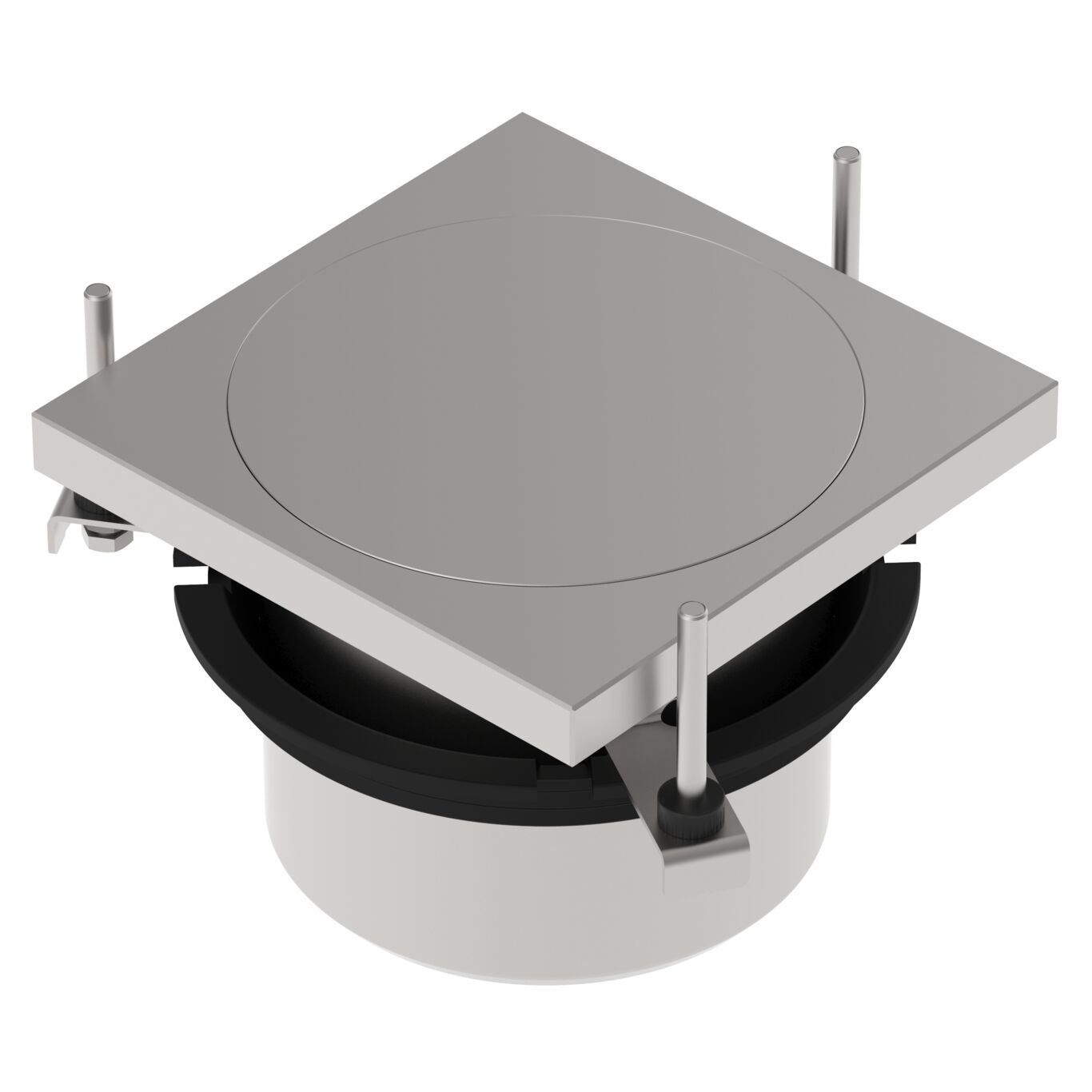

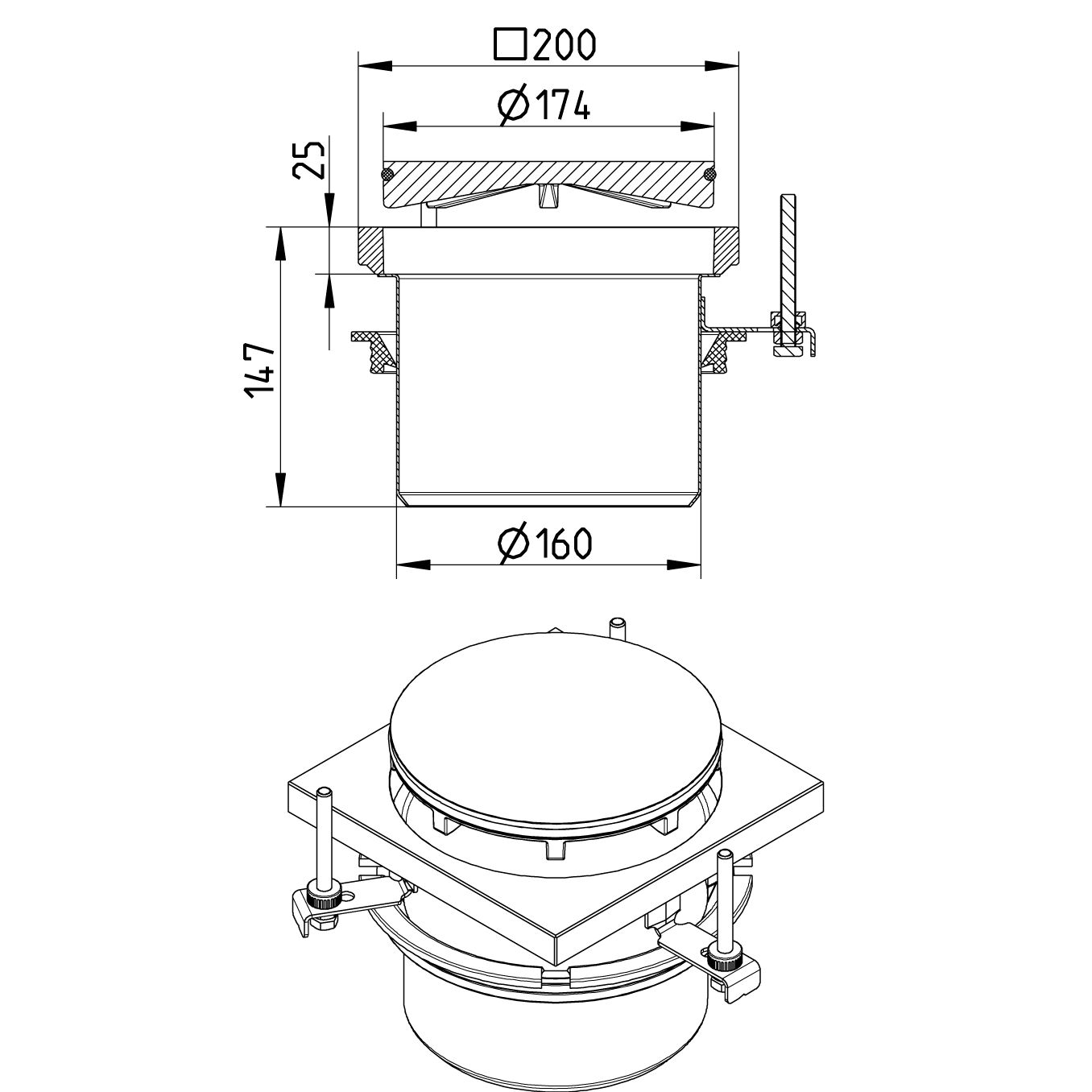

GASTIGHT UPPER PART
-For vacuum handle
-Floor: concrete and tiled
-Frame: 200x200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Load Class EN1253 | N250 |
| Load Class EN1253 (kg) | N250 (20000) |
| Load class EN1253(lbs) | N250 (44092) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screw Holes | 3 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 6,18 |
| Weight (lbs) | 13,62 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
