RODDING EYE FOR VACUUM HANDLE/SCREW - (144.205.160.10 S)
×
![]()
Part Of the Series: Rodding eye-No membrane-200
Type no.: 144.205.160.10 S
EAN no.: 5705499412284
RSK no.: 7120131
LVI no.: 3305809
Size: 200x200

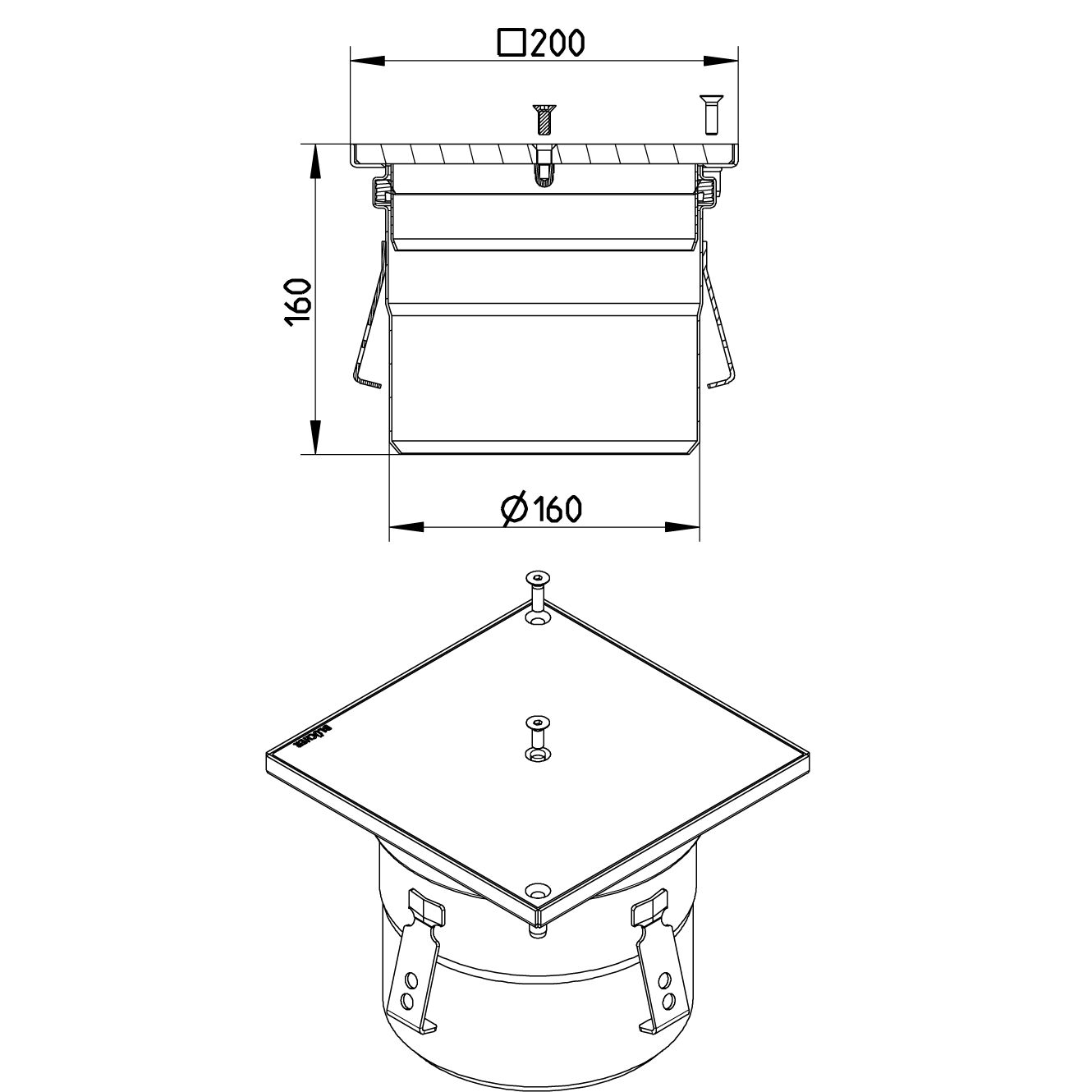

RODDING EYE FOR VACUUM HANDLE/SCREW
-With screw lock and 10mm plate
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Load Class EN1253 | M125 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 3,52 |
| Weight (lbs) | 7,76 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
