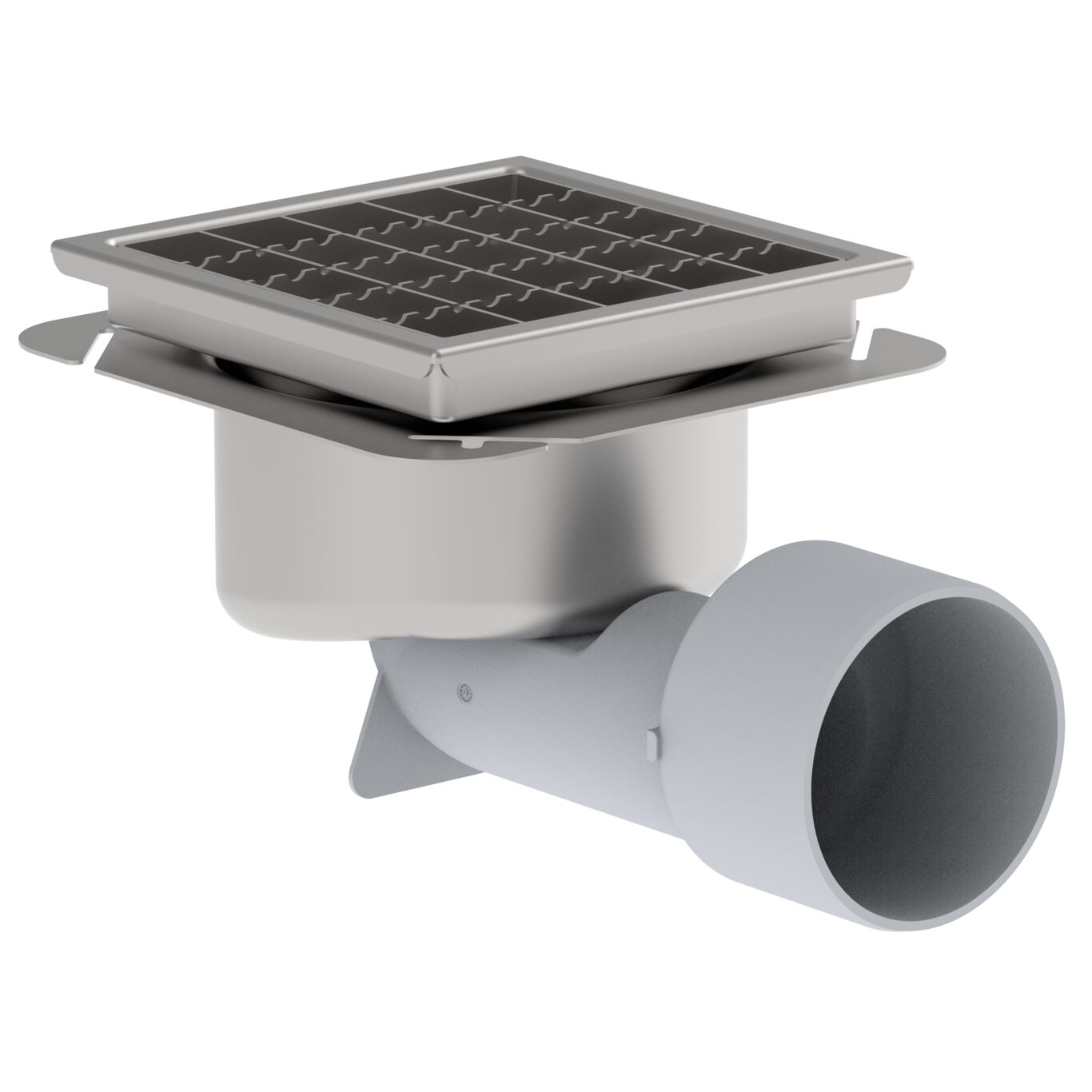

COMPACT DRAIN 200X200 - (78C.202.075.24)
×
![]()
Part Of the Series: Drain-No membrane-200
Type no.: 78C.202.075.24
EAN no.: 5705499140224
Size: 200x200

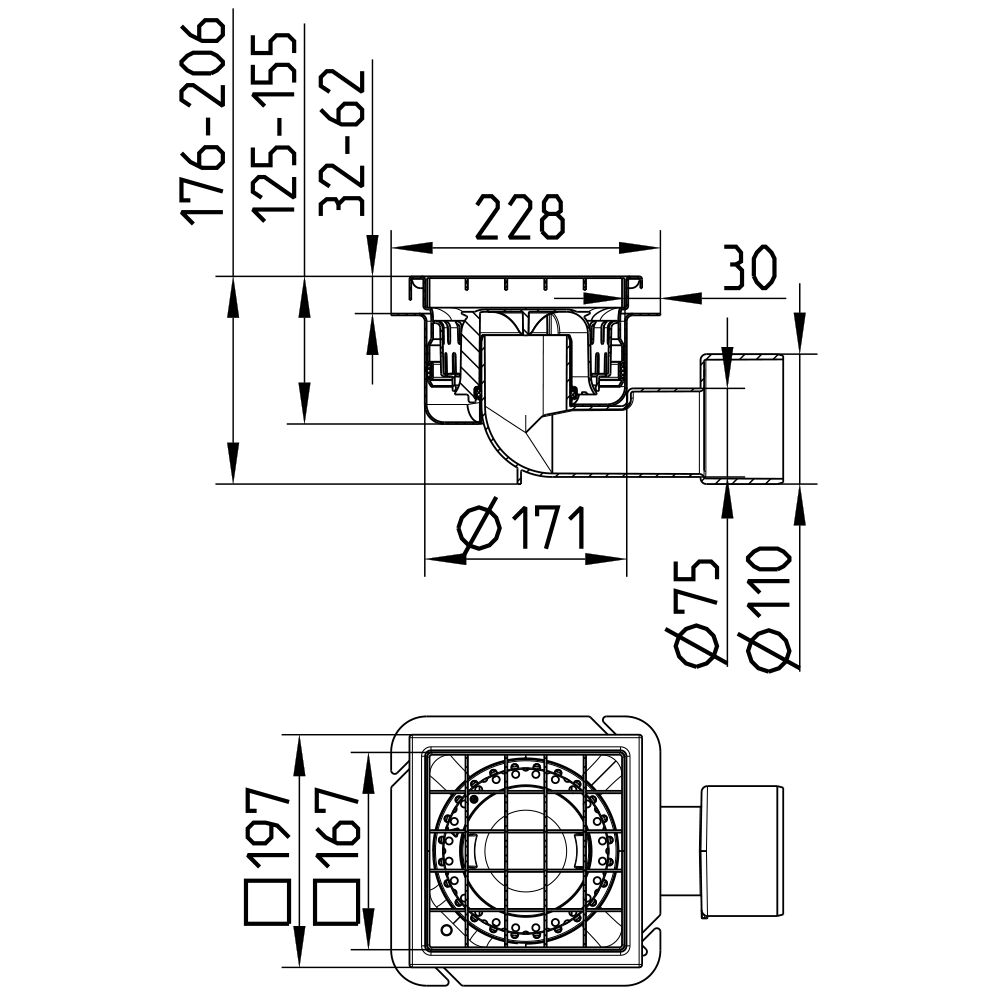

COMPACT DRAIN 200X200
-Grating: Mesh grating 33/33mm
-Floor: concrete and tiled
-Frame: 197x197mm
-Outlet: Ø75/100/110mm, vertical/horizontal
-Material: Stainless steel & ABS
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Load class EN1253(lbs) | L15 (3307) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 206 |
| Membrane Type | Liquid|No Membrane |
| Non-slip | R12 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Outlet dia. (Inch) | 3 / 4 |
| Outlet Diameter (mm) | 75 / 110 |
| Outlet Direction | Horizontal|Vertical |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 3,08 |
| Weight (lbs) | 6,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
