RODDING EYE WITH PULL NIPPLE - (244.150.110 S)
×
![]()
Part Of the Series: Rodding eye-Vinyl-155
Type no.: 244.150.110 S
EAN no.: 5705499113921
LVI no.: 3305818
Size: Ø155

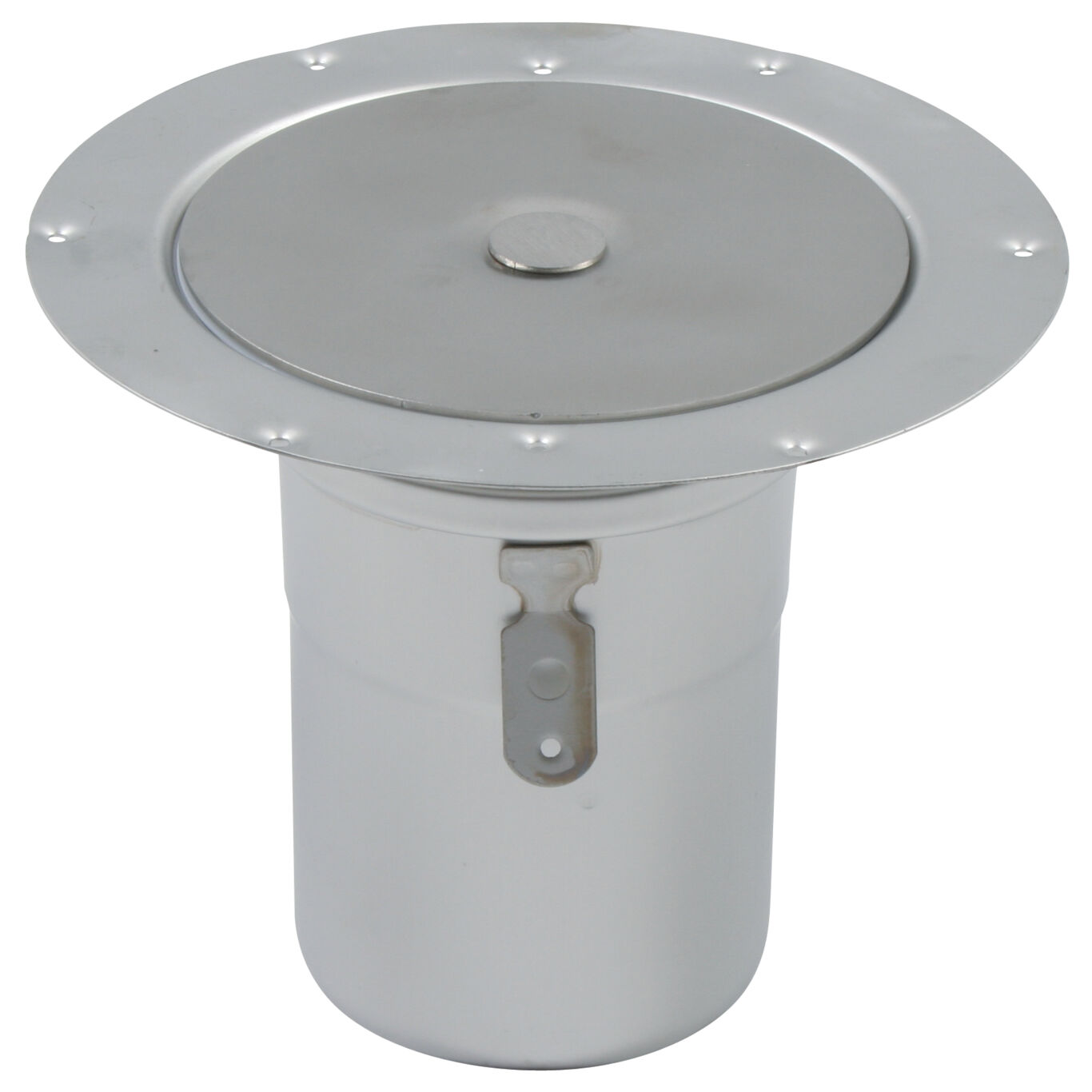

RODDING EYE WITH PULL NIPPLE
-Floor: vinyl
-Frame: Ø155mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (250) |
| Load class EN1253(lbs) | K3 (551) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 192 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 1,36 |
| Weight (lbs) | 3 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
