SLOT CHANNEL 8x1500 END OUTLET - (677AN015-00BA)
Part Of the Series: Slot channel-Liquid membrane
Type no.: 677AN015-00BA
EAN no.: 5705499128260
Size: 8x1500

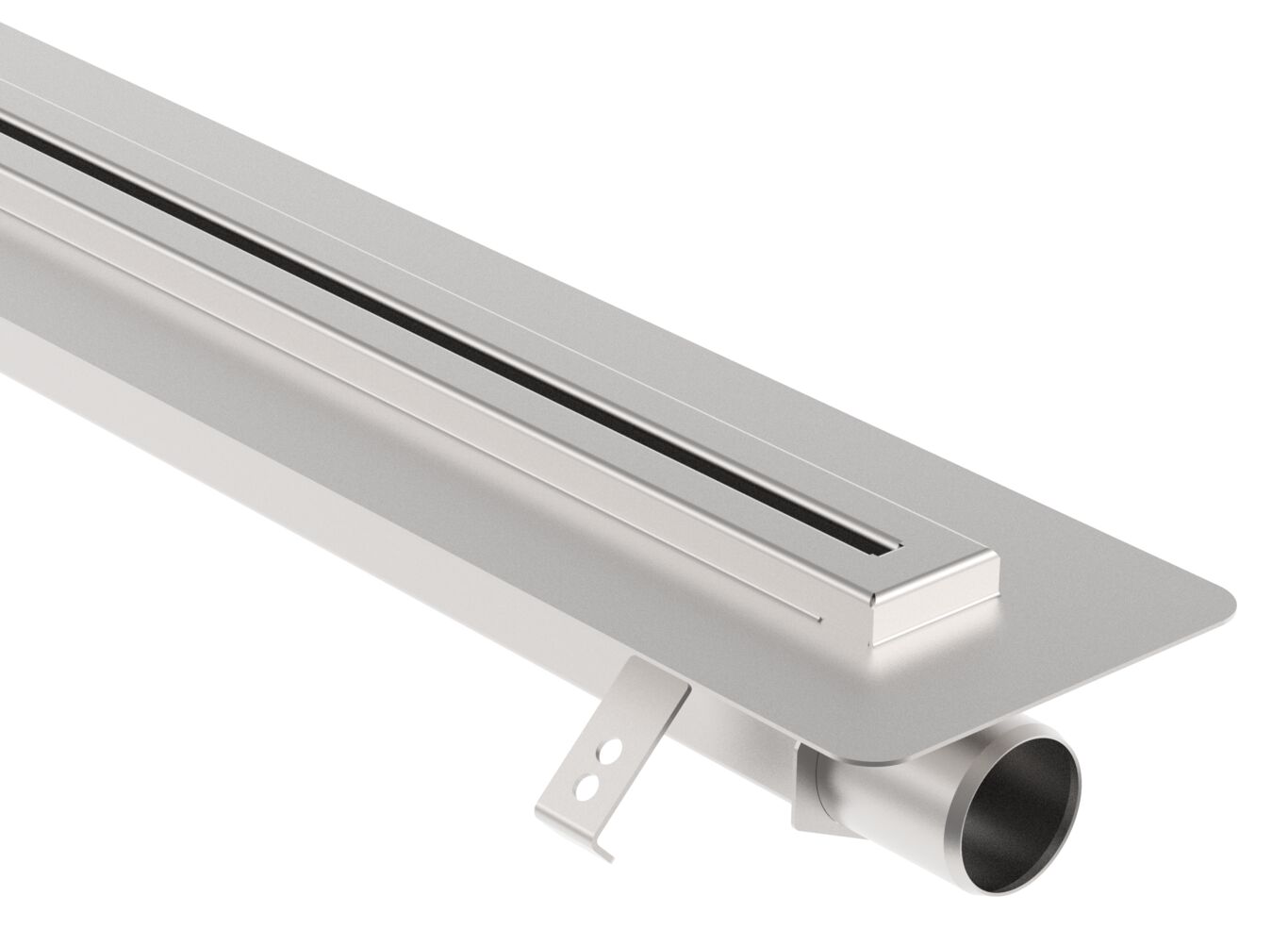

SLOT CHANNEL 8x1500 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 85 |
Outlet Box | No |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Outlet Placement | End |
Shape | Rectangular |
Size (Inch) | ⅜x59 |
Size (mm) | 8x1500 |
Weight (kg) | 6,86 |
Weight (lbs) | 15,12 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
