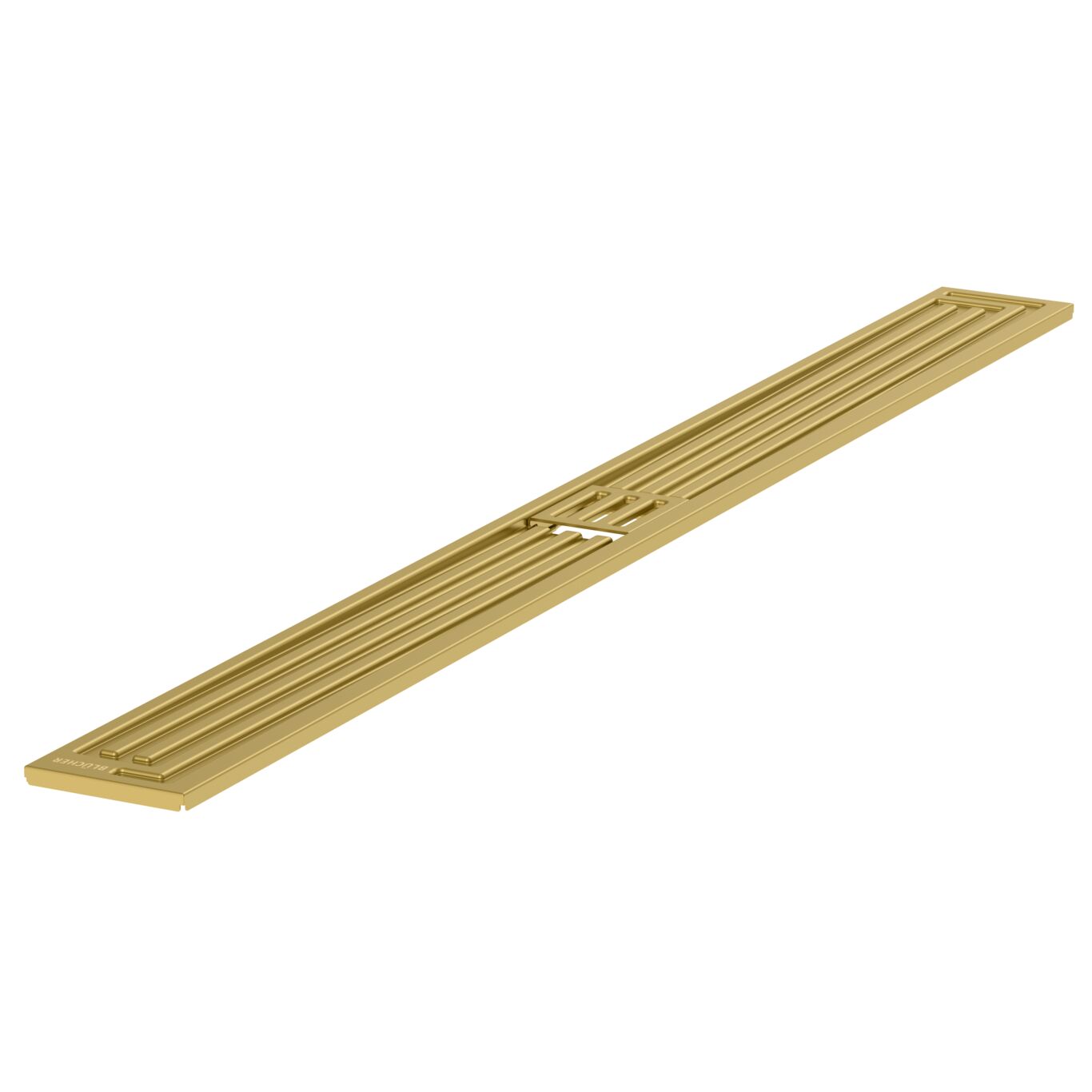

SHOWER CHANNEL ART DECO 900 - (184.090.000.10 M)
×
![]()
Part Of the Series: Shower channel-No membrane
Type no.: 184.090.000.10 M
EAN no.: 5705499140026
VVS no.: 155095209
RSK no.: 7129881
NRF no.: 3394671
Size: 75x900
SHOWER CHANNEL ART DECO 900
-For use with Art Deco accessories for membranes
-For installation along wall
-Floor: concrete and tiled
-Frame: rectangular
-Colour: Brass
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| ProductFamily | Art Deco |
| Shape | Rectangular |
| Size (Inch) | 3x35⅜ |
| Size (mm) | 75x900 |
| Weight (kg) | 0,59 |
| Weight (lbs) | 1,3 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
