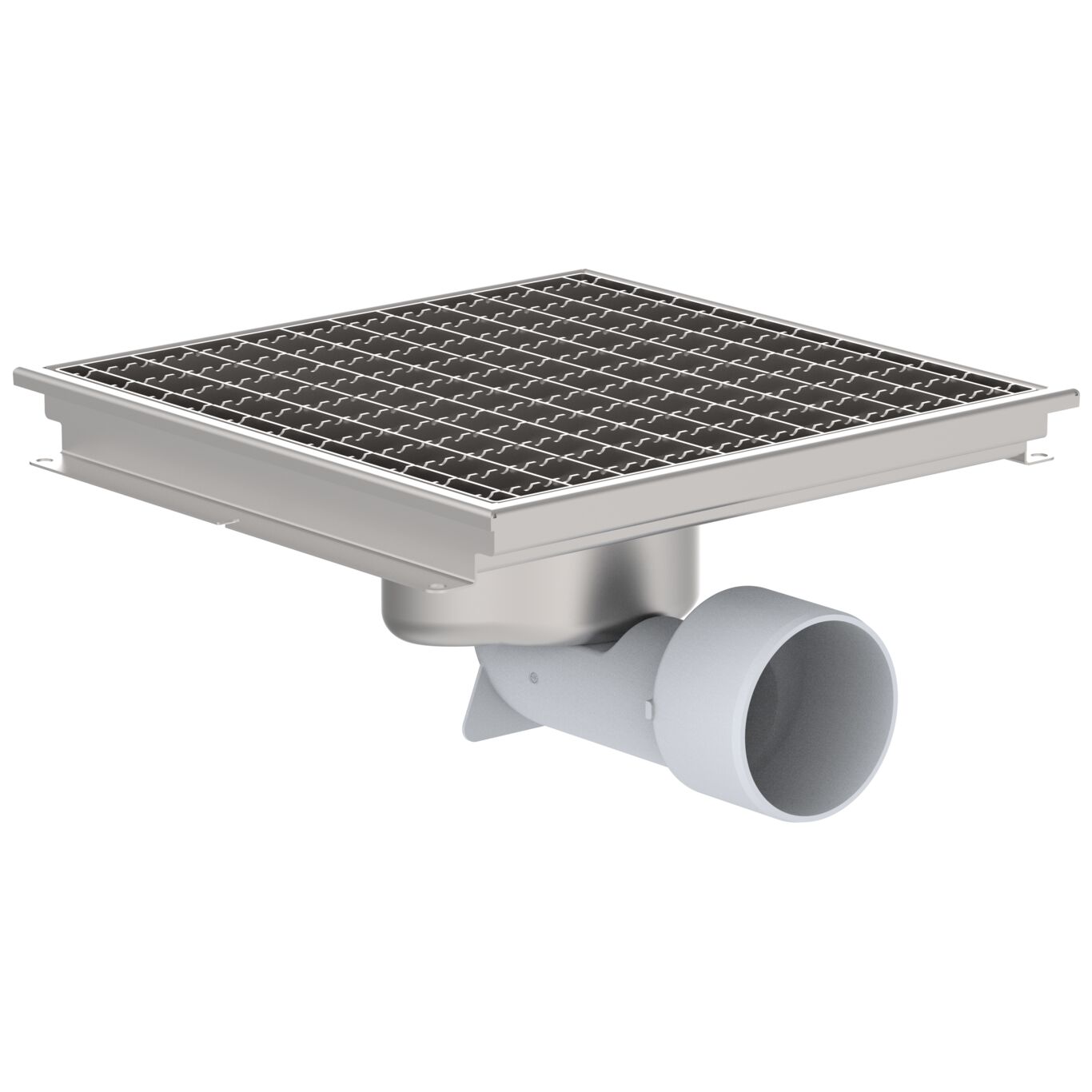

COMPACT DRAIN 400X400 - (66CFG004-05.24)
Part Of the Series: Kitchen channel-No membrane
Type no.: 66CFG004-05.24
EAN no.: 5705499140187
Size: 400x400

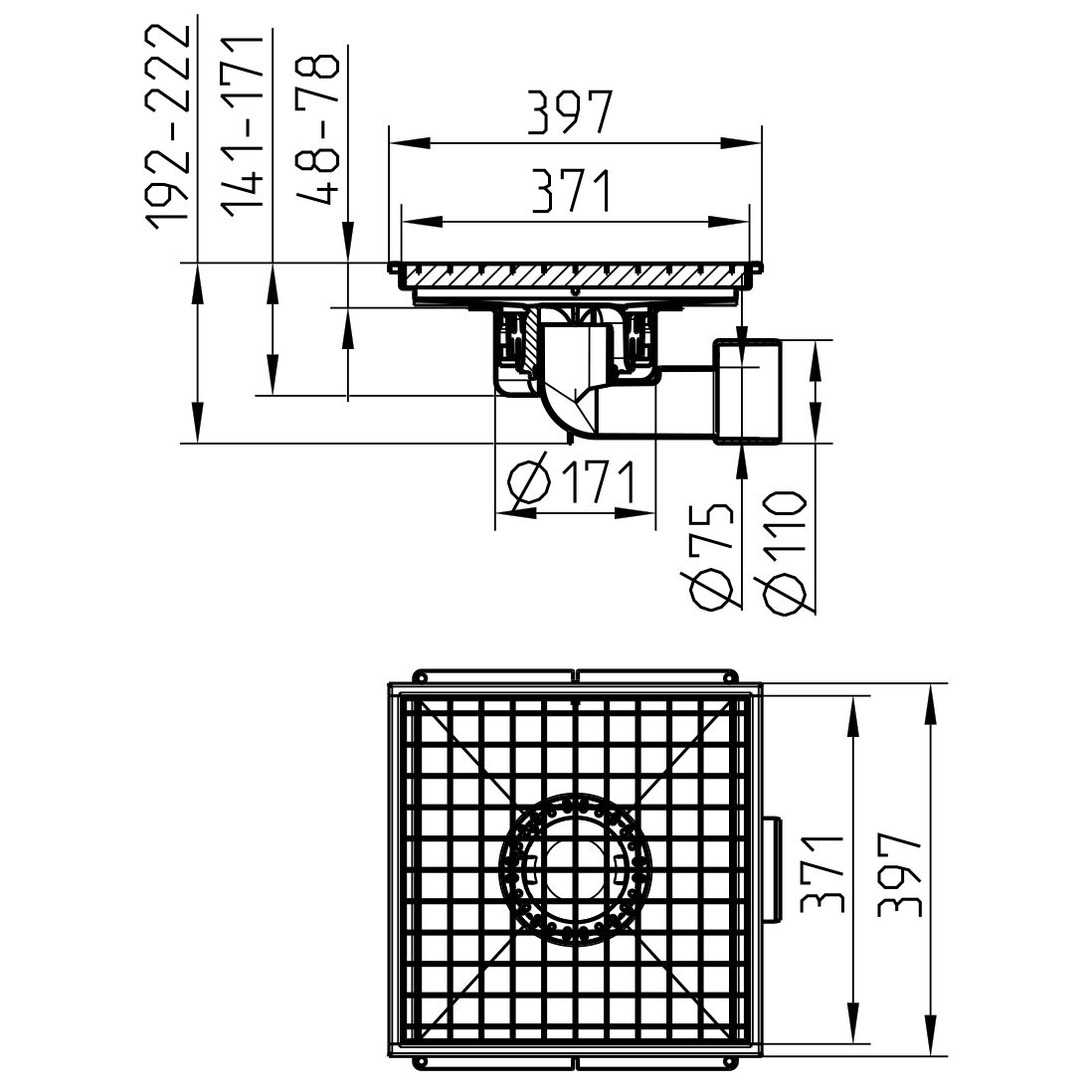

COMPACT DRAIN 400X400
-Grating: Mesh grating 33/33mm
-Floor: concrete and tiled
-Frame: 400x400mm
-Outlet: Ø75/100/110mm, vertical/horizontal
-Material: Stainless steel & ABS
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled |
Load class EN1253(lbs) | L15 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 222 |
Membrane Type | Liquid|No Membrane |
Minimum Height (mm) | 192 |
Non-slip | R12 |
Number of Inlets | 0 |
Number of inlets (Inch) | 0 |
Outlet dia. (Inch) | 3 / 4 |
Outlet Diameter (mm) | 75 / 110 |
Outlet Direction | Horizontal|Vertical |
Shape | Square |
Size (Inch) | 15¾x15¾ |
Size (mm) | 400x400 |
Weight (kg) | 5,00 |
Weight (lbs) | 11,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
