DRAIN SQUARE FOR POOL SIDE - (445.150.110 S)
×
![]()
Part Of the Series: Drain-No membrane-Rectangular
Type no.: 445.150.110 S
EAN no.: 5705499113990

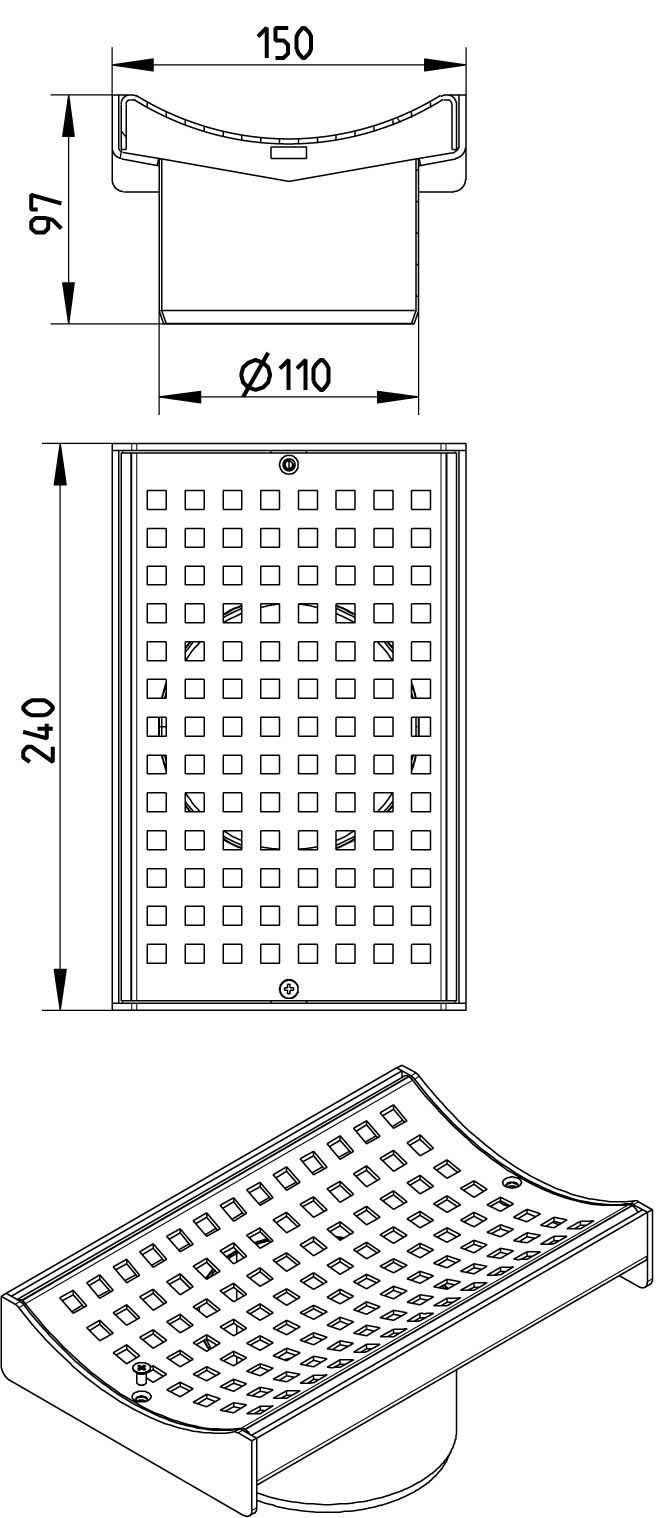

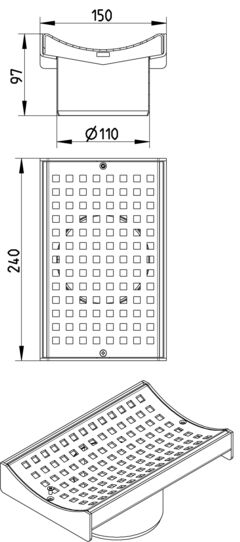

Size: 150x240

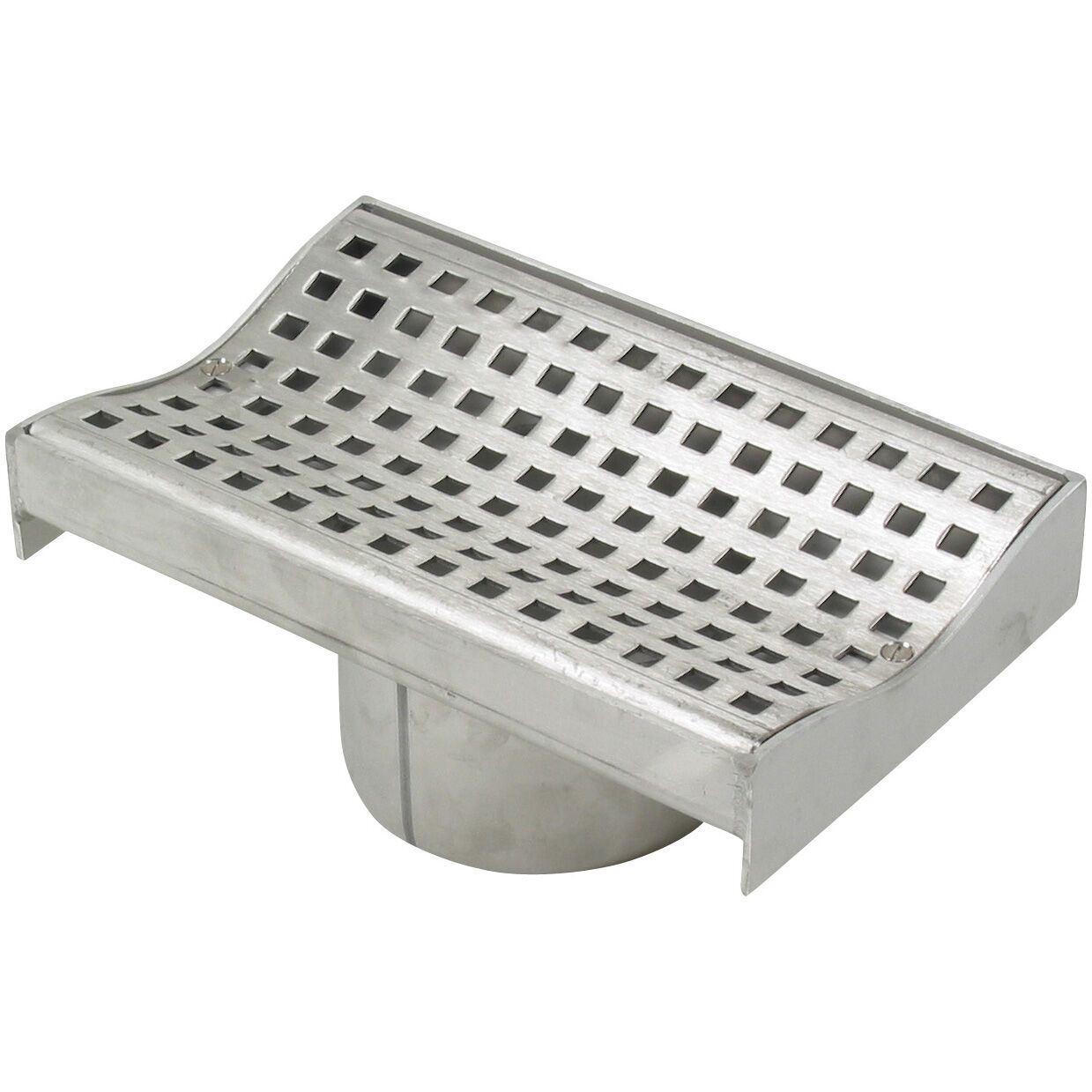

DRAIN SQUARE FOR POOL SIDE
-Floor: concrete and tiled
-No membrane, frame: 150x240mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 97 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (Inch) | 5⅞x9½ |
| Size (mm) | 150x240 |
| Weight (kg) | 2,00 |
| Weight (lbs) | 4,41 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
