LINEA CHANNEL END PLATE Ø50 150x85 - (670.001.015.85)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.001.015.85
EAN no.: 5705499001679
VVS no.: 221811582

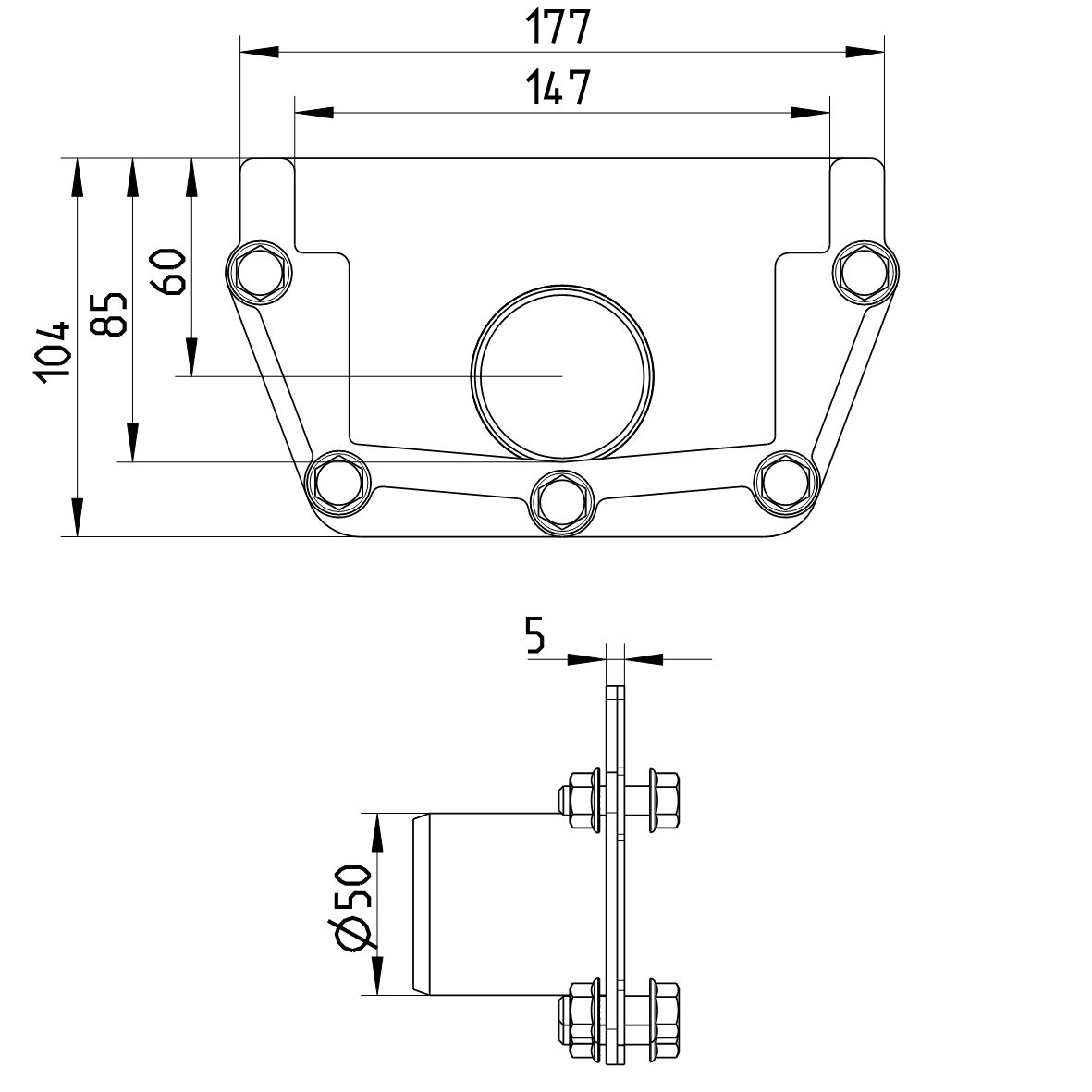

LINEA CHANNEL END PLATE Ø50 150x85
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 2,92kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 104 |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Weight (kg) | 0,57 |
| Weight (lbs) | 1.26 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
