LINEA CHANNEL 150x500 END OUTLET - (670.900.015.55 S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.900.015.55 S
EAN no.: 5705499001709
VVS no.: 221811660
NRF no.: 1396063
Size: 150x500

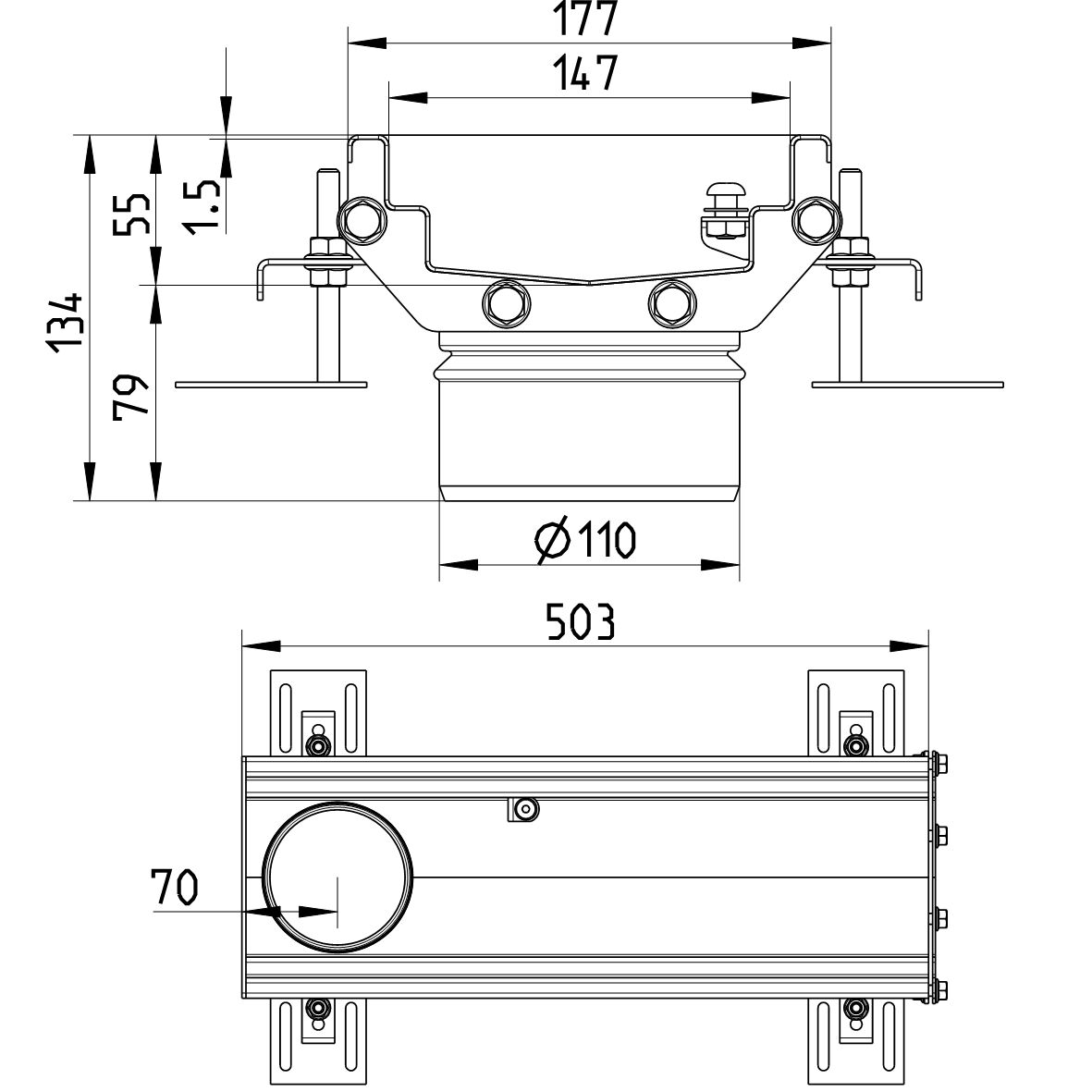

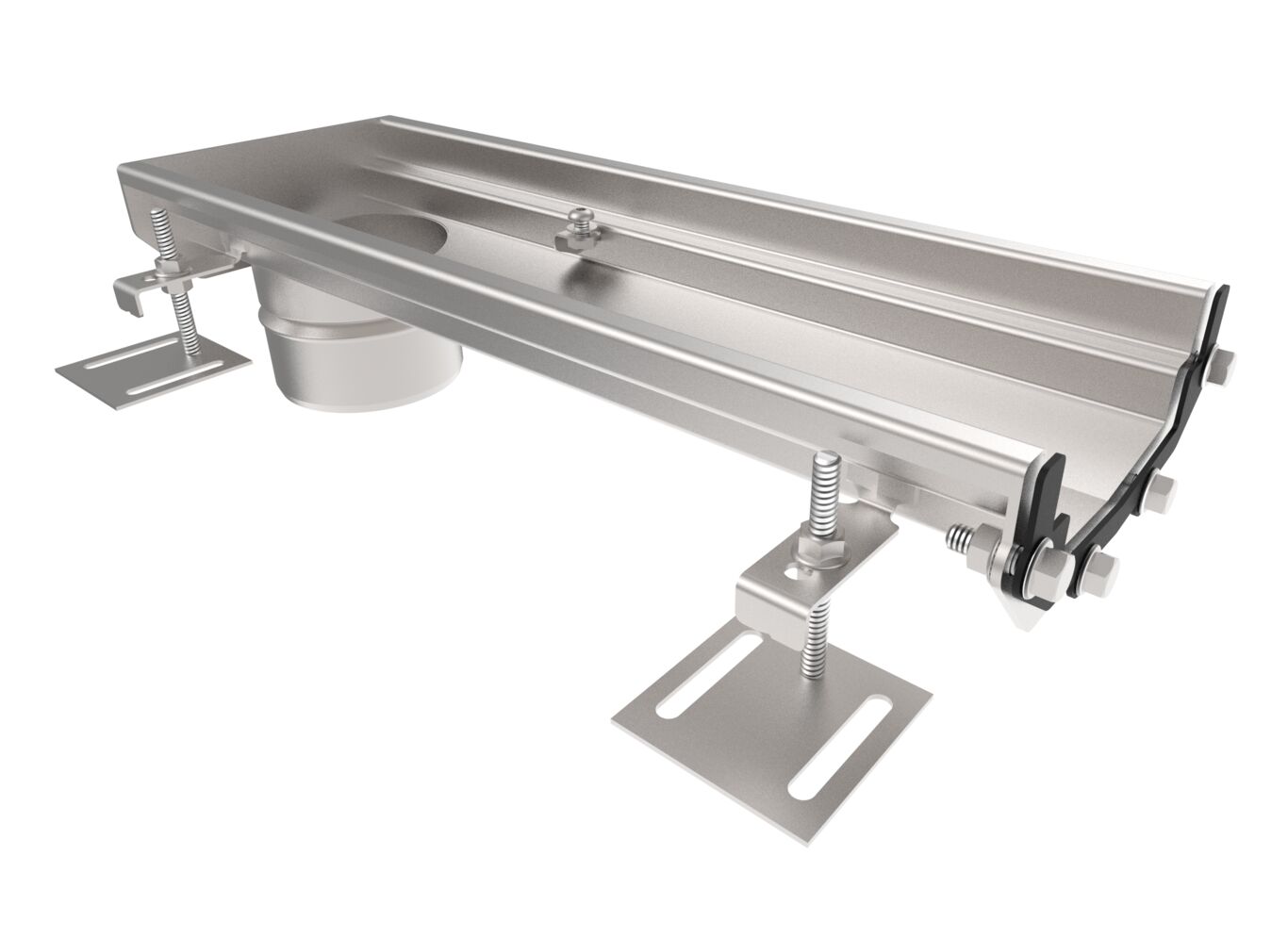

LINEA CHANNEL 150x500 END OUTLET
-With screw lock
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 134 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| ProductFamily | LINEA |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 2,63 |
| Weight (lbs) | 5.79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
