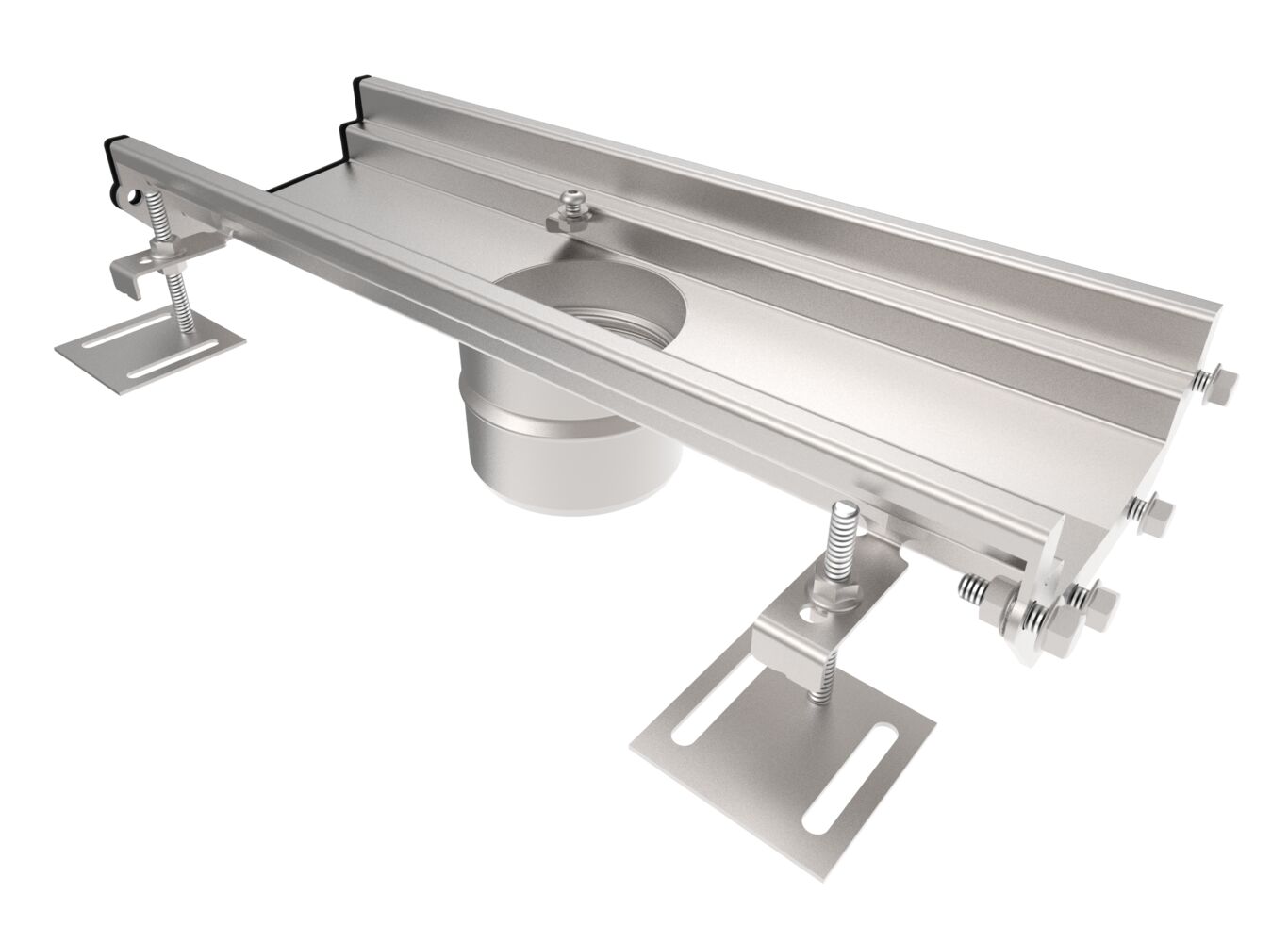

LINEA CHANNEL 150x500 CENTER OUTLET - (670.910.015.55)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.910.015.55
EAN no.: 5705499001730
VVS no.: 221811480

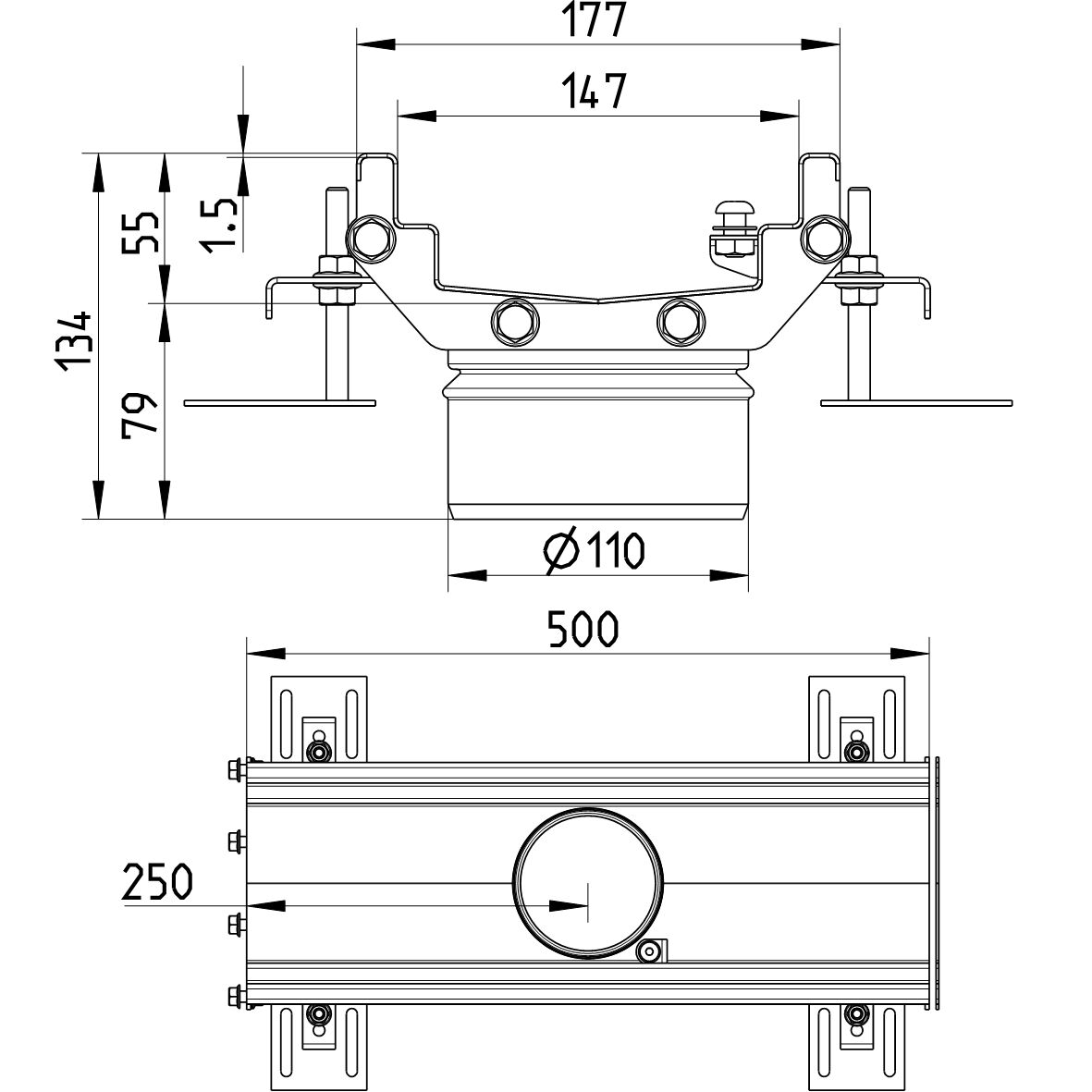

Size: 150x500
LINEA CHANNEL 150x500 CENTER OUTLET
-With screw lock
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 134 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 2,54 |
| Weight (lbs) | 5.59 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
