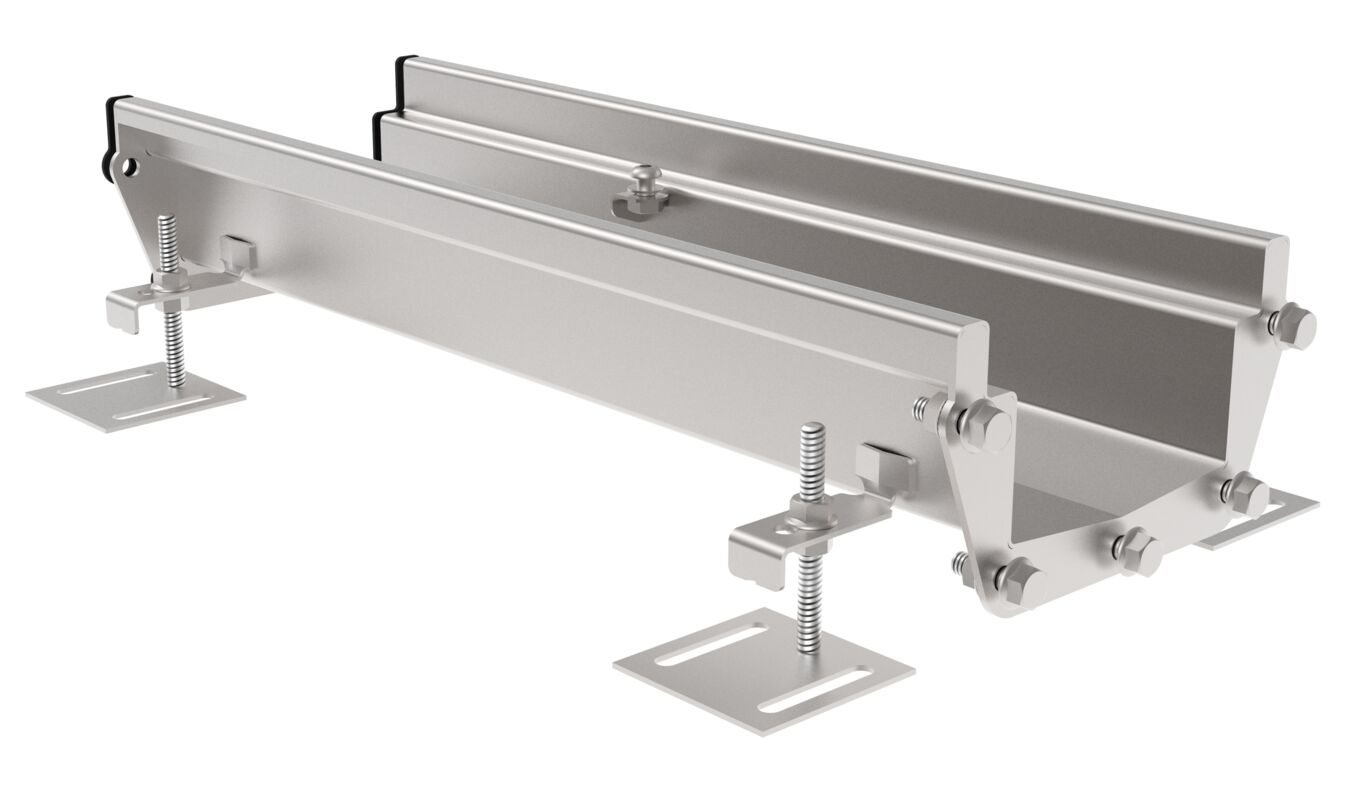

LINEA CHANNEL 150x500 - (670.050.015.85)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.050.015.85
EAN no.: 5705499001457
VVS no.: 221811012
Size: 150x500
LINEA CHANNEL 150x500
-With screw lock
-No membrane
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 14,16kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 104 |
| Outlet Box | No |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 2,76 |
| Weight (lbs) | 6.08 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
