HYGIENICPRO CHANNEL 150x3000 CENTER OUTLET - (676CC030-15EF)
Part Of the Series: Channel-No membrane
Type no.: 676CC030-15EF
EAN no.: 5705499136852
VVS no.: 221801230
LVI no.: 3305673
Size: 150x3000

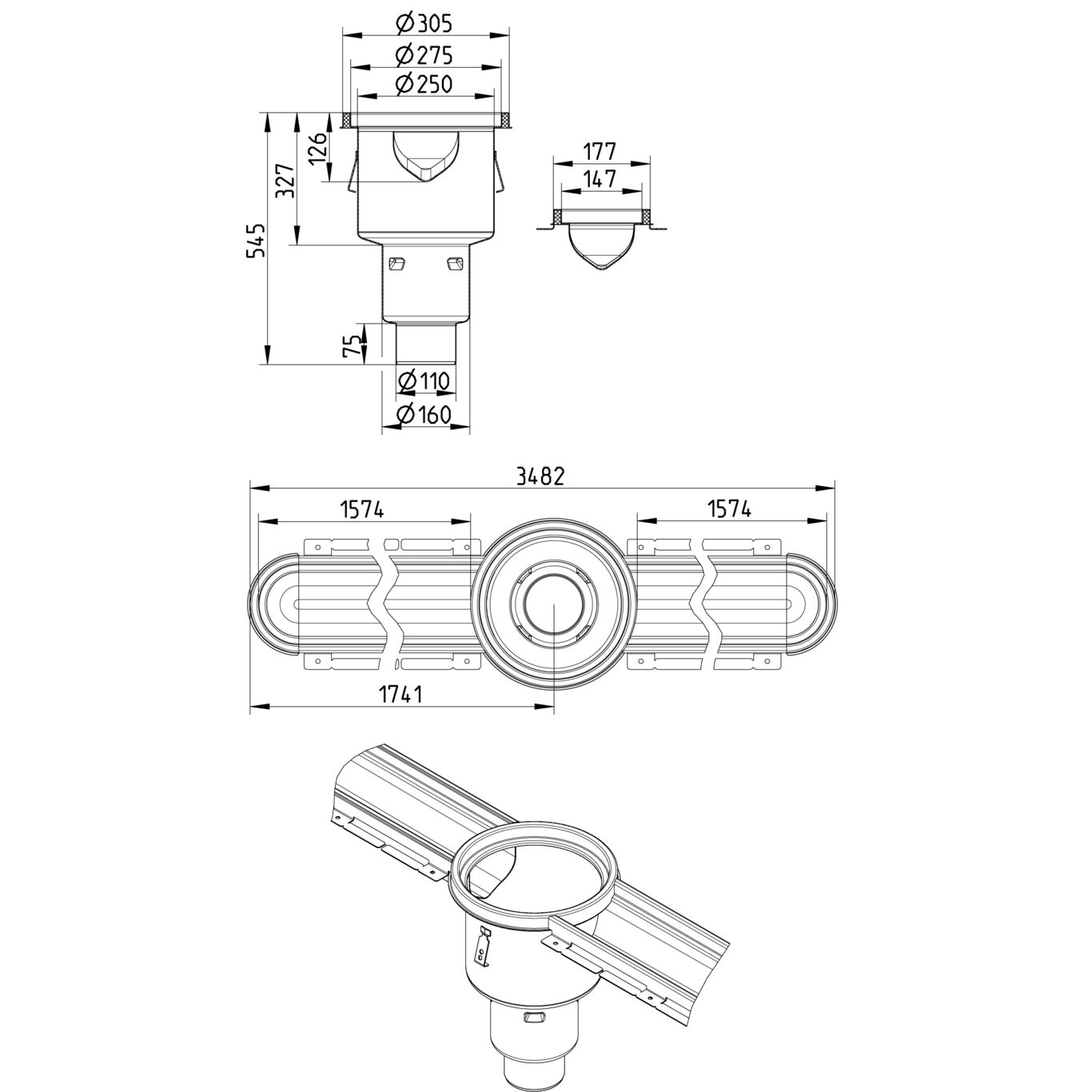

HYGIENICPRO CHANNEL 150x3000 CENTER OUTLET
-High model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 545 |
Outlet Box | Yes |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (Inch) | 5⅞x118⅛ |
Size (mm) | 150x3000 |
Weight (kg) | 27,60 |
Weight (lbs) | 60,85 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
