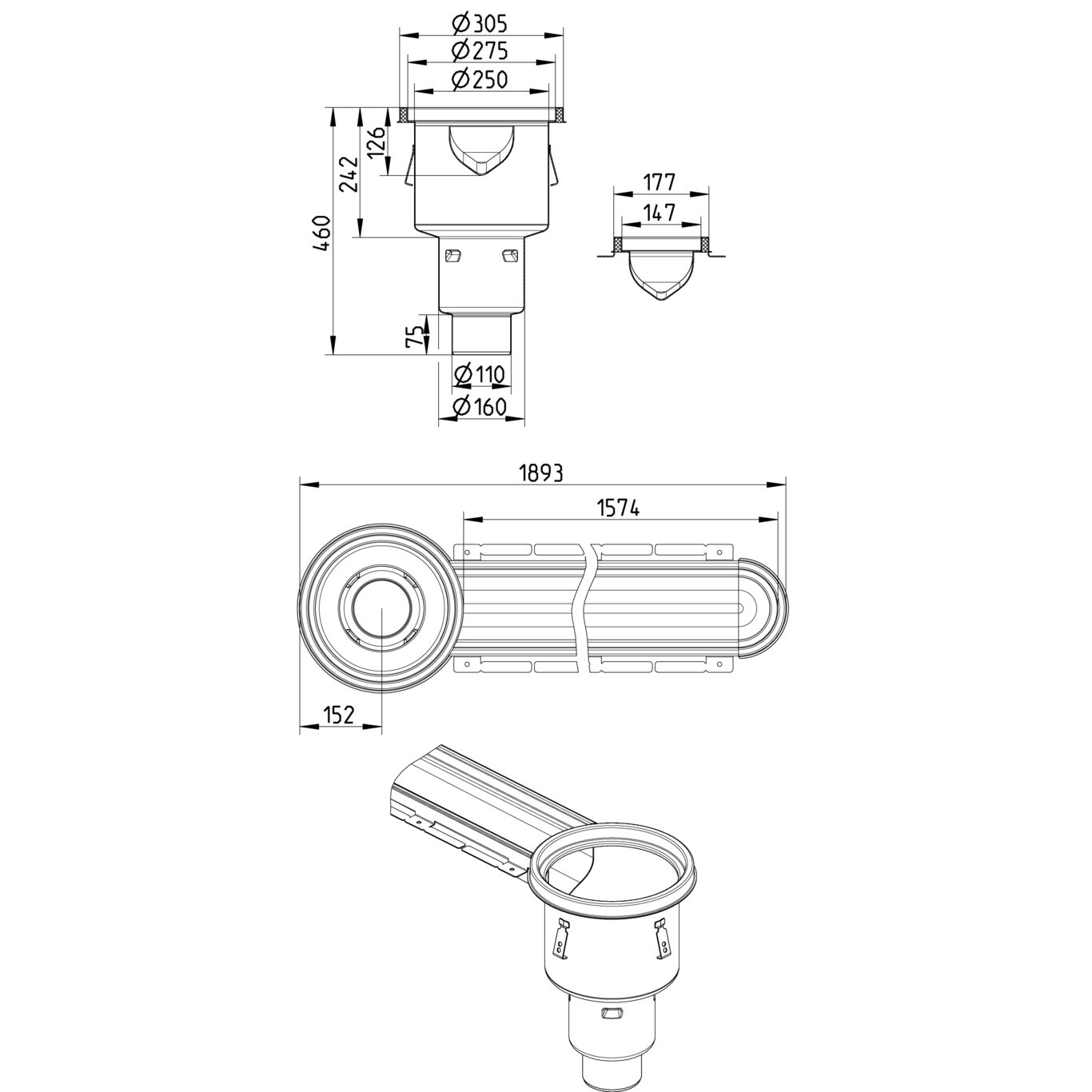

HYGIENICPRO CHANNEL 150x1500 END OUTLET - (676CC015-00DF S)

Part Of the Series: Channel-No membrane

Type no.: 676CC015-00DF S

EAN no.: 5705499135640

LVI no.: 3305630

Size: 150x1500

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Minimum Height (mm) 460
Outlet Box Yes
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (Inch) 5⅞x59
Size (mm) 150x1500
Weight (kg) 16,96
Weight (lbs) 37,39
