REMOVABLE MULTI WATER TRAP - (503.000.110)
×
![]()
Part Of the Series: Water trap-110
Type no.: 503.000.110
EAN no.: 5705499118735
VVS no.: 153415566
RSK no.: 7120100
NRF no.: 3394757

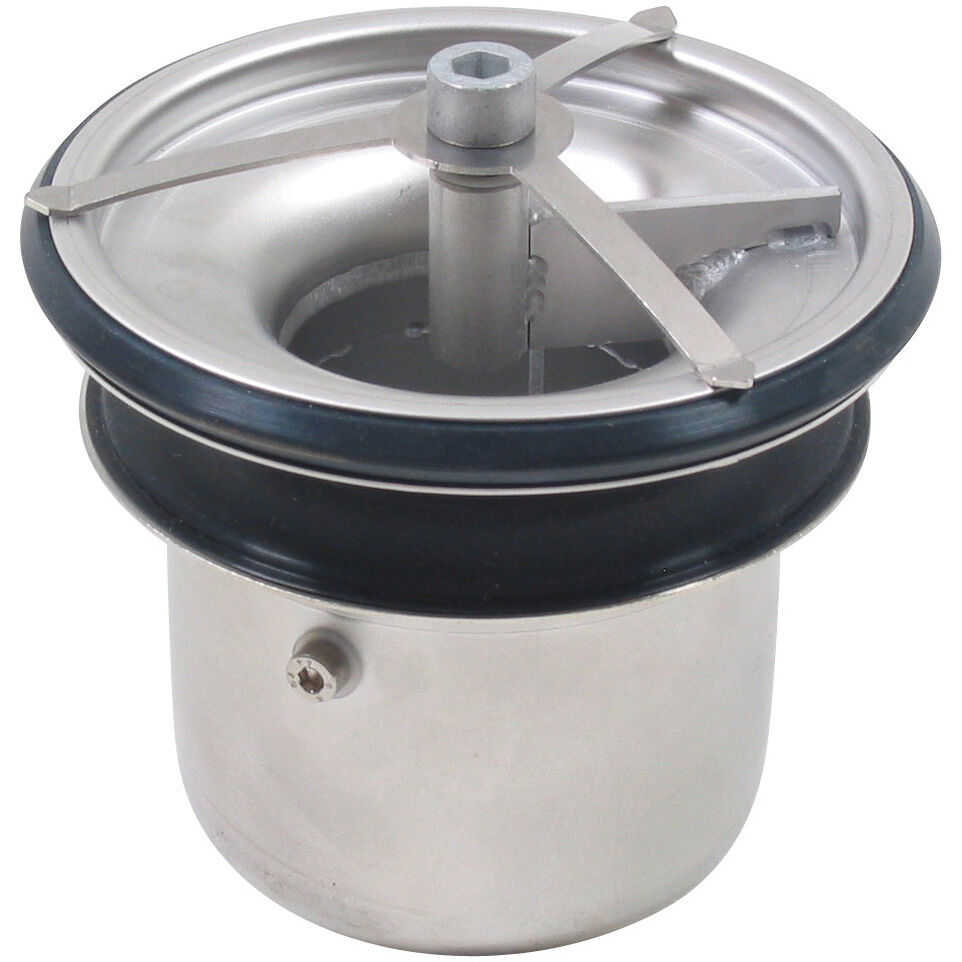

REMOVABLE MULTI WATER TRAP

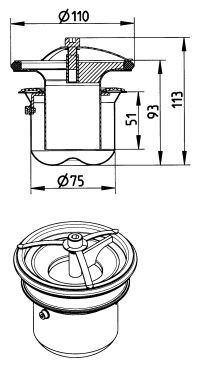

-Water seal height = 51mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.3 |
| Minimum Height (mm) | 113 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 51 |
| Weight (kg) | 0,40 |
| Weight (lbs) | 0,88 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
