STRAIGHT PIPE WITH ONE SOCKET - (811.500.160 S)
Part Of the Series: Straight pipe
Type no.: 811.500.160 S
EAN no.: 5705499401004
VVS no.: 160132550
NRF no.: 2172503
LVI no.: 0250240

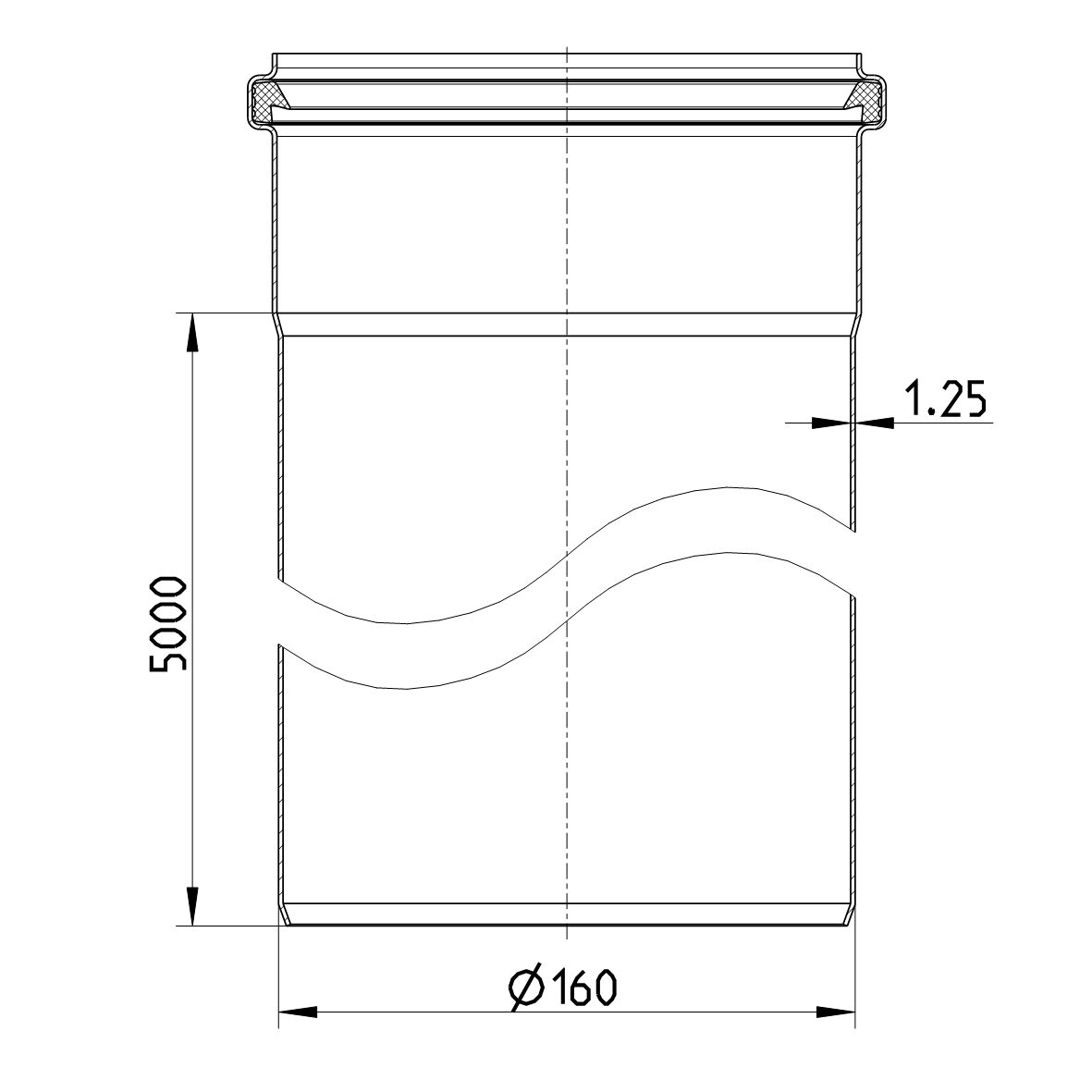

STRAIGHT PIPE WITH ONE SOCKET
-Length: 5000mm
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 16' 5" |
Length of straight pipe (mm) | 5000 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 25,69 |
Weight (lbs) | 56,64 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432 DK - VA 2.12/19350 HACCP Food Safety Programme - Australasia FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev4, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA
