STRAIGHT PIPE WITH ONE SOCKET - (811.400.075 S)
Part Of the Series: Straight pipe
Type no.: 811.400.075 S
EAN no.: 5705499400885
VVS no.: 160124540
LVI no.: 0250139

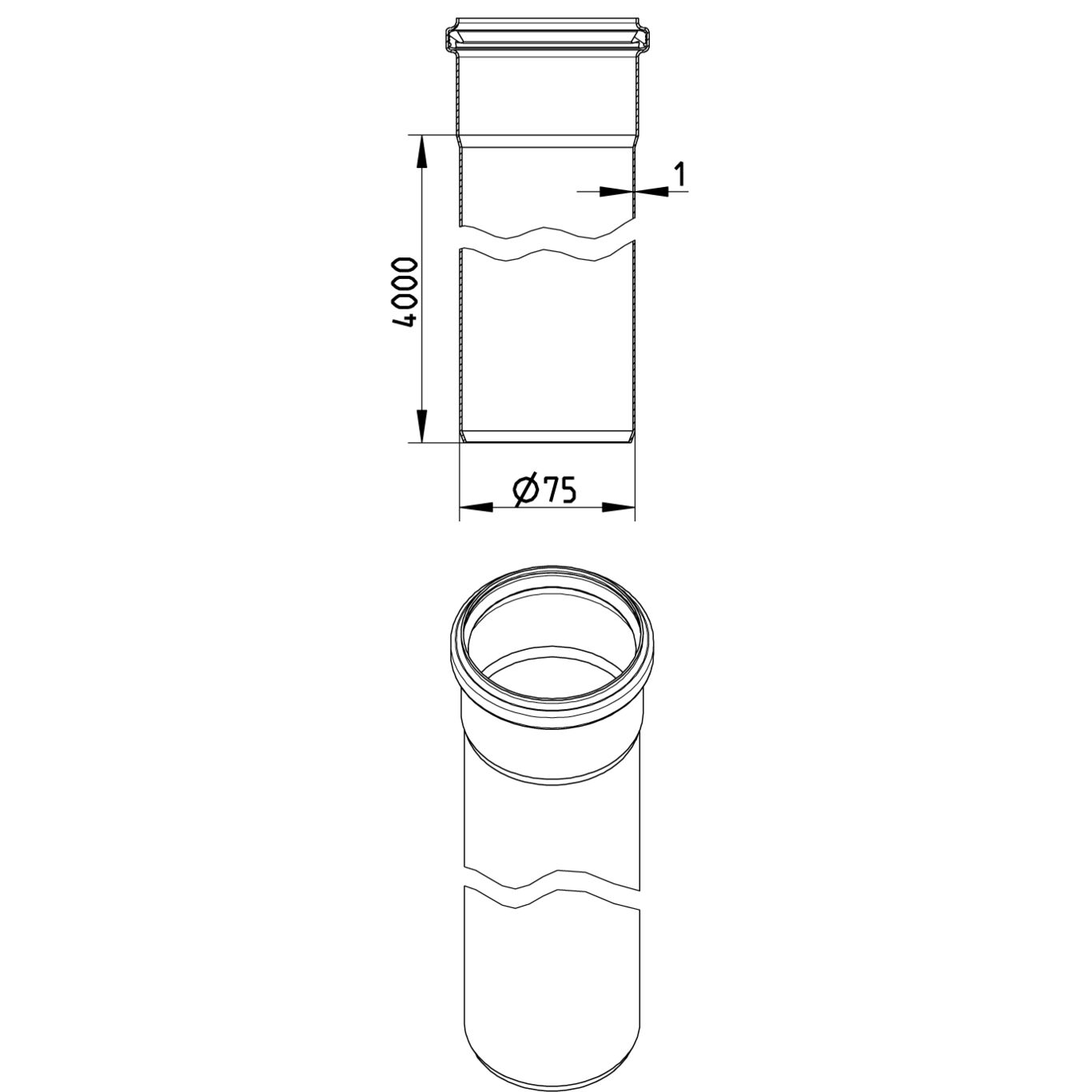

STRAIGHT PIPE WITH ONE SOCKET
-Length: 4000mm
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 13' 1" |
Length of straight pipe (mm) | 4000 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 7,46 |
Weight (lbs) | 16,89 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA
