STRAIGHT PIPE WITH ONE SOCKET - (811.200.125 S)
Part Of the Series: Straight pipe
Type no.: 811.200.125 S
EAN no.: 5705499408317
VVS no.: 160130500
RSK no.: 1551164
NRF no.: 2168941
LVI no.: 0256006

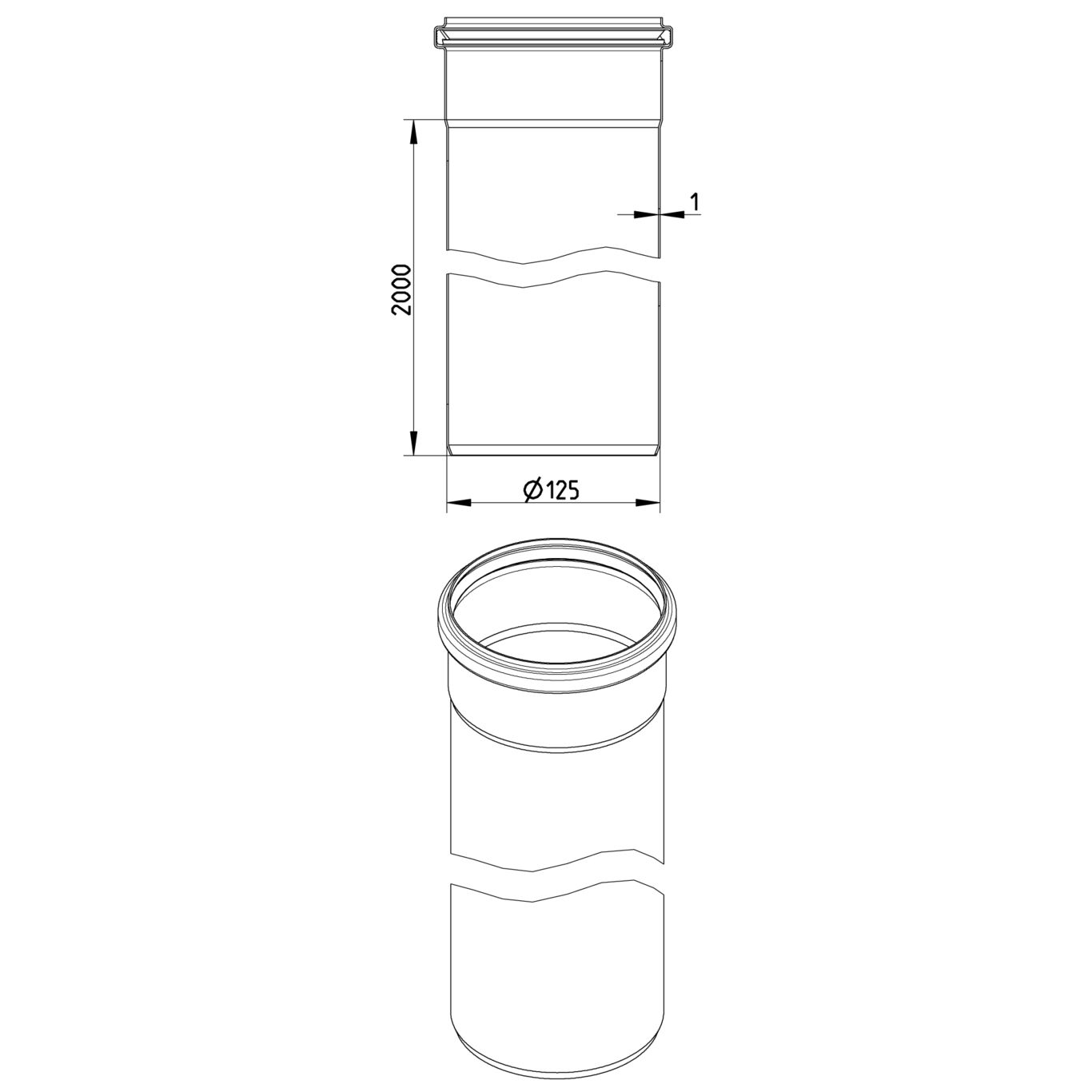

STRAIGHT PIPE WITH ONE SOCKET
-Length: 2000mm
-Diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 6' 7" |
Length of straight pipe (mm) | 2000 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 5 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 6,40 |
Weight (lbs) | 14,11 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19350 NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22
