STRAIGHT PIPE WITH ONE SOCKET - (811.100.160 S)
Part Of the Series: Straight pipe
Type no.: 811.100.160 S
EAN no.: 5705499400595
VVS no.: 160132400
RSK no.: 1550362
NRF no.: 2172473
LVI no.: 0250235

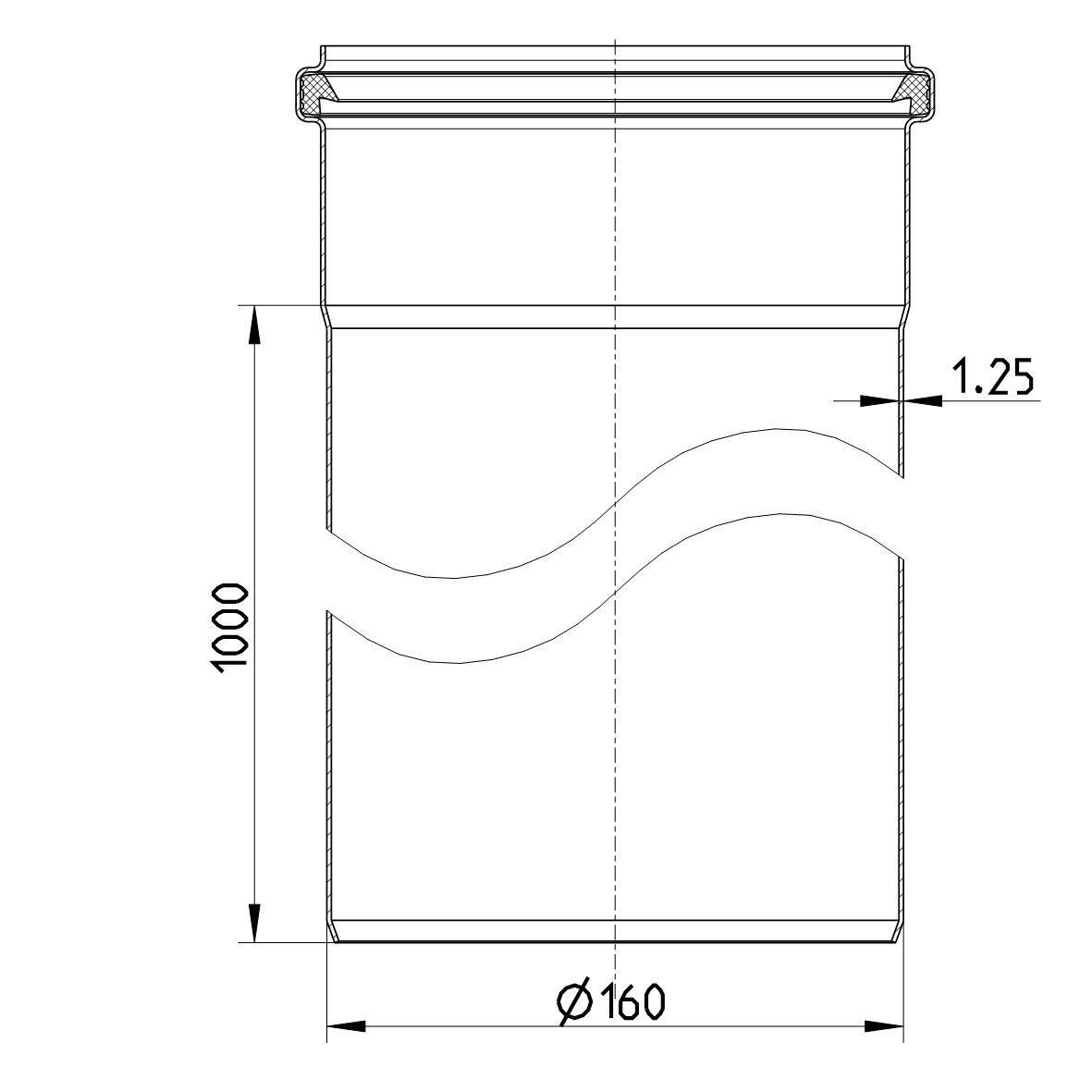

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 3' 3" |
Length of straight pipe (mm) | 1000 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 5,48 |
Weight (lbs) | 12,08 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19350 AUS - WMKT00204 - 24 FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev4, Sanitary discharge pipes PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains ABS - LD1716353-PDA Lloyds Register LR22419510TA
