STRAIGHT PIPE WITH ONE SOCKET - (811.075.200 S)
Part Of the Series: Straight pipe
Type no.: 811.075.200 S
EAN no.: 5705499411546
VVS no.: 160134375
NRF no.: 2172469
LVI no.: 0250284

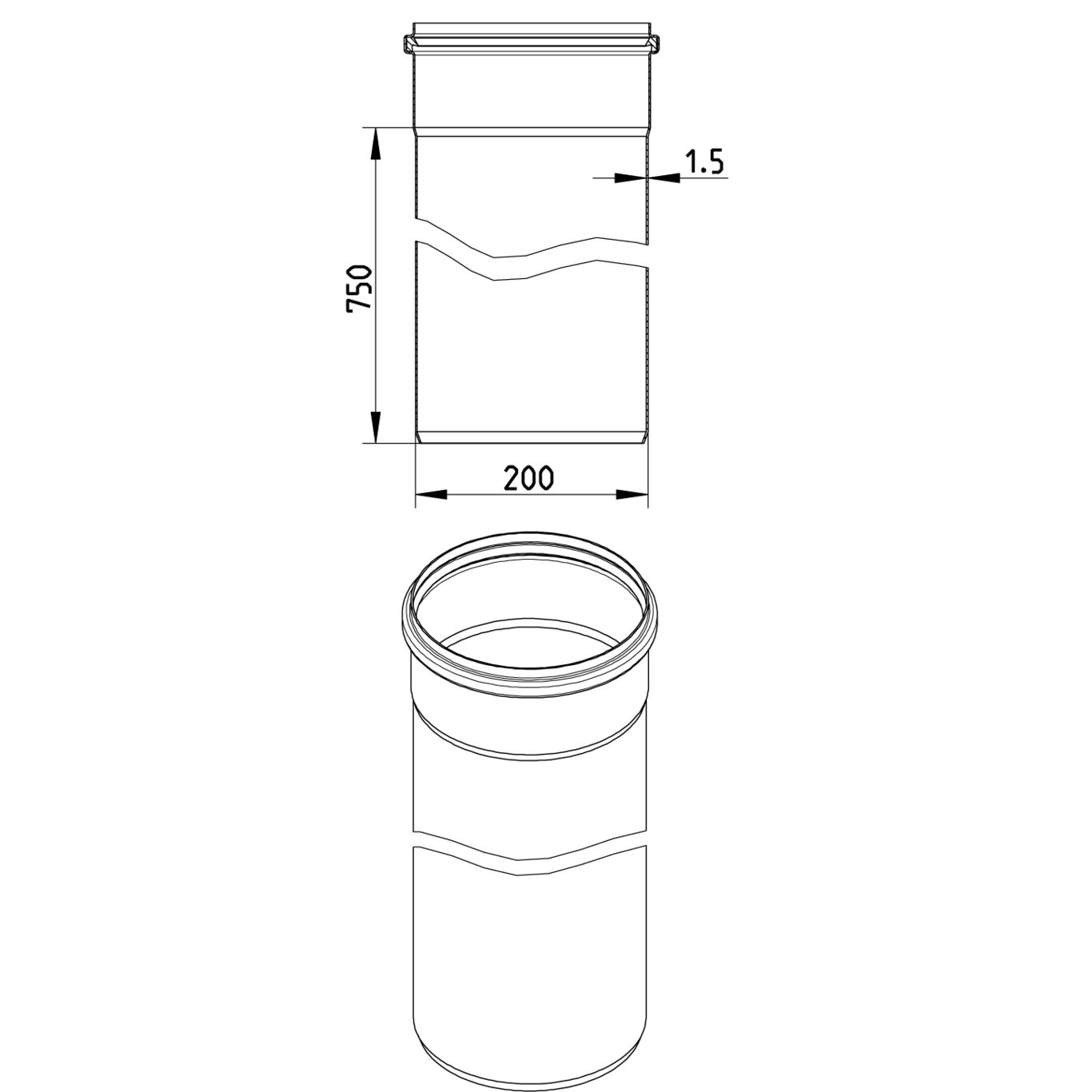

STRAIGHT PIPE WITH ONE SOCKET
-Length: 750mm
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 2' 6" |
Length of straight pipe (mm) | 750 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 8 |
Outlet Diameter (mm) | 200 |
Weight (kg) | 6,47 |
Weight (lbs) | 14,26 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19350 DE - LGA Certificate 57214035 a Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM
