STRAIGHT PIPE WITH ONE SOCKET - (811.050.110 S)
Part Of the Series: Straight pipe
Type no.: 811.050.110 S
EAN no.: 5705499400410
VVS no.: 160128350
RSK no.: 1550247
NRF no.: 2170686
LVI no.: 0250183

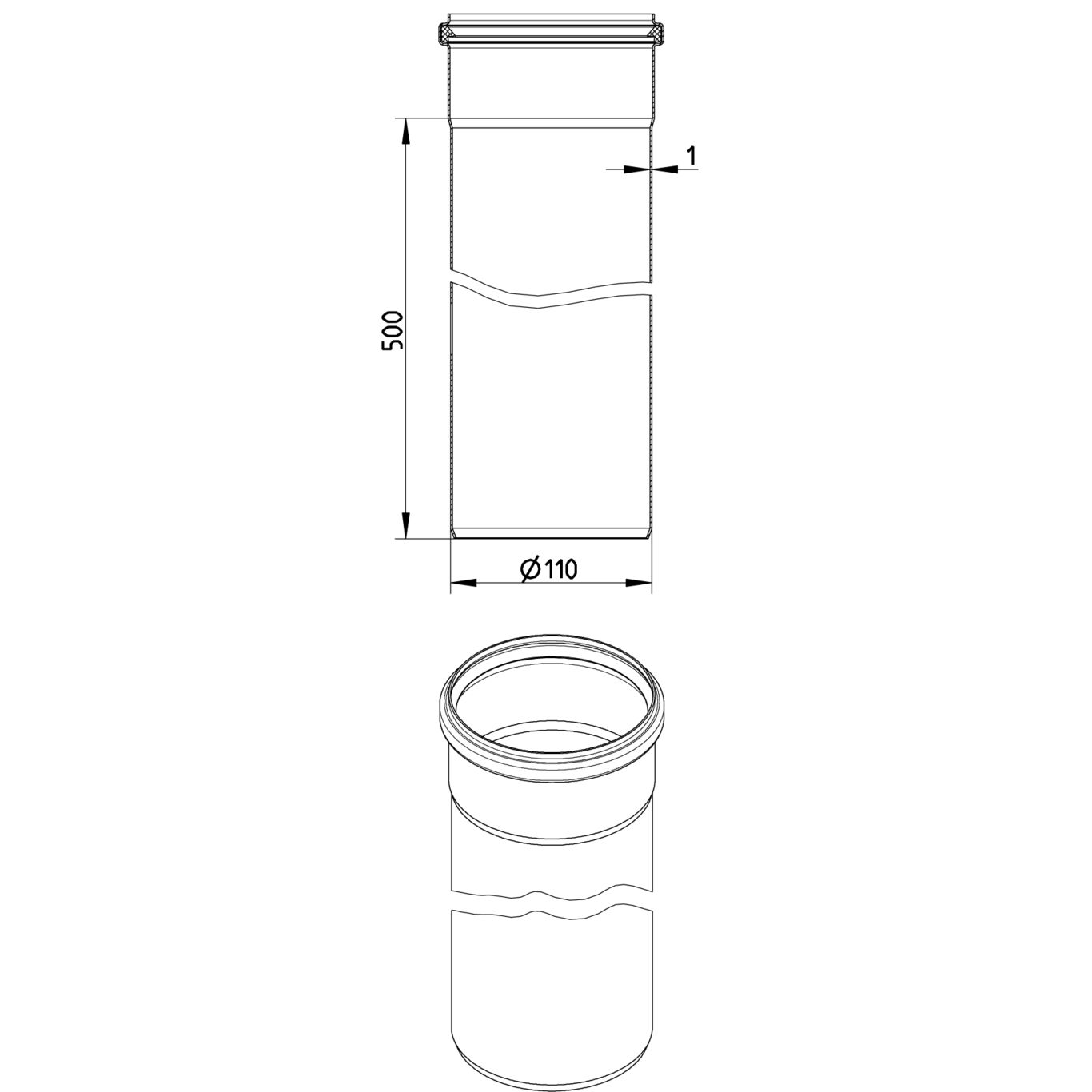

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 1' 8" |
Length of straight pipe (mm) | 500 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,50 |
Weight (lbs) | 3,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia AUS - WMKT00204 - 24 DK - VA 2.12/19350 HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe
