STRAIGHT PIPE WITH ONE SOCKET - (811.050.040 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.050.040 S
EAN no.: 5705499412680
VVS no.: 160120350
RSK no.: 1552752
NRF no.: 2172458
LVI no.: 0250033

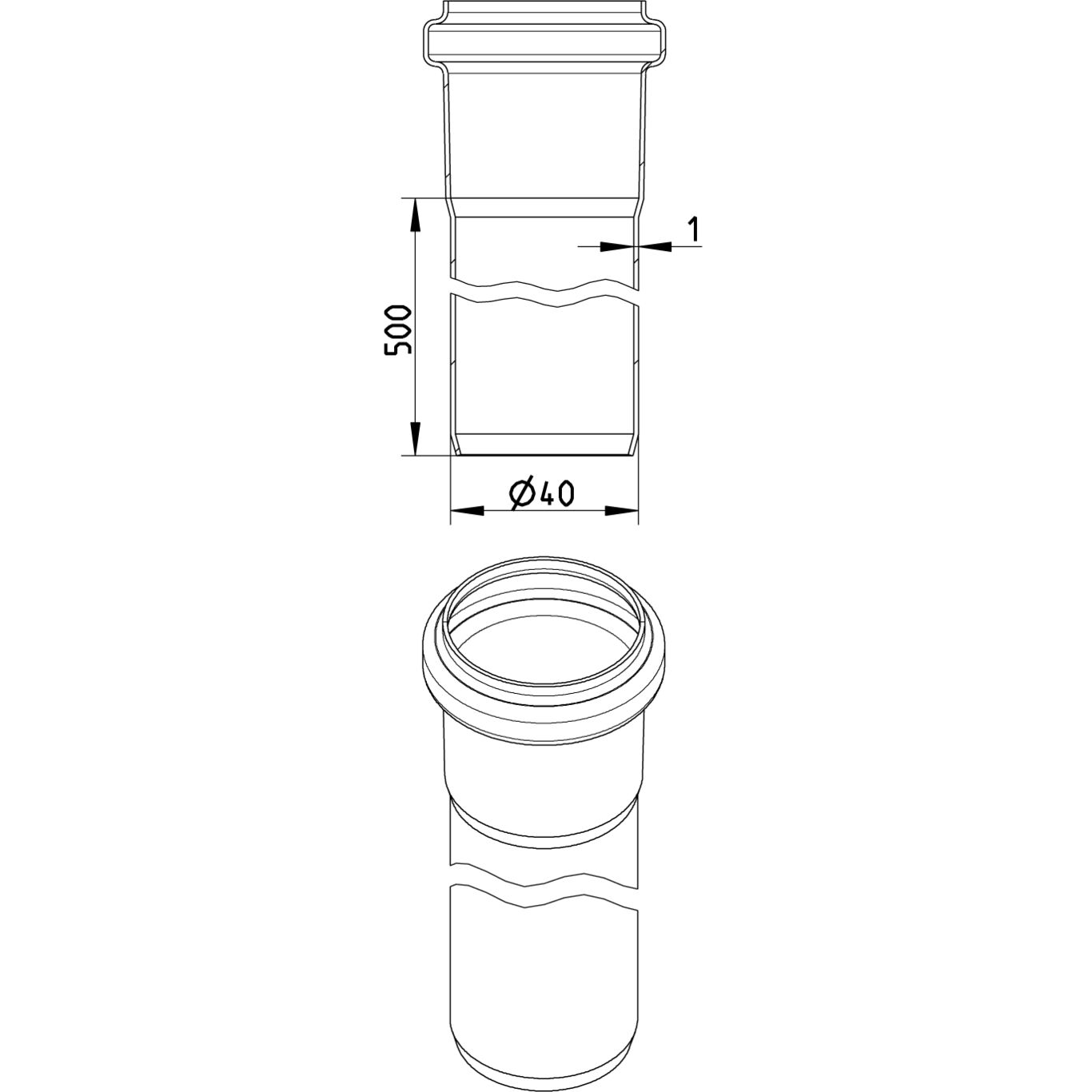

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 1' 8" |
| Length of straight pipe (mm) | 500 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,68 |
| Weight (lbs) | 1,5 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
Declaration of Perfomance BS-EN1124-1-002
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Australasia
Declaration of Perfomance EN1124-1-001
DE - TÜV Rheinland R 60178453 0001
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 Achilles Certificate - 46702 DNV - TAP0000023-rev5, Sanitary discharge pipes
