STRAIGHT PIPE WITH ONE SOCKET - (811.025.110 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.110 S
EAN no.: 5705499400335
VVS no.: 160128325
RSK no.: 1550246
NRF no.: 2170683
LVI no.: 0250182

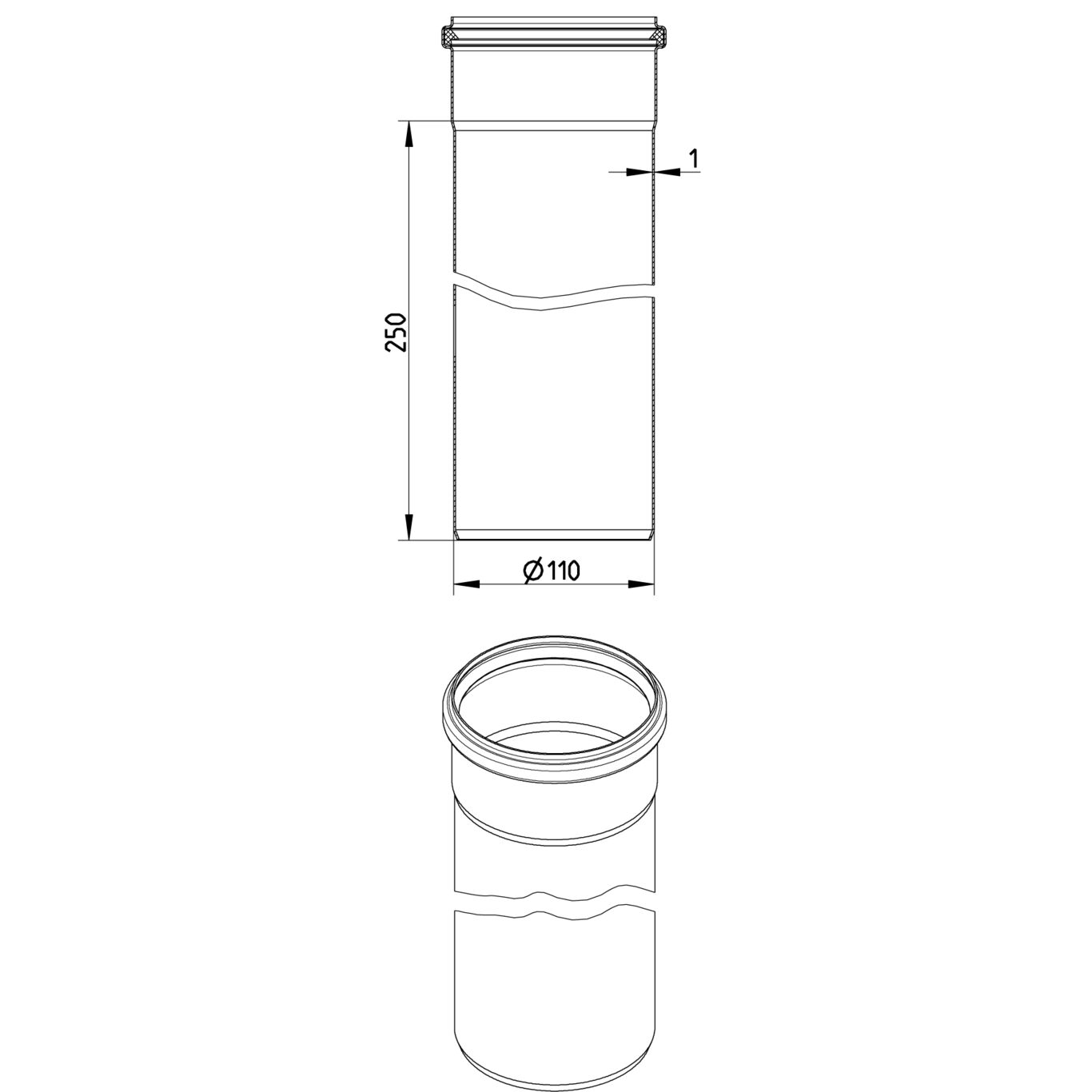

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 0' 10" |
| Length of straight pipe (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,87 |
| Weight (lbs) | 1,92 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
DE - TÜV Rheinland R 60178453 0001
TÜRK LOYDU - 25041616077231247
DK - VA 2.12/19349 EuroPipe DS432
Declaration of Perfomance EN1124-1-001
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002 Lloyds Register LR22419510TA_02 RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings
