STRAIGHT PIPE WITH ONE SOCKET - (811.025.040)
Part Of the Series: Straight pipe
Type no.: 811.025.040
EAN no.: 5705499412659
VVS no.: 160120025
RSK no.: 1552776
NRF no.: 2170932
LVI no.: 0240032

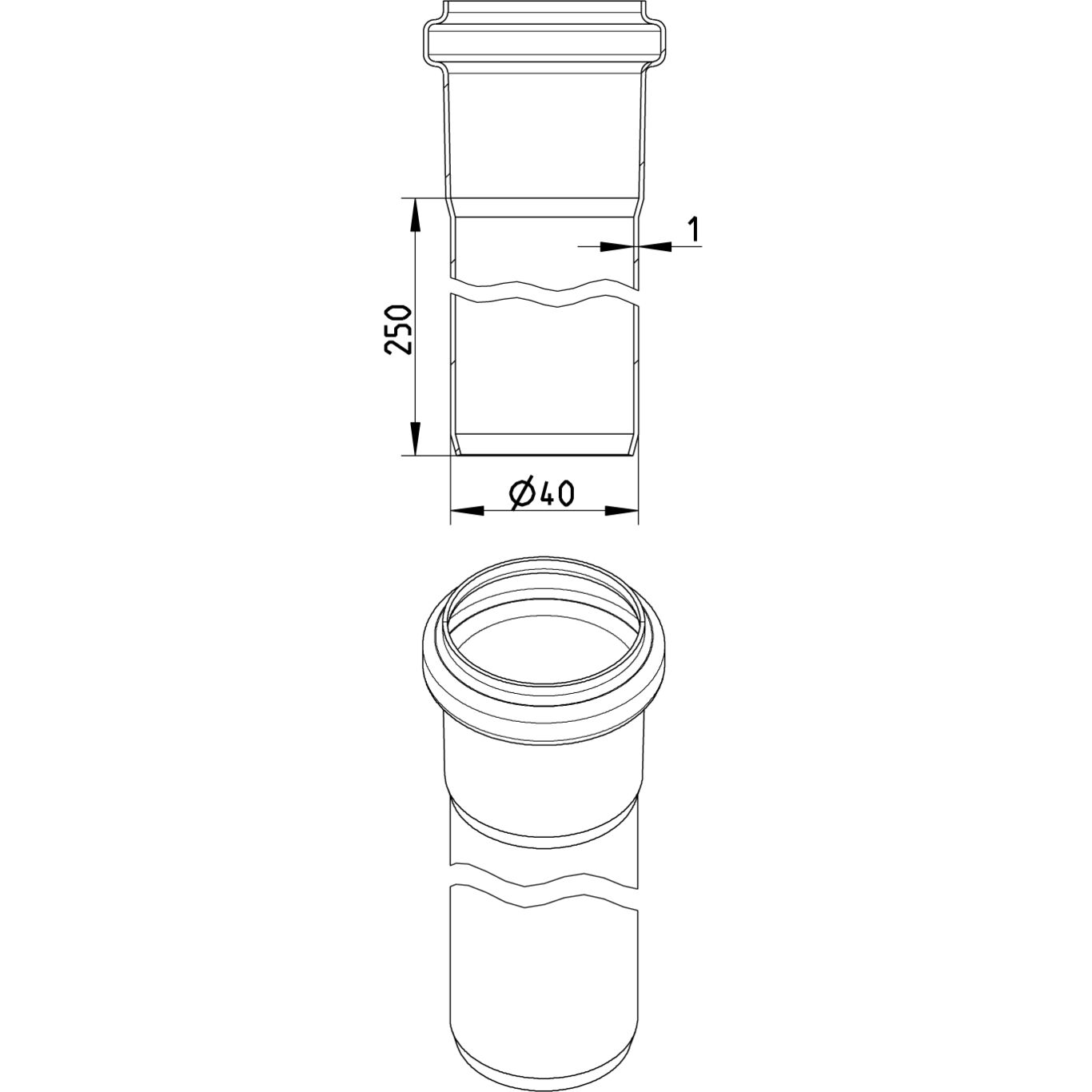

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Length of straight pipe (Inch) | 0' 10" |
Length of straight pipe (mm) | 250 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 1½ |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,40 |
Weight (lbs) | 0,88 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432 DE - LGA Certificate 57214035 a FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA ABS - 23-2329630-PDA
