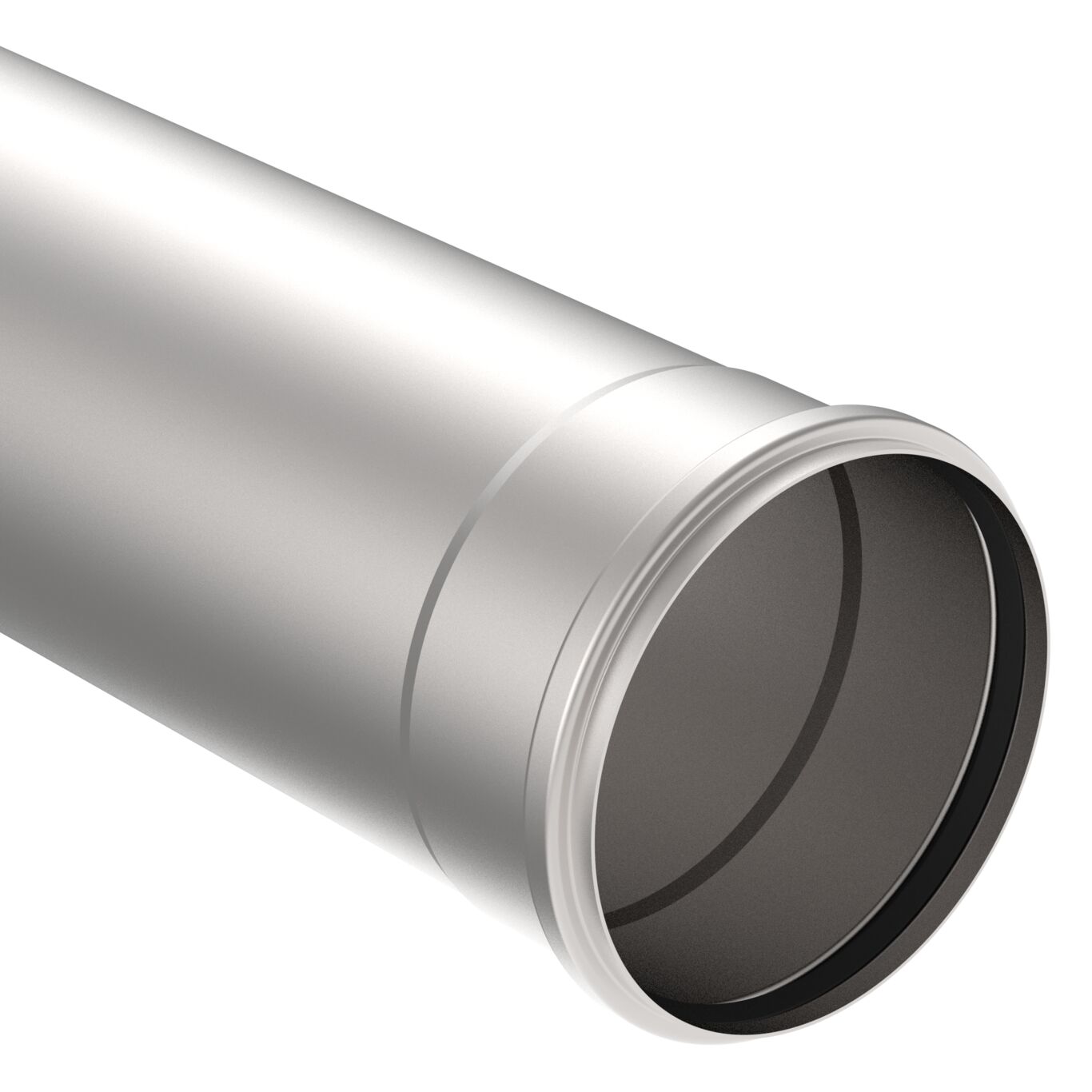

STRAIGHT PIPE WITH ONE SOCKET - (811.015.200 S)
Part Of the Series: Straight pipe
Type no.: 811.015.200 S
EAN no.: 5705499411522
VVS no.: 160134315
NRF no.: 2172455
LVI no.: 0250281

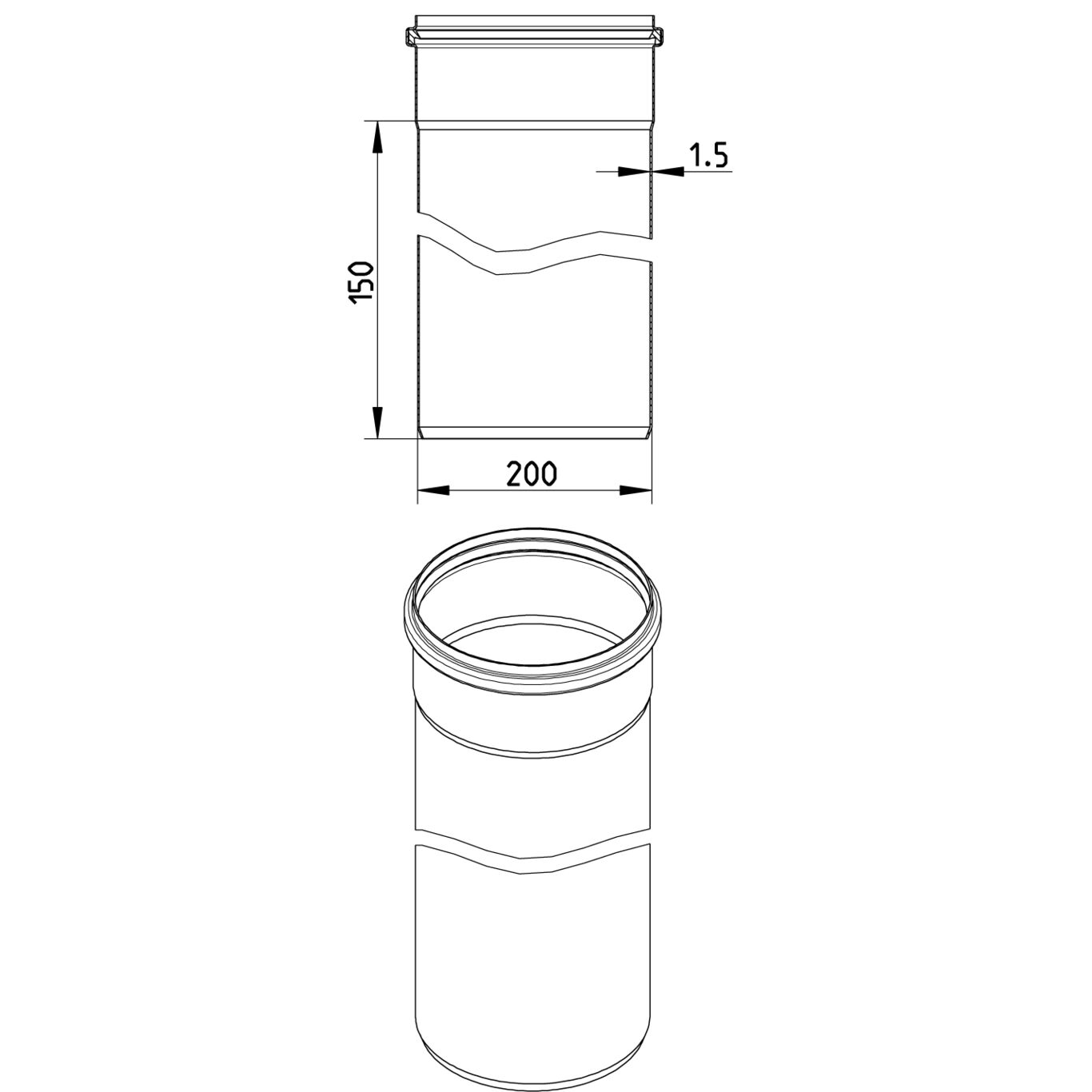

STRAIGHT PIPE WITH ONE SOCKET
-Length: 150mm
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 0' 6" |
Length of straight pipe (mm) | 150 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 8 |
Outlet Diameter (mm) | 200 |
Weight (kg) | 1,96 |
Weight (lbs) | 4,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA Achilles Certificate - 46702-22 DNV - TAP0000023-rev4, Sanitary discharge pipes
