STRAIGHT PIPE WITH ONE SOCKET - (811.015.160 S)
Part Of the Series: Straight pipe
Type no.: 811.015.160 S
EAN no.: 5705499400274
VVS no.: 160132315
RSK no.: 1550358
NRF no.: 2170694
LVI no.: 0250231

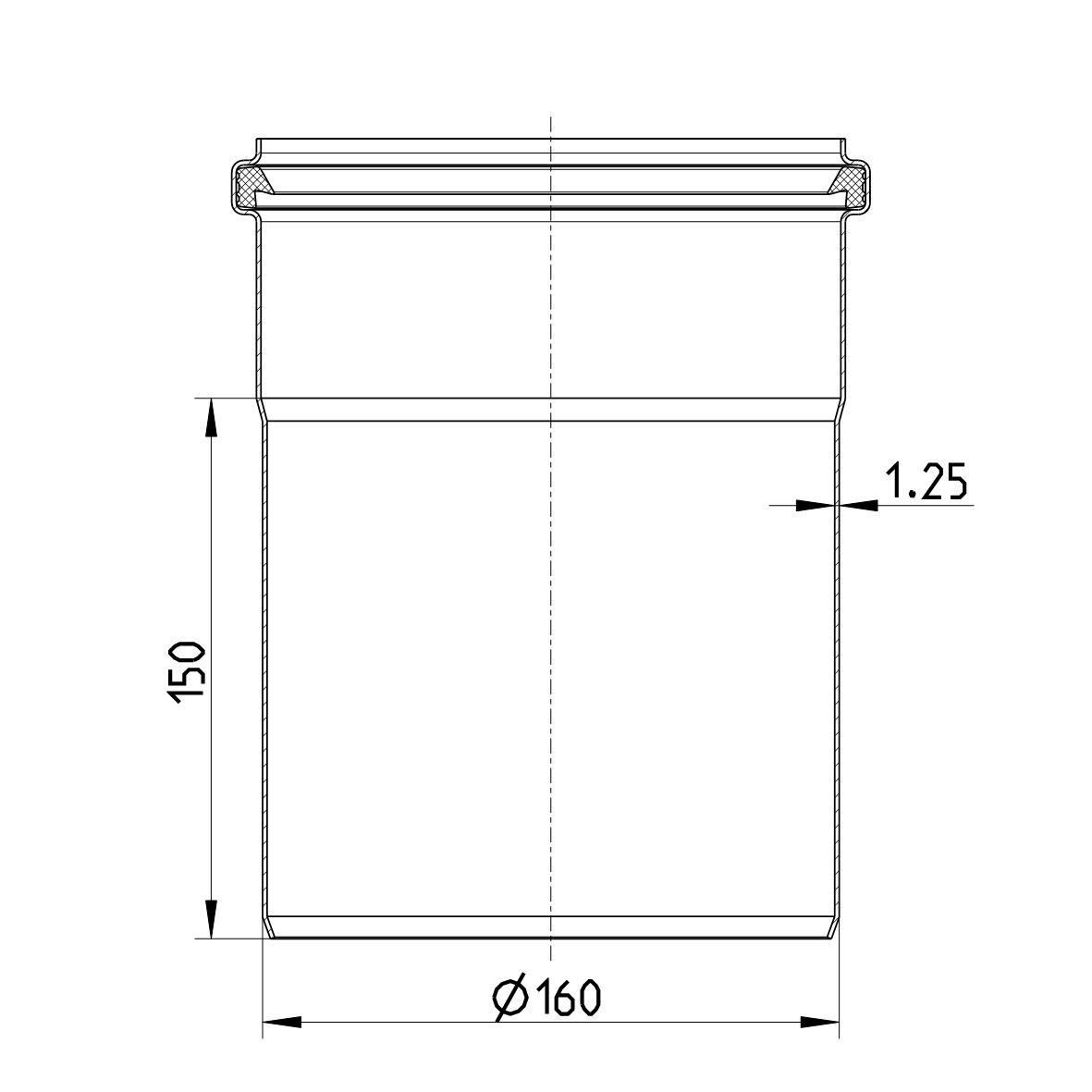

STRAIGHT PIPE WITH ONE SOCKET
-Length: 150mm
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (Inch) | 0' 6" |
Length of straight pipe (mm) | 150 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 1,16 |
Weight (lbs) | 2,62 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe AUS - WMKT00204 - 24 NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA ABS - 23-2329630-PDA Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001
