STRAIGHT PIPE WITH ONE SOCKET - (811.015.075)
Part Of the Series: Straight pipe
Type no.: 811.015.075
EAN no.: 5705499400229
VVS no.: 160124015
RSK no.: 1550038
NRF no.: 2170011
LVI no.: 0240131

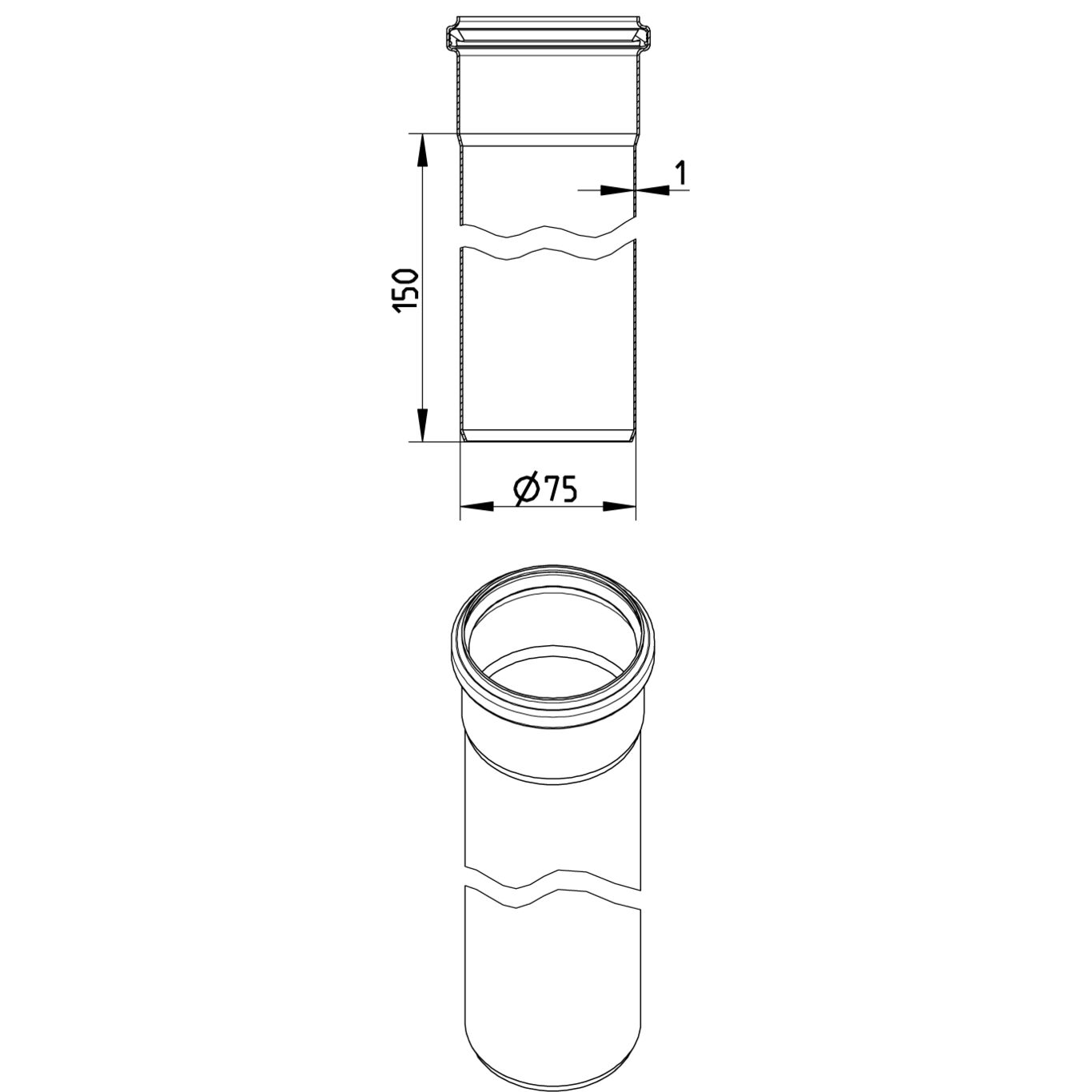

STRAIGHT PIPE WITH ONE SOCKET
-Length: 150mm
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Length of straight pipe (Inch) | 0' 6" |
Length of straight pipe (mm) | 150 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 0,41 |
Weight (lbs) | 0,9 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA DNV - TAP0000023-rev4, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22
