DOUBLE COUPLING - (841.160.160)
×
![]()
Part Of the Series: Double coupling
Type no.: 841.160.160
EAN no.: 5705499402797
VVS no.: 160275160
RSK no.: 1550126
NRF no.: 2170172
LVI no.: 0242735

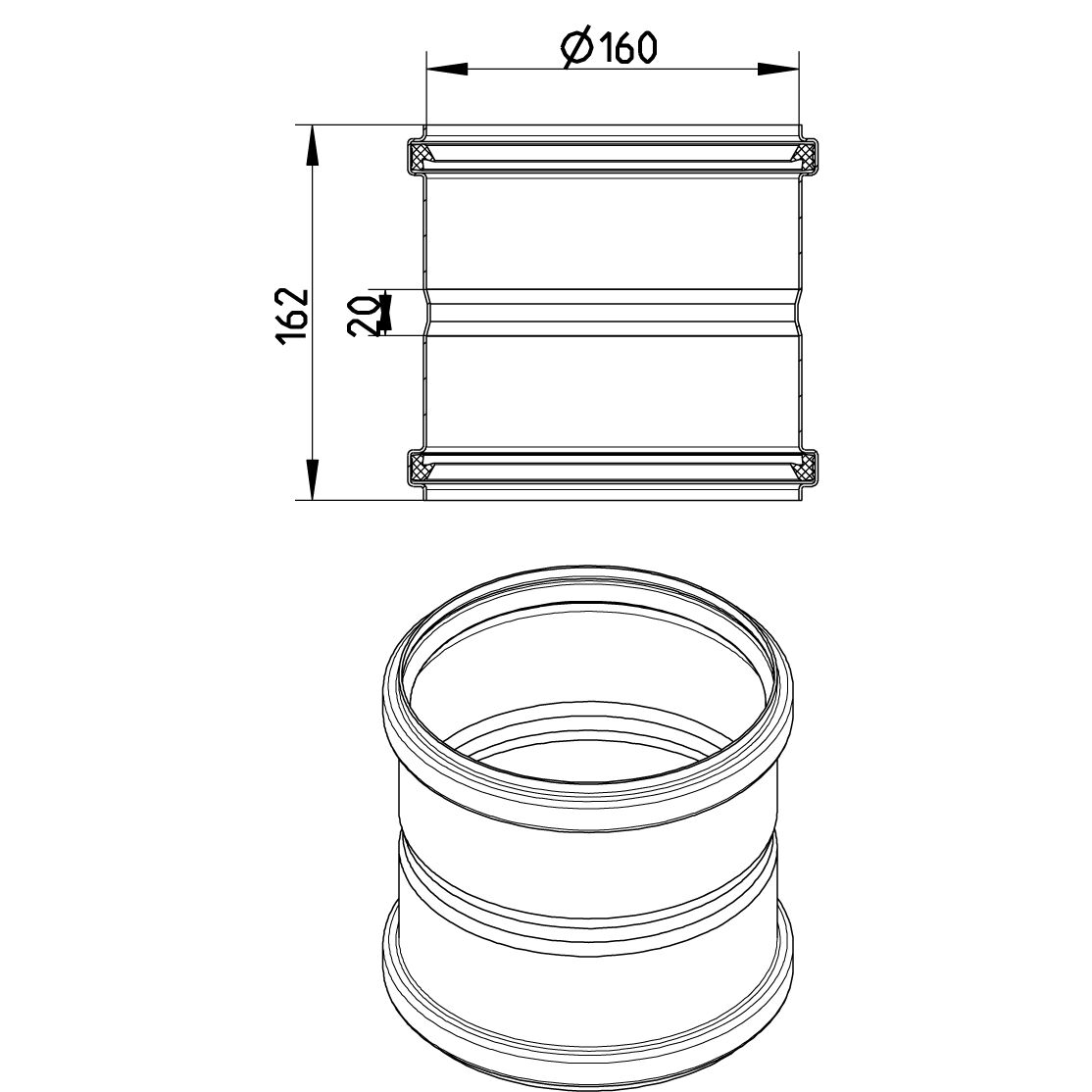

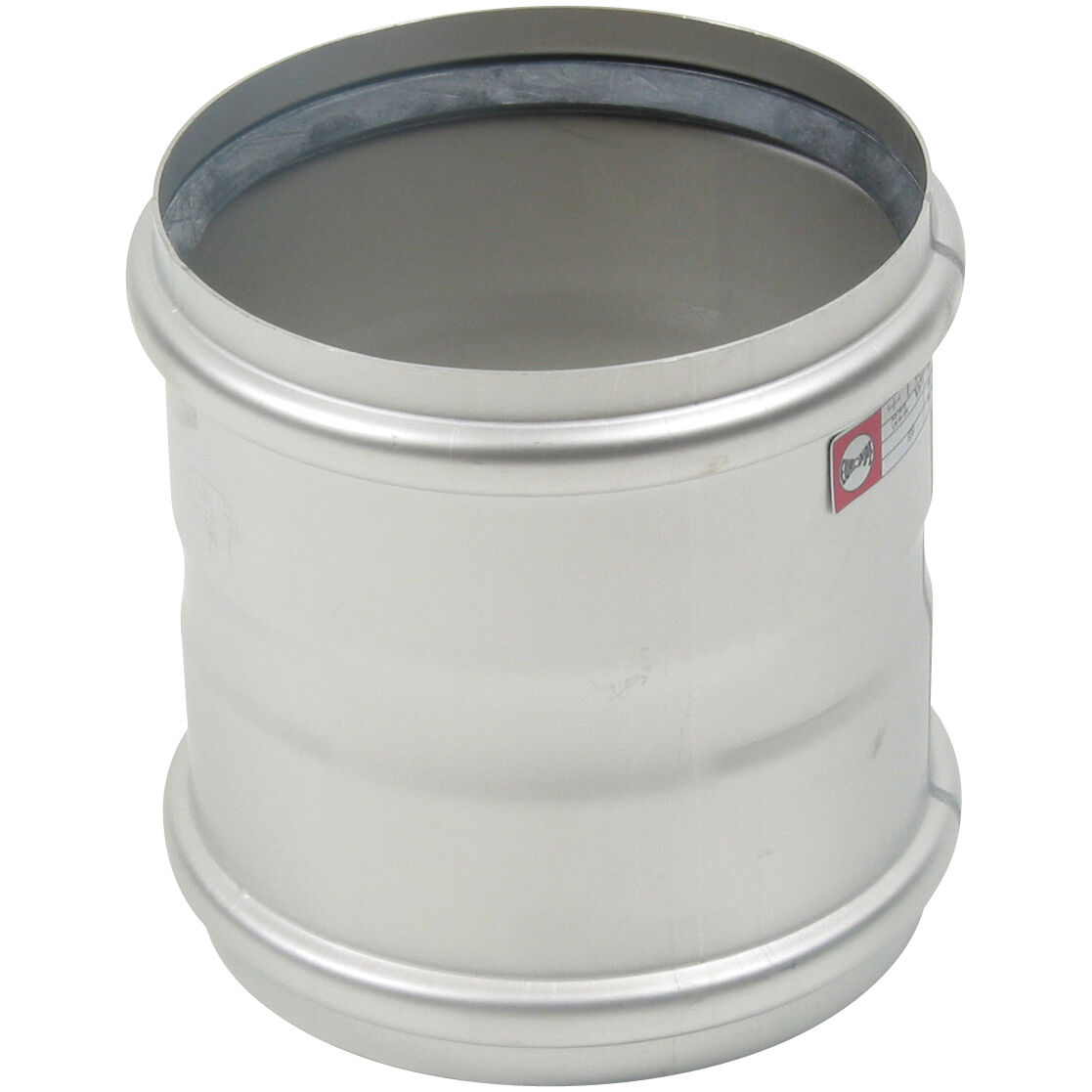

DOUBLE COUPLING
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length (mm) | 20 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,04 |
| Weight (lbs) | 2,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
Declaration of Perfomance BS-EN1124-1-002
DK - VA 2.12/19349 EuroPipe DS432
Declaration of Perfomance EN1124-1-001
AUS - WMKT00204 - 24
DE - TÜV Rheinland R 60178453 0001
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702 ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
