REDUCER ECCENTRIC - (850.110.075 S)
×
![]()
Part Of the Series: Reducer-eccentric
Type no.: 850.110.075 S
EAN no.: 5705499403190
VVS no.: 160261407
RSK no.: 1550392
NRF no.: 2170946
LVI no.: 0252359

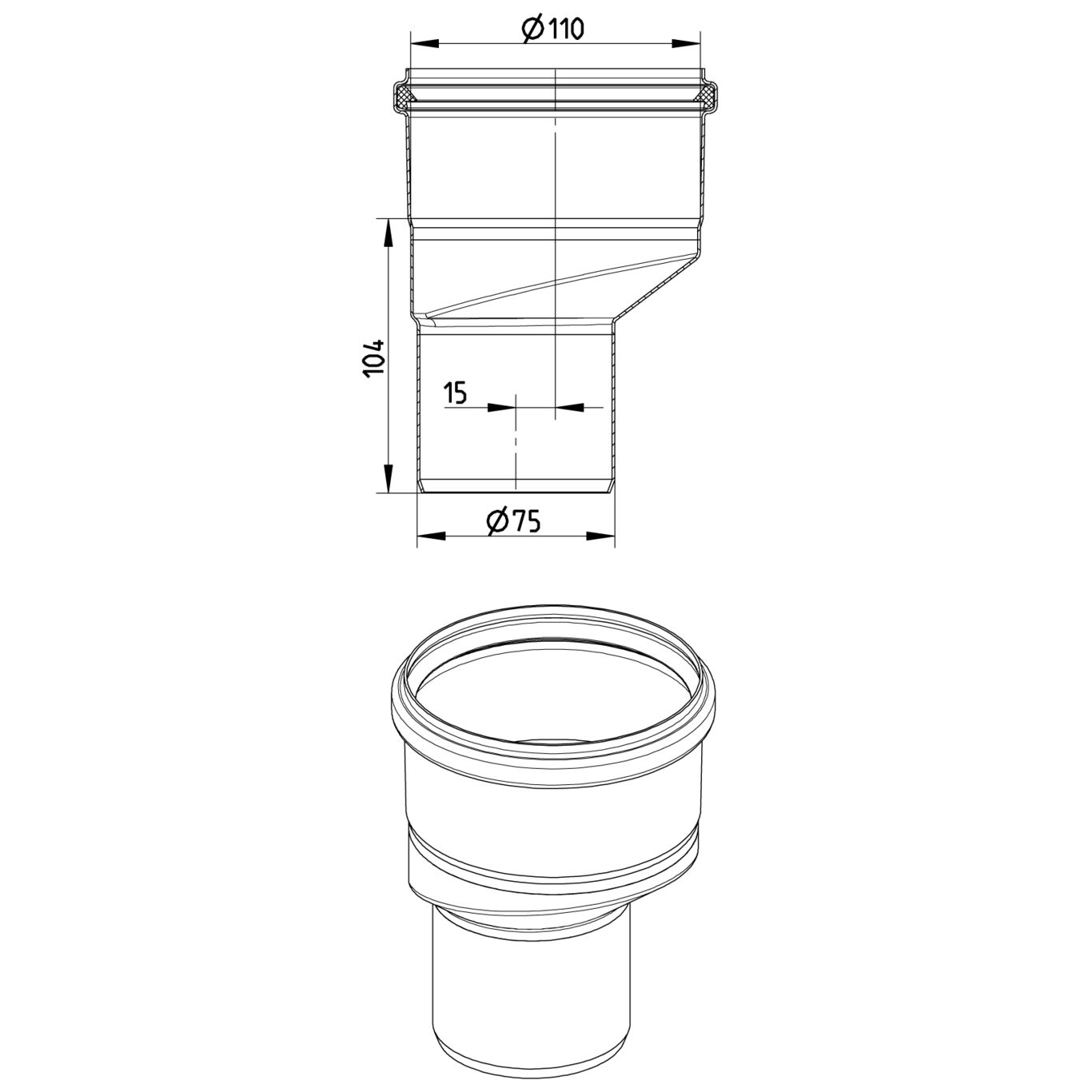

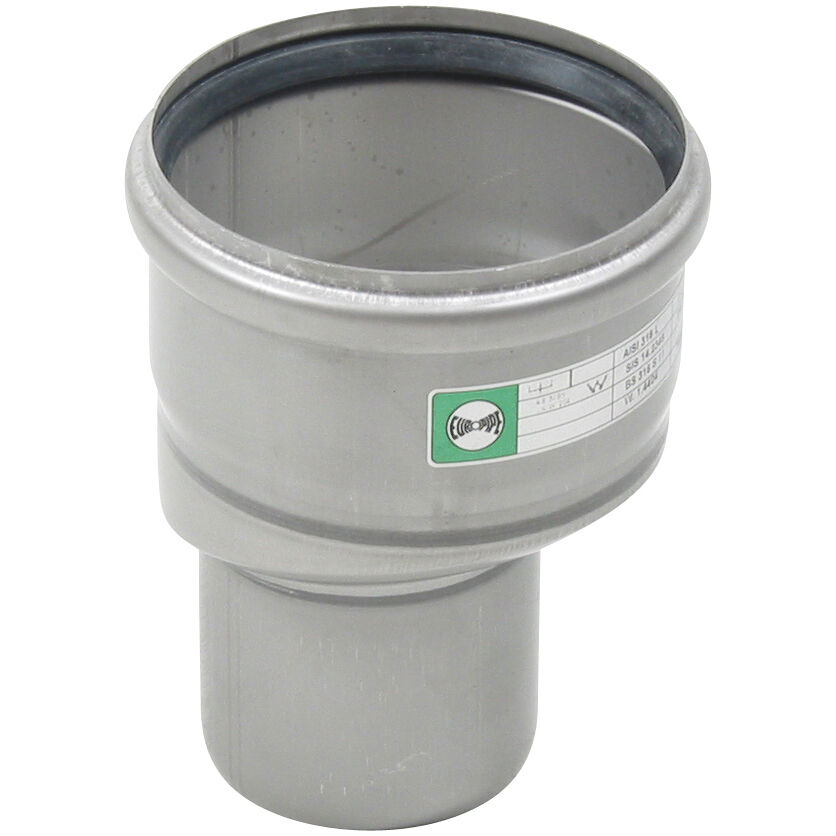

REDUCER ECCENTRIC
-Diameter: Ø110mm to Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 104 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,55 |
| Weight (lbs) | 1,21 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-19
DK - VA 2.12/19349 EuroPipe DS432
AUS - HACCP Region 1
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22
AUS - WMKT00204 - 22C KR - Type Approval CPH42135-PE001 RS - 22.10018.262 DNV - TAP0000023-rev3 MARINE - R4547 NATO CODIFICATION SYSTEM RU - 0212322 Pipes-21 UR - 1055745 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - LD1716353-PDA Bureau Veritas, 02375-I0 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA
