INCREASER CONCENTRIC - (850.075.110 C)
×
![]()
Part Of the Series: Increaser-concentric
Type no.: 850.075.110 C
EAN no.: 5705499403145
VVS no.: 160335077
NRF no.: 2172383
LVI no.: 0242184

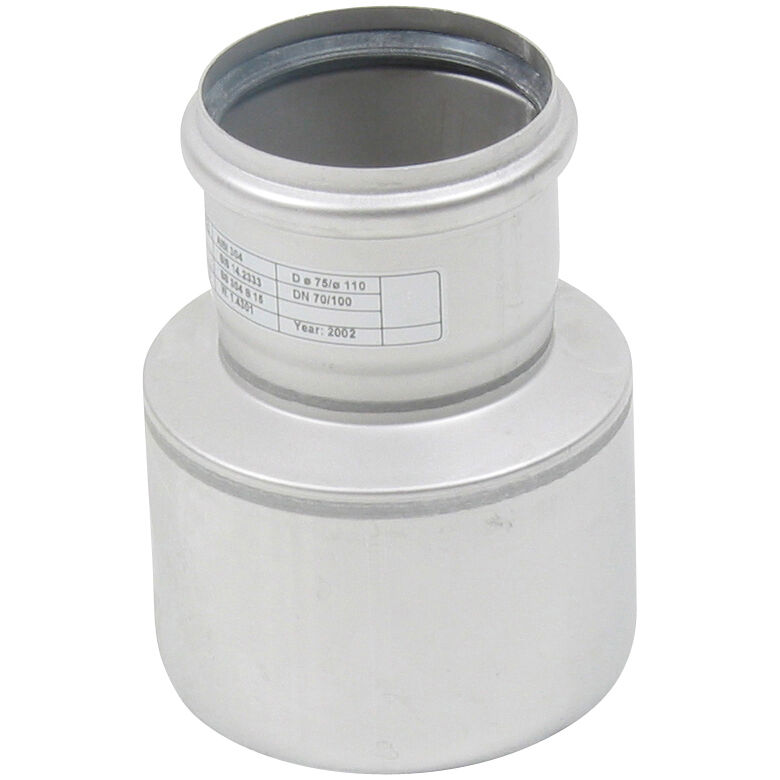

INCREASER CONCENTRIC

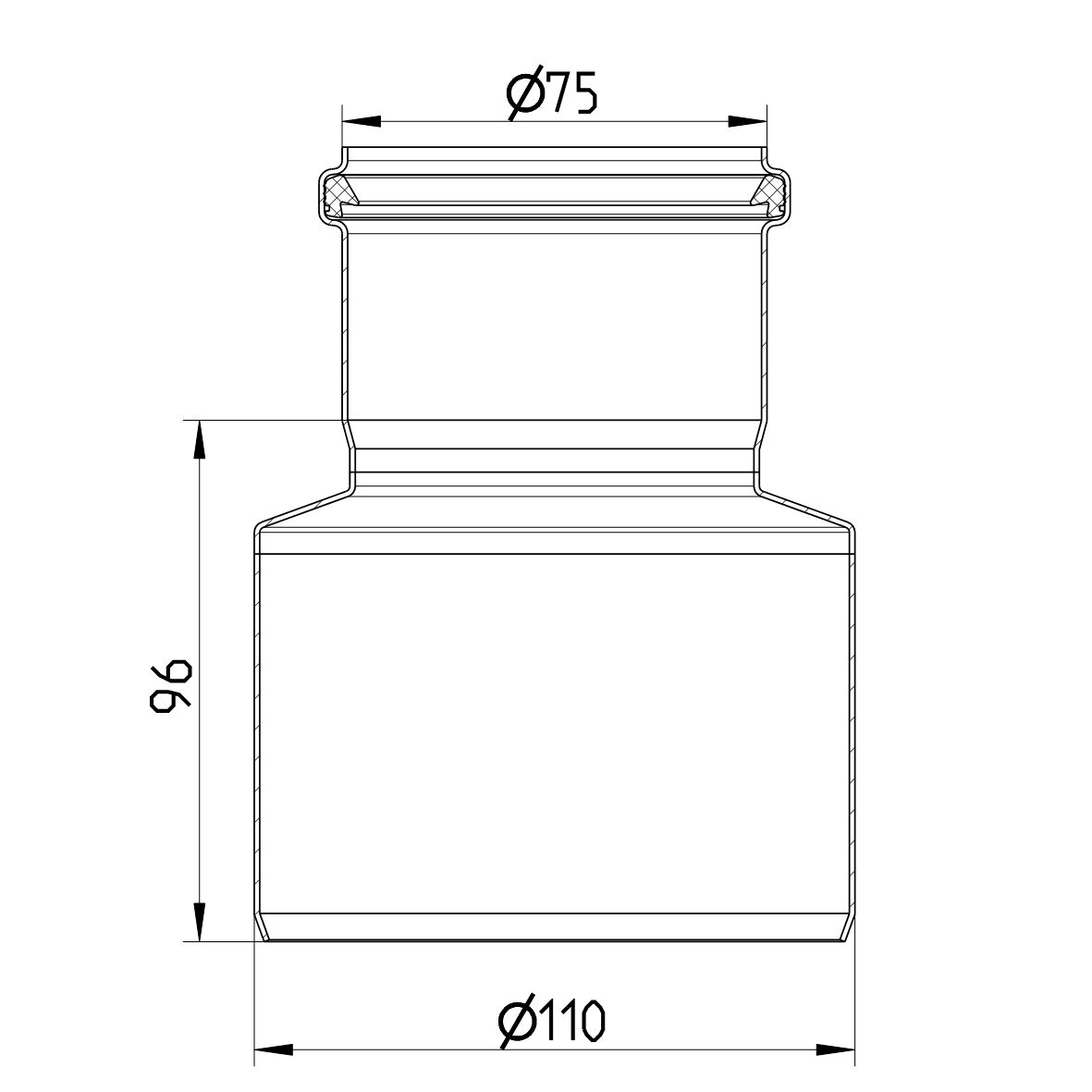

-Diameter: Ø75mm to Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length (mm) | 95 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,37 |
| Weight (lbs) | 0,82 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - TÜV Rheinland R 60178453 0001
TÜRK LOYDU - 25041616077231247 DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products Achilles Certificate - 46702
