DOUBLE BRANCH 87.5° - (832.075.075 S)
Part Of the Series: Double branch-87.5-90
Type no.: 832.075.075 S
EAN no.: 5705499402018
RSK no.: 1549418
NRF no.: 2172597
LVI no.: 0254956

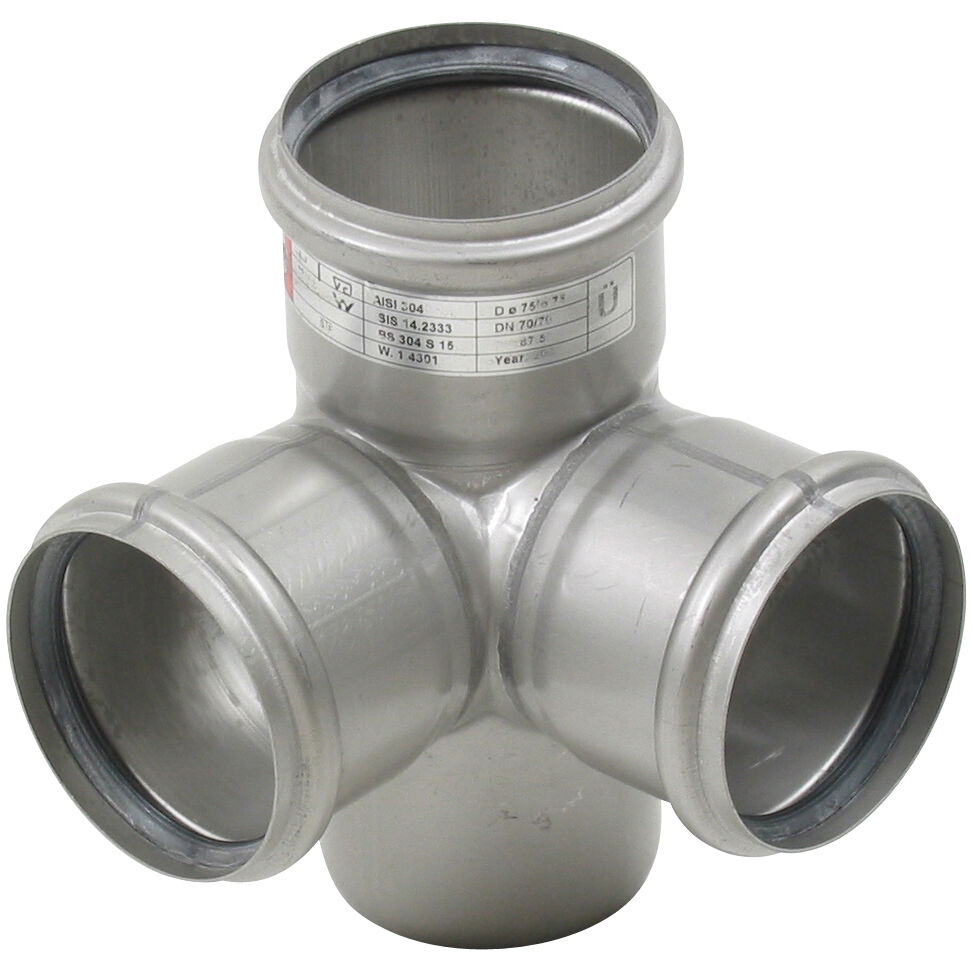

DOUBLE BRANCH 87.5°

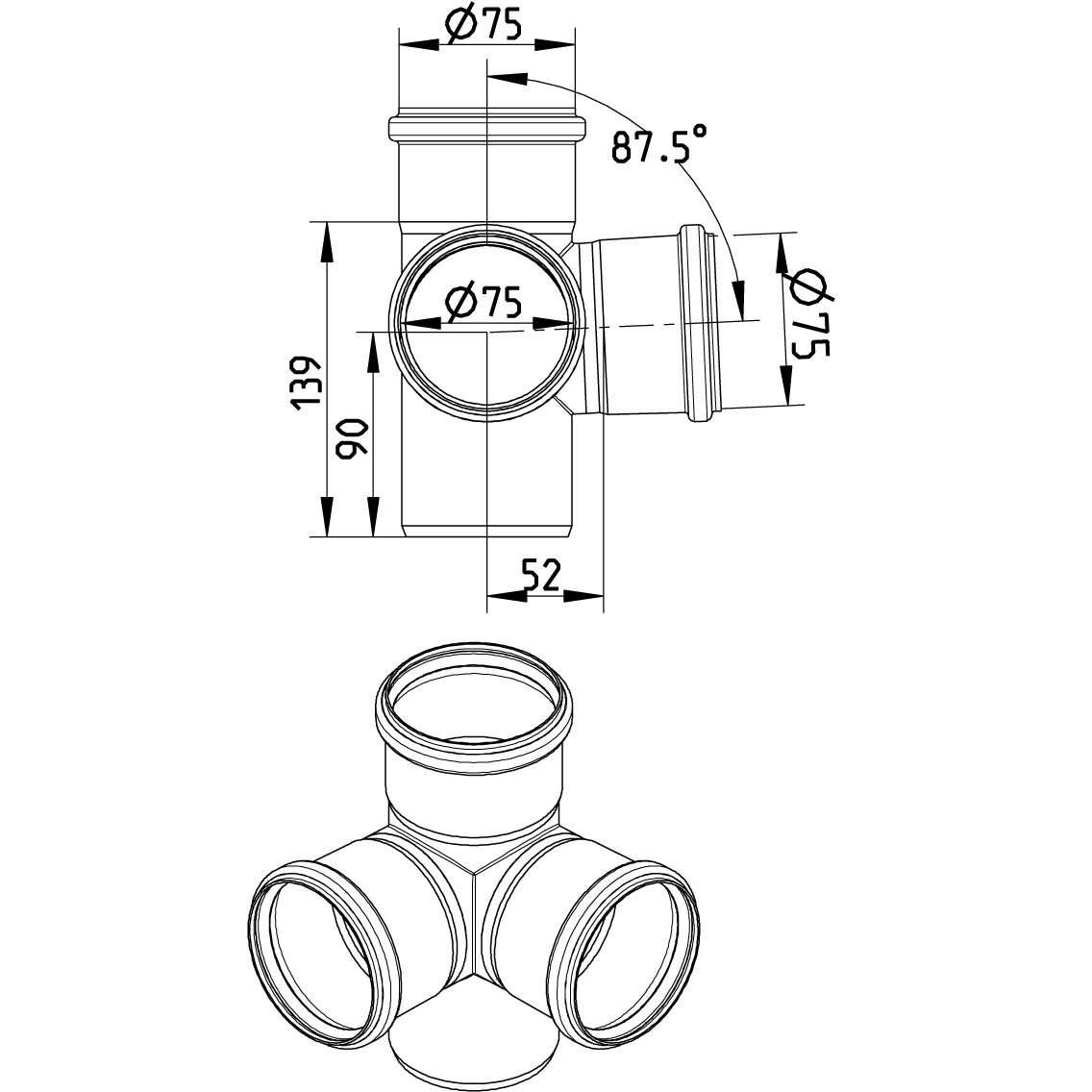

-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 139 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 0,66 |
Weight (lbs) | 1,46 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe HACCP Food Safety Programme - Europe DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 ABS - LD1716353-PDA DNV - TAP0000023-rev4, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM
