DOUBLE BRANCH 87.5° - (831.075.110 S)
Part Of the Series: Double branch-87.5-180
Type no.: 831.075.110 S
EAN no.: 5705499401875
VVS no.: 160231408
RSK no.: 1550373
NRF no.: 2172583
LVI no.: 0254159

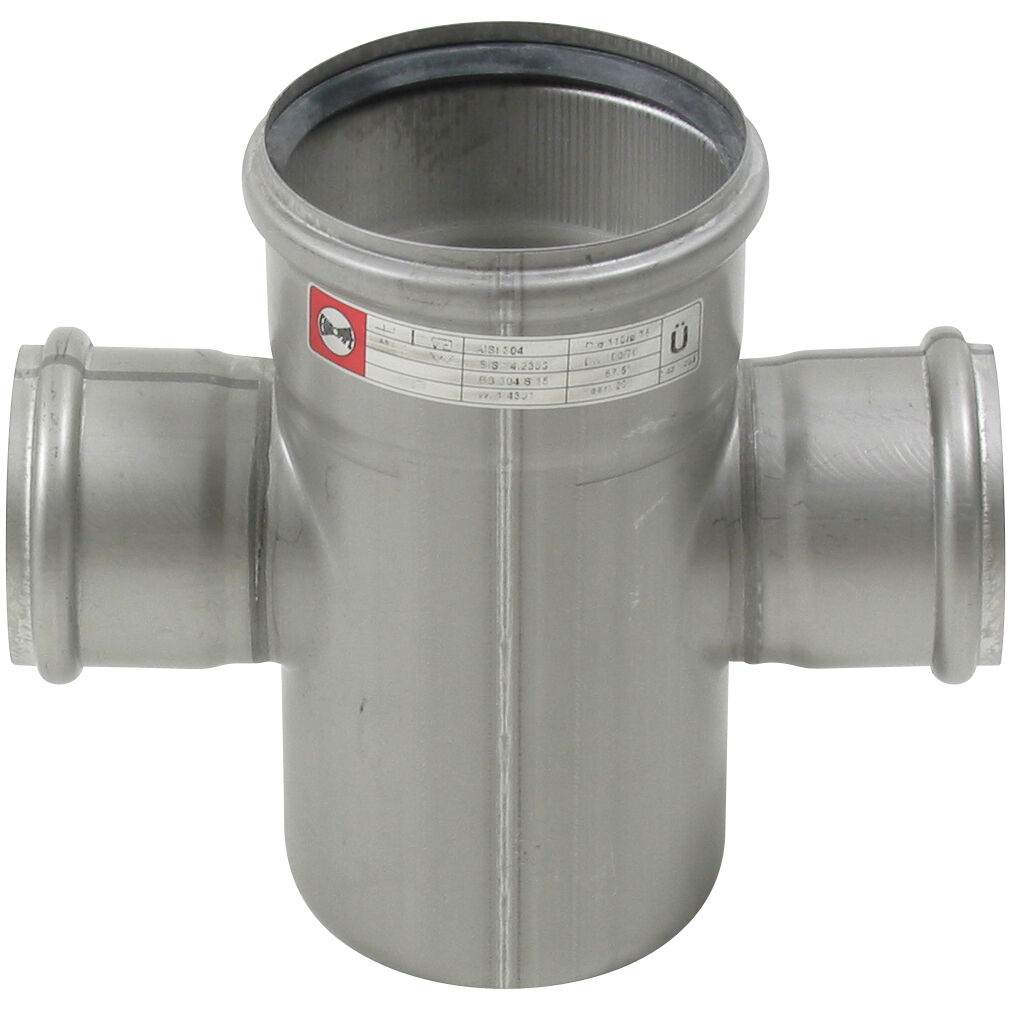

DOUBLE BRANCH 87.5°

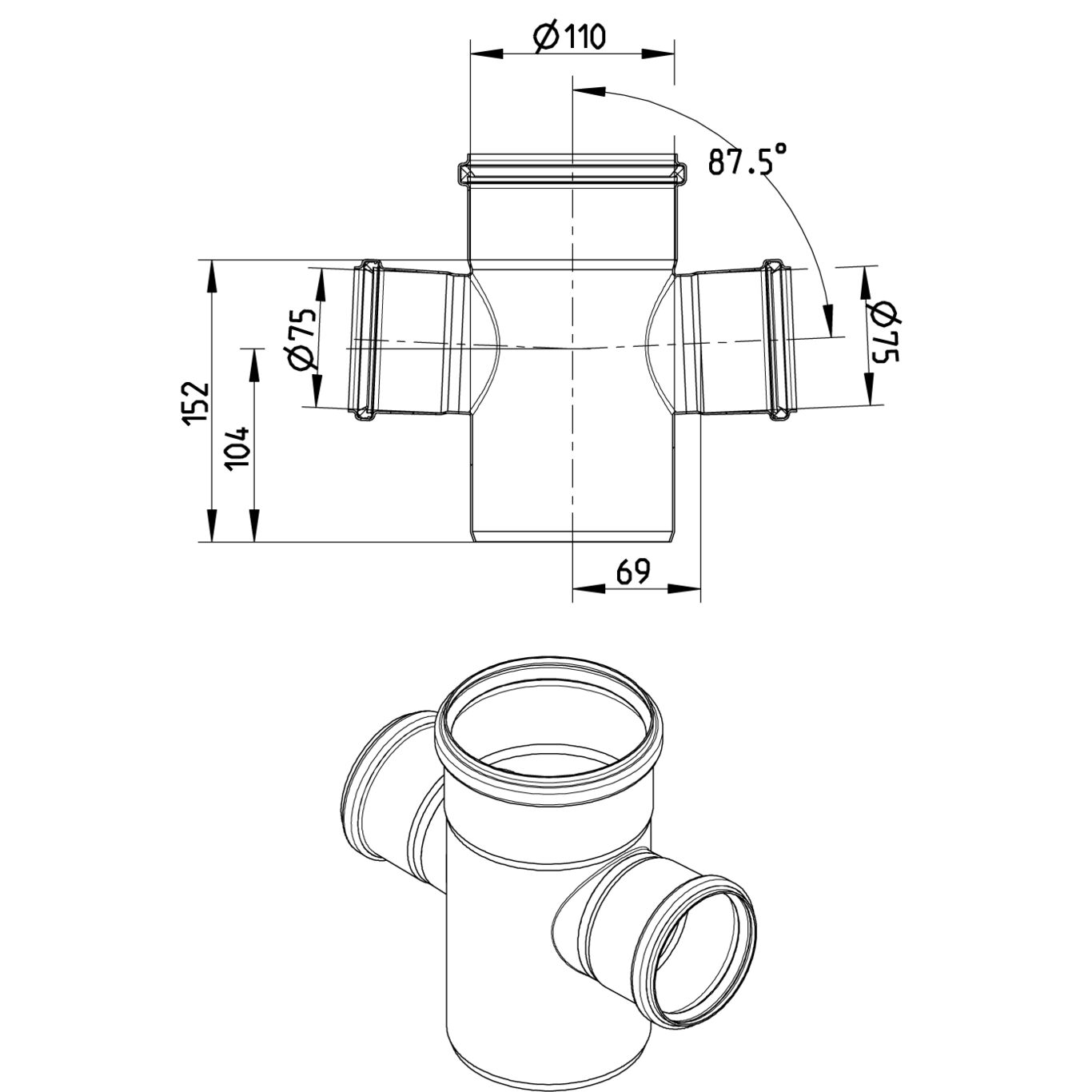

-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 152 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 0,89 |
Weight (lbs) | 1,96 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia AUS - WMKT00204 - 24 HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev4, Sanitary discharge pipes PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings
