DOUBLE BRANCH 45° - (837.110.110 S)
Part Of the Series: Double branch-45-90
Type no.: 837.110.110 S
EAN no.: 5705499402322
VVS no.: 160236410
RSK no.: 1550380
NRF no.: 2172624
LVI no.: 0254463

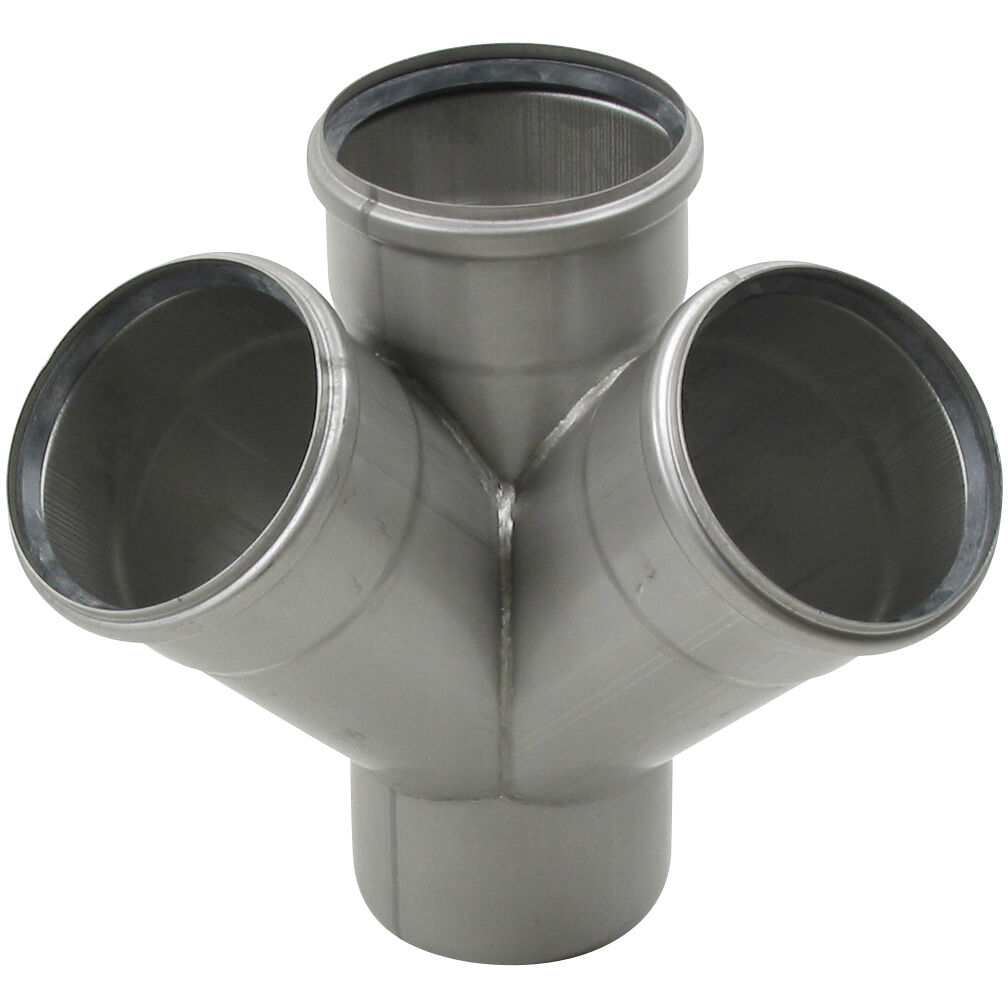

DOUBLE BRANCH 45°

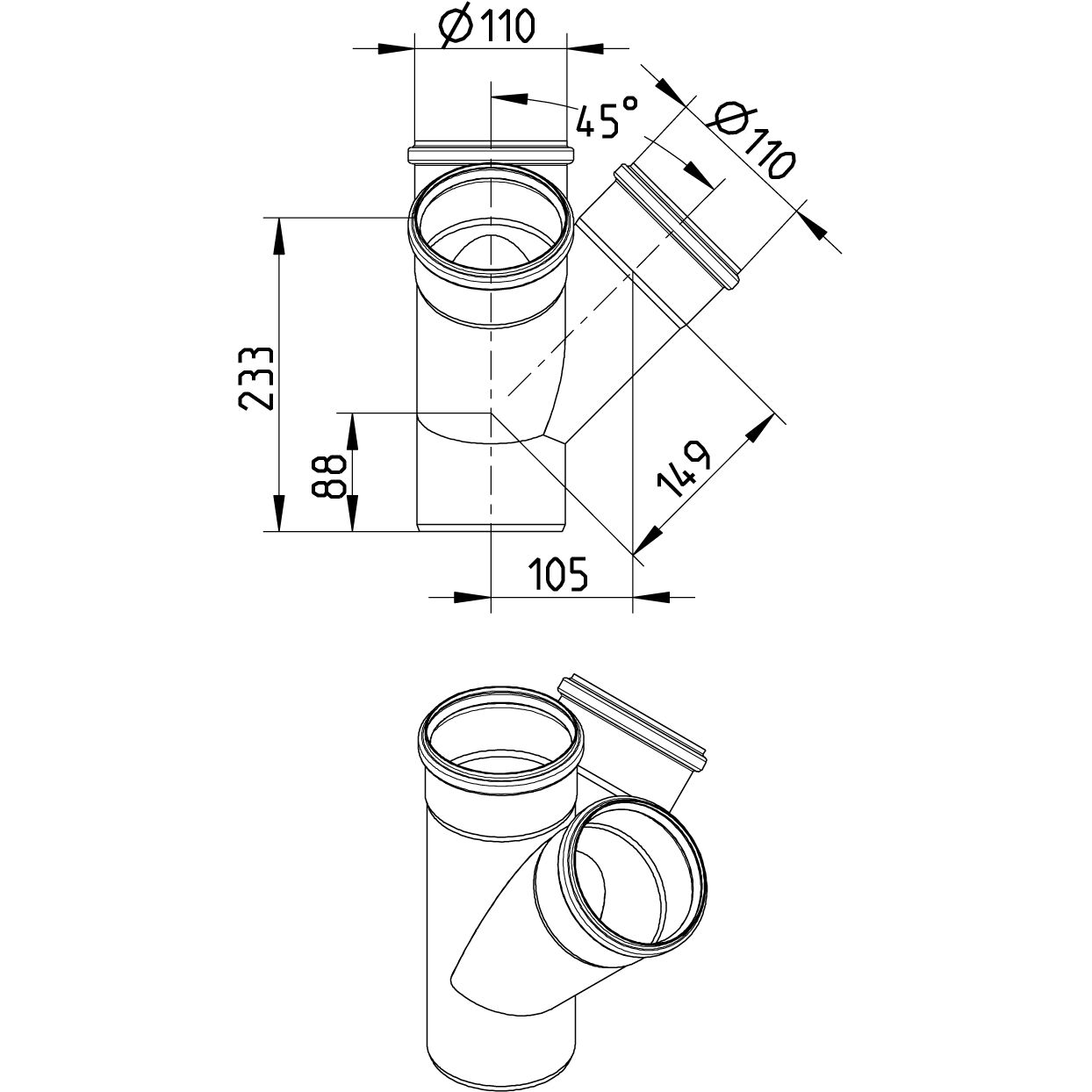

-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 233 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 2,07 |
Weight (lbs) | 4,56 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-19
NO - 0692-22
DK - VA 2.12/19350-19
AUS - WMKT00204 - 18B
DK - VA 2.12/19349-19 UR - 1055745 RU - 0212322 Pipes-21 KR - Type Approval CPH42135-PE001 Achilles Certificate - 25316-21 DNVGL - TAP0000023-rev2 Bureau Veritas, 02375-H0 RS - 22.10018.262 PL - Hygienic Certificate - All products RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register 92-00041 (E7) ABS - 18-LD1716353-PDA
