DOUBLE BRANCH 45° - (837.050.075 S)
×
![]()
Part Of the Series: Double branch-45-90
Type no.: 837.050.075 S
EAN no.: 5705499402278
VVS no.: 160236373
RSK no.: 1549409
NRF no.: 2172619
LVI no.: 0254453
DOUBLE BRANCH 45°

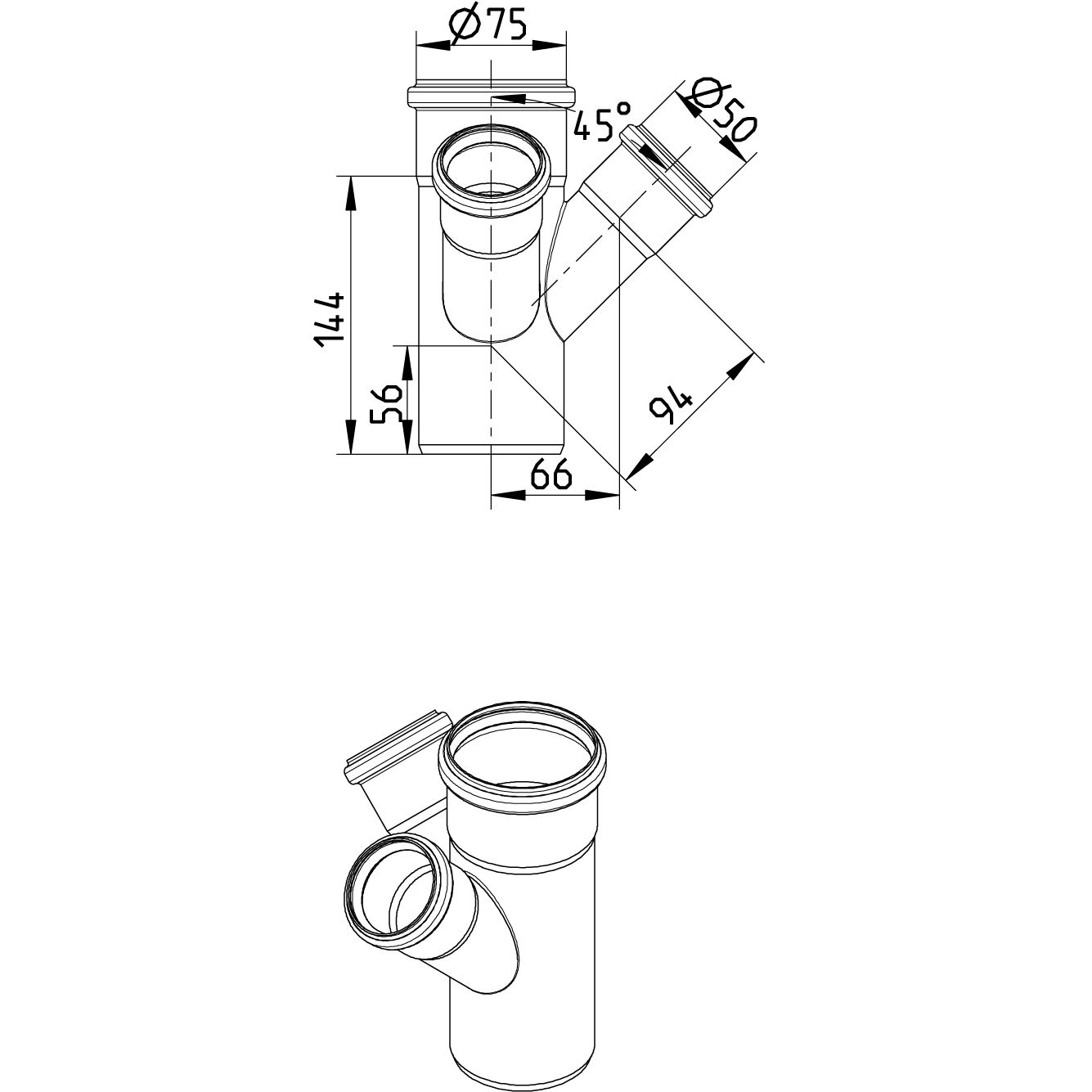

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 144 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,67 |
| Weight (lbs) | 1,48 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
NO - 0692-22 EuroPipe
Declaration of Perfomance BS-EN1124-1-002
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DE - TÜV Rheinland R 60178453 0001
DK - VA 2.12/19349 EuroPipe DS432
BLÜCHER® EuroPipe EPD PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC320524XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702 ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes
