DOUBLE BRANCH 45° - (836.110.125 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.110.125 S
EAN no.: 5705499412574
NRF no.: 2172612
LVI no.: 0256027

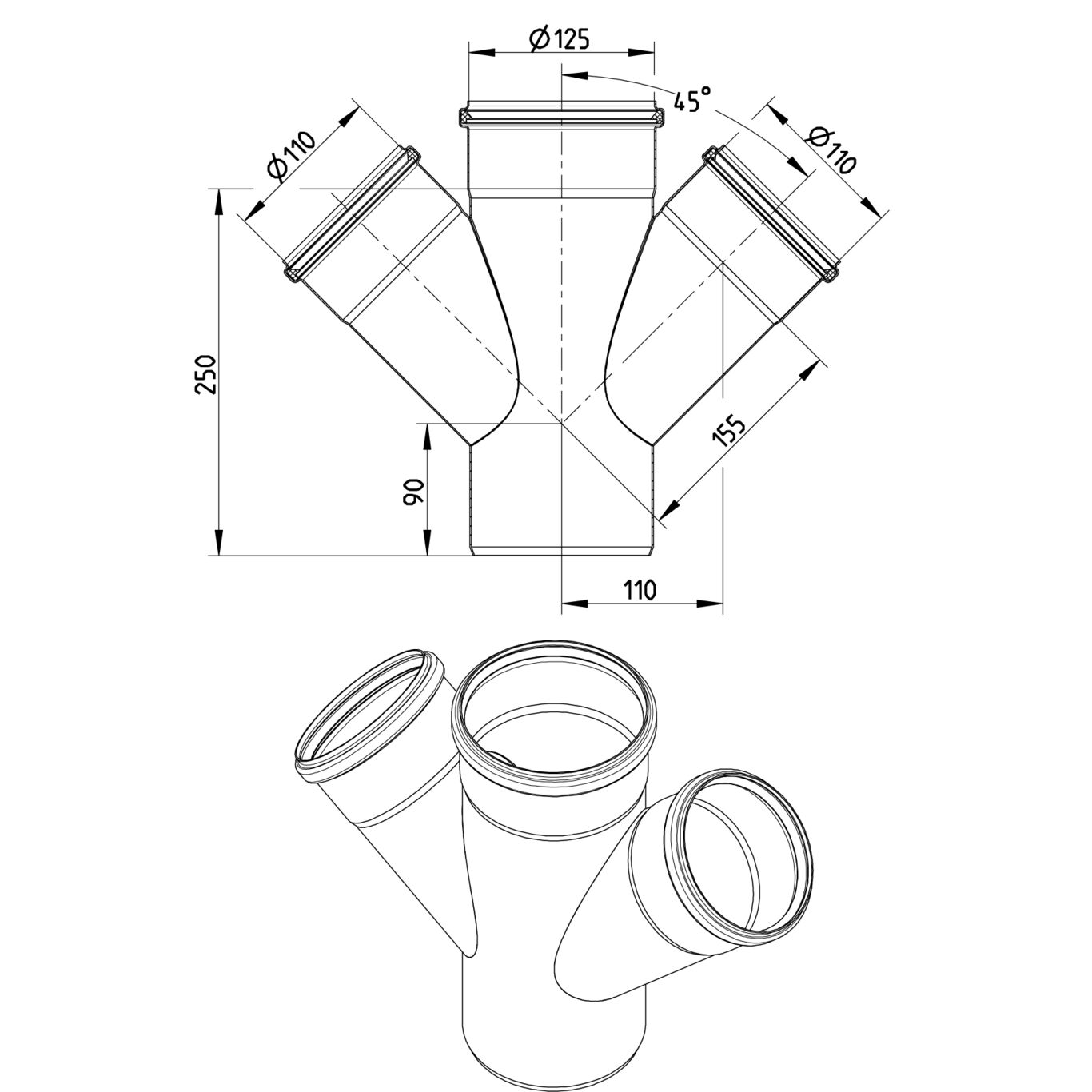

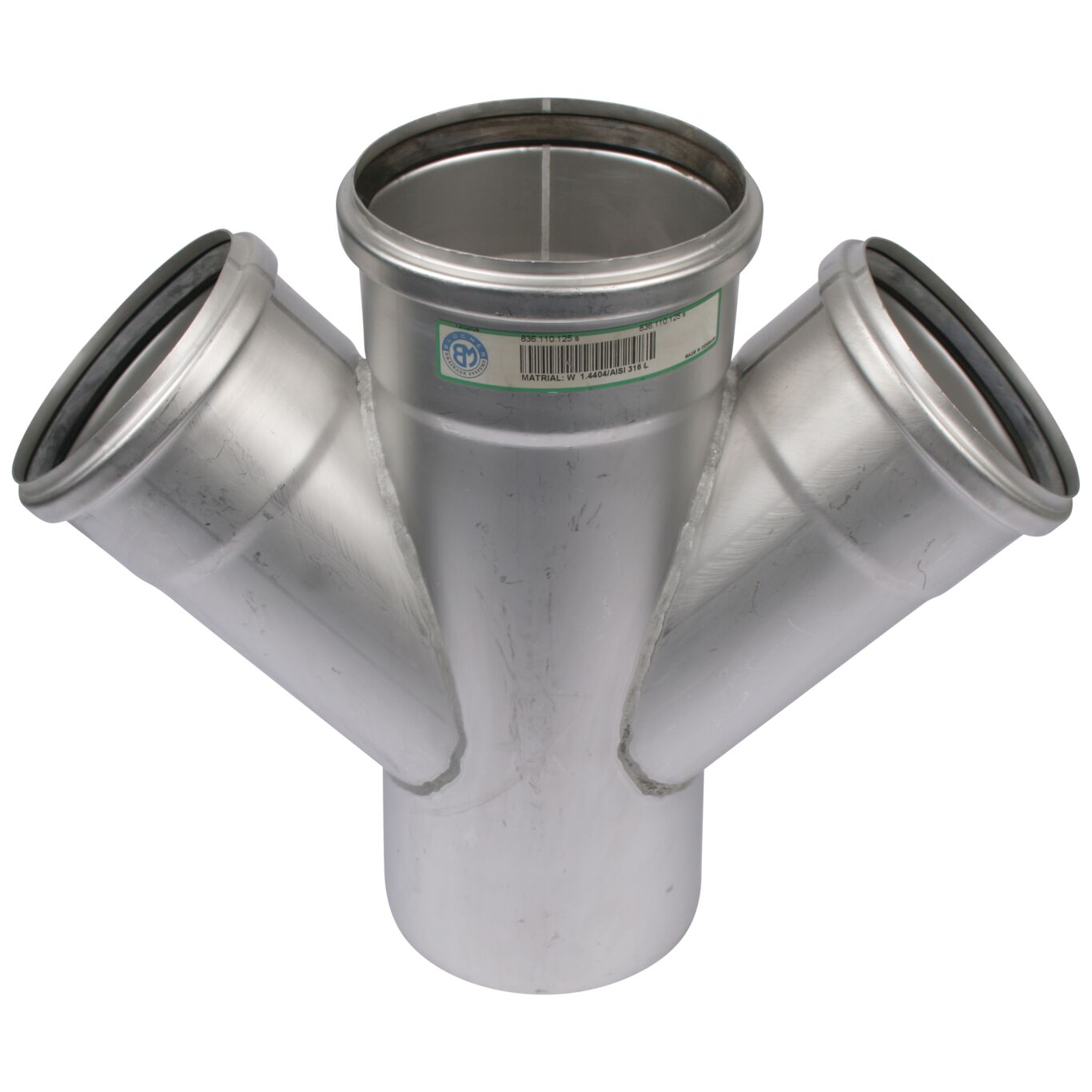

DOUBLE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| GWP total Co2 eq. for A1-A3 per product | 5,76kg |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,65 |
| Weight (lbs) | 3,64 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
BLÜCHER® EuroPipe EPD
DK - VA 2.12/19350
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance BS-EN1124-1-002
