DOUBLE BRANCH 45° - (836.050.075 S)
Part Of the Series: Double branch-45-180
Type no.: 836.050.075 S
EAN no.: 5705499402131
VVS no.: 160235373
RSK no.: 1549393
NRF no.: 2170506
LVI no.: 0253655

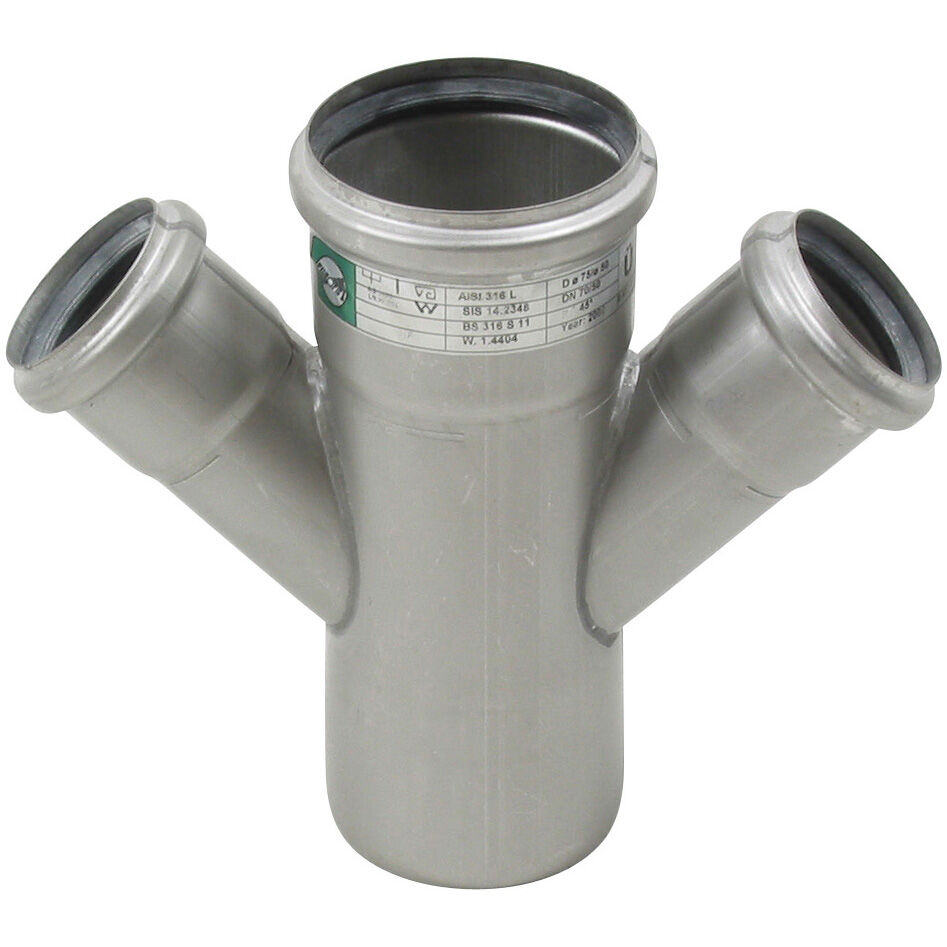

DOUBLE BRANCH 45°

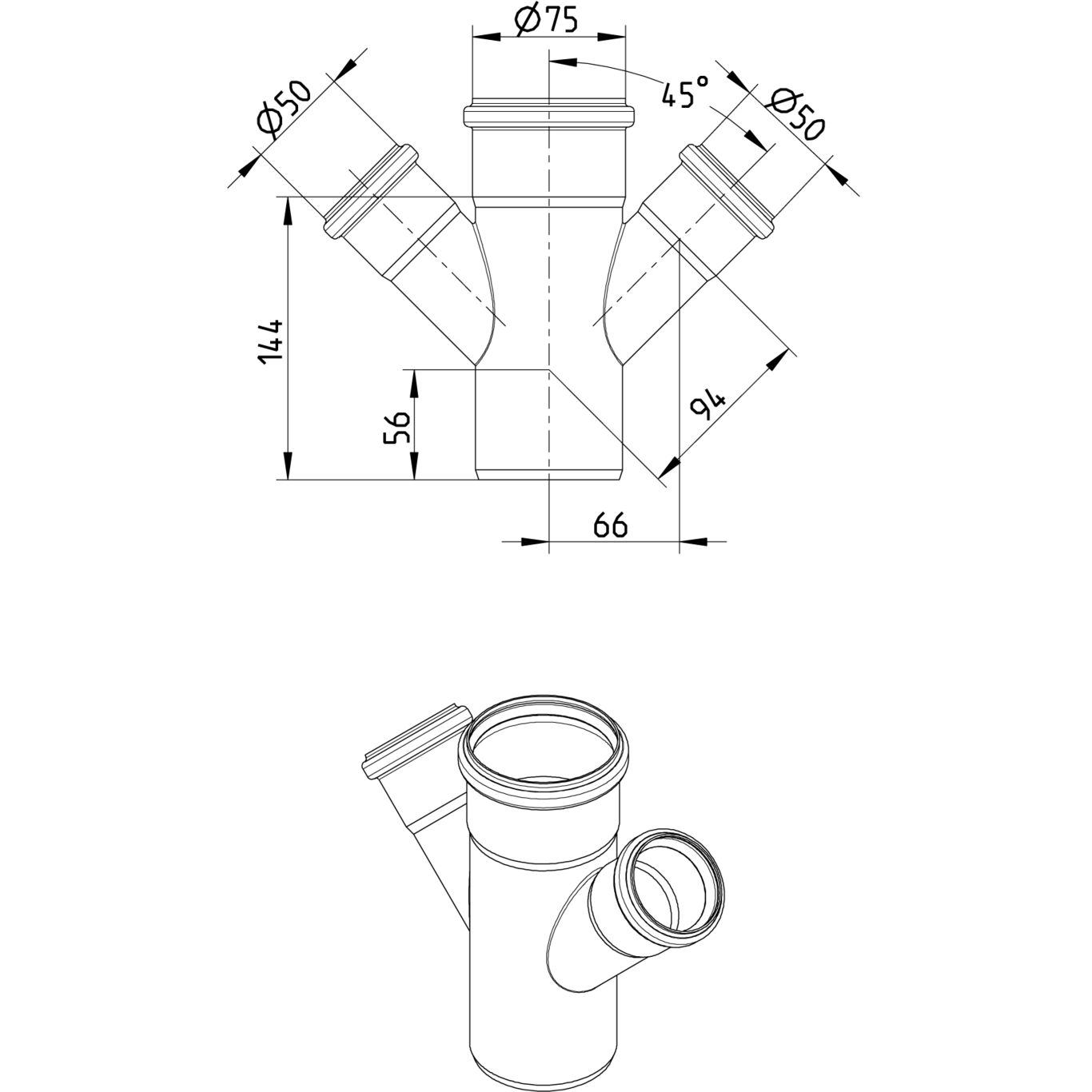

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 144 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 0,69 |
Weight (lbs) | 1,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe AUS - WMKT00204 - 24 NO - 0692-22 EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe RU - 0212322 Pipes-21 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA
