BRANCH 89° - (830.050.110 AS)
×
![]()
Part Of the Series: Branch-89
Type no.: 830.050.110 AS
EAN no.: 5705499408911
NRF no.: 2172564

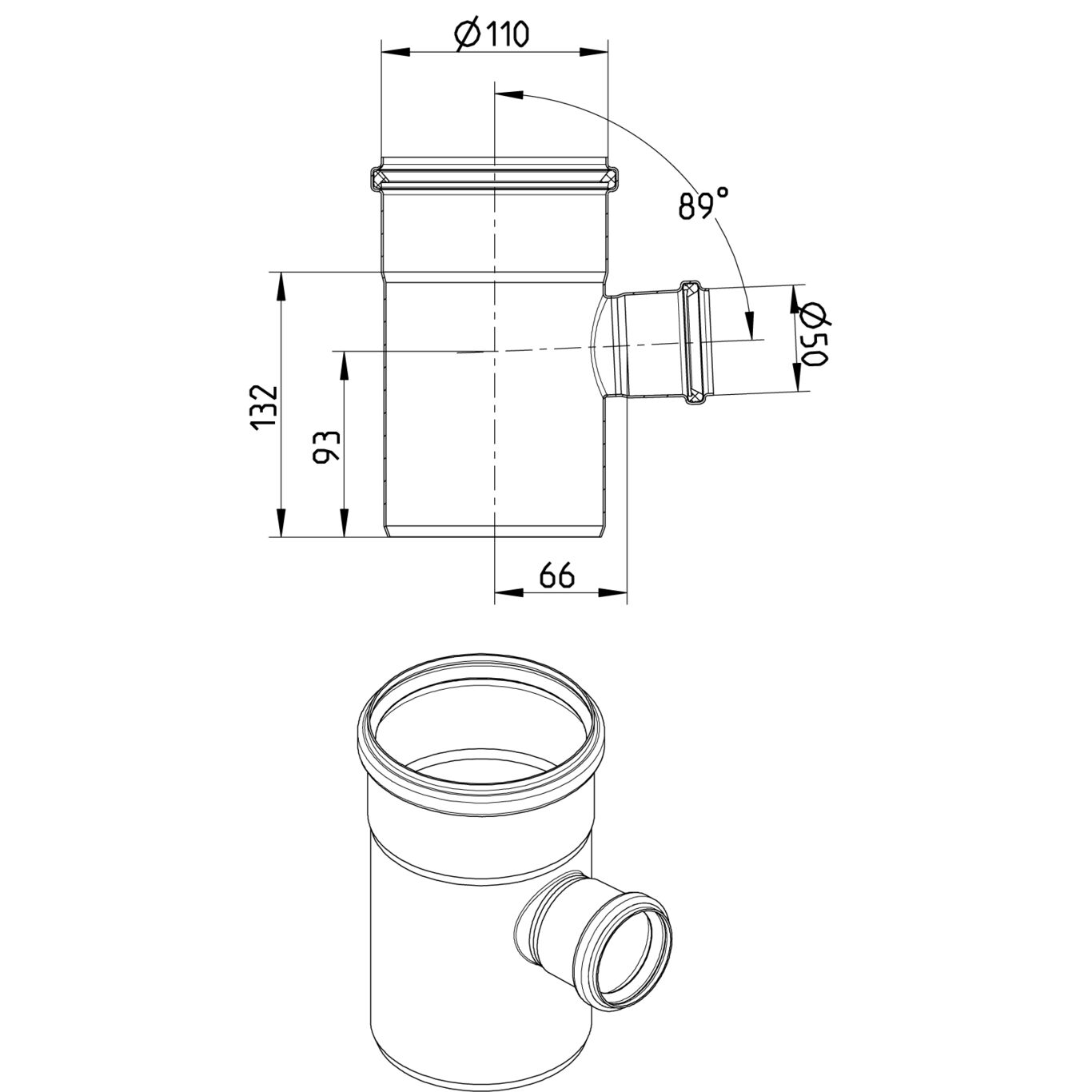

BRANCH 89°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,64 |
| Weight (lbs) | 1,41 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247
US - IAPMO File No.3247-EuroPipe RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702
