BRANCH 87.5° - (830.315.315 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.315.315 S
EAN no.: 5705499413861
VVS no.: 160221615
RSK no.: 1554588
NRF no.: 2172574
LVI no.: 0256026

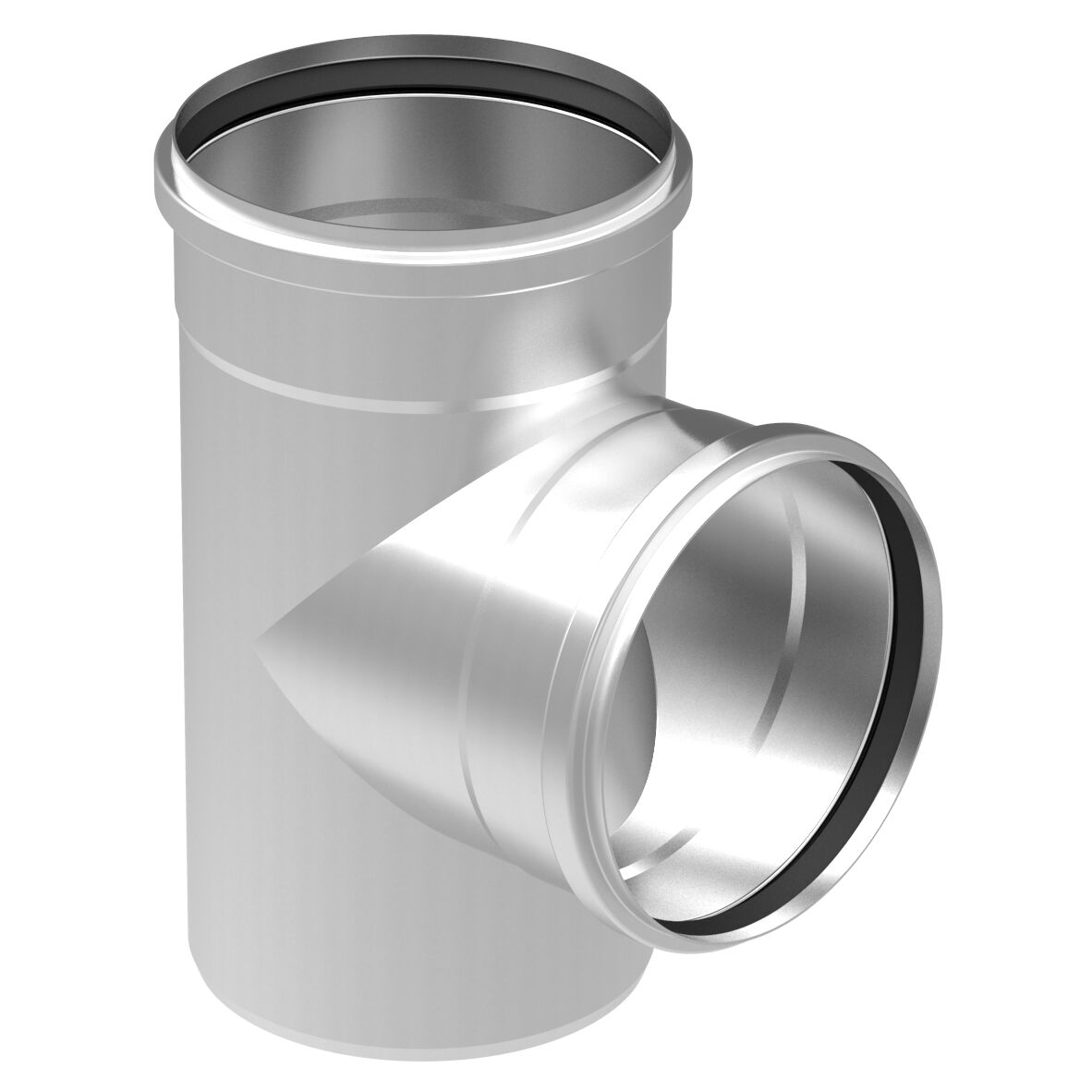

BRANCH 87.5°

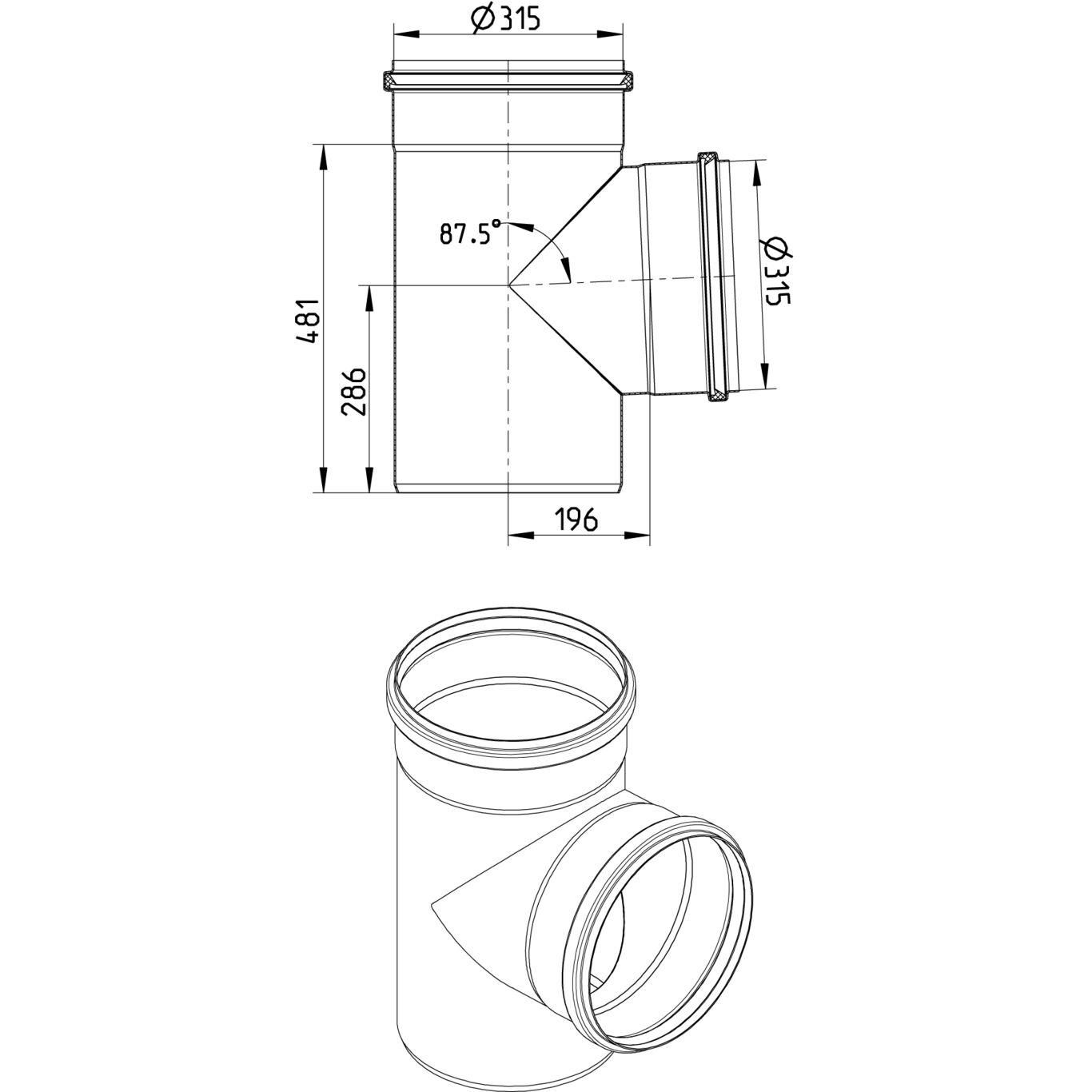

-Pipe diameter: Ø315mm. Branch diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 481 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 12 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 12,22 |
| Weight (lbs) | 26,94 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
DE - TÜV Rheinland R 60178453 0001
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002
BLÜCHER® EuroPipe EPD
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance EN1124-1-001 PL - Hygienic Certificate - All Products
