BRANCH 87.5° - (830.250.315 S)
Part Of the Series: Branch-87.5
Type no.: 830.250.315 S
EAN no.: 5705499413854
VVS no.: 160221614
RSK no.: 1554587
NRF no.: 2172573
LVI no.: 0251972

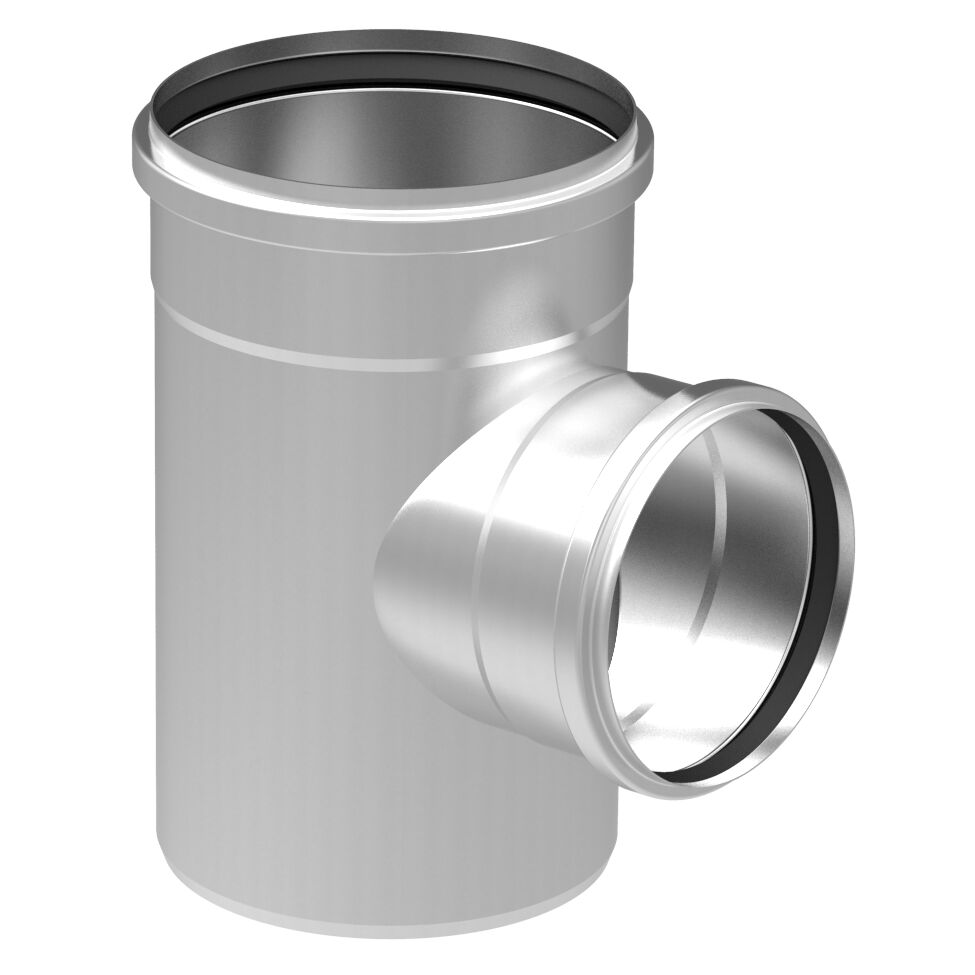

BRANCH 87.5°

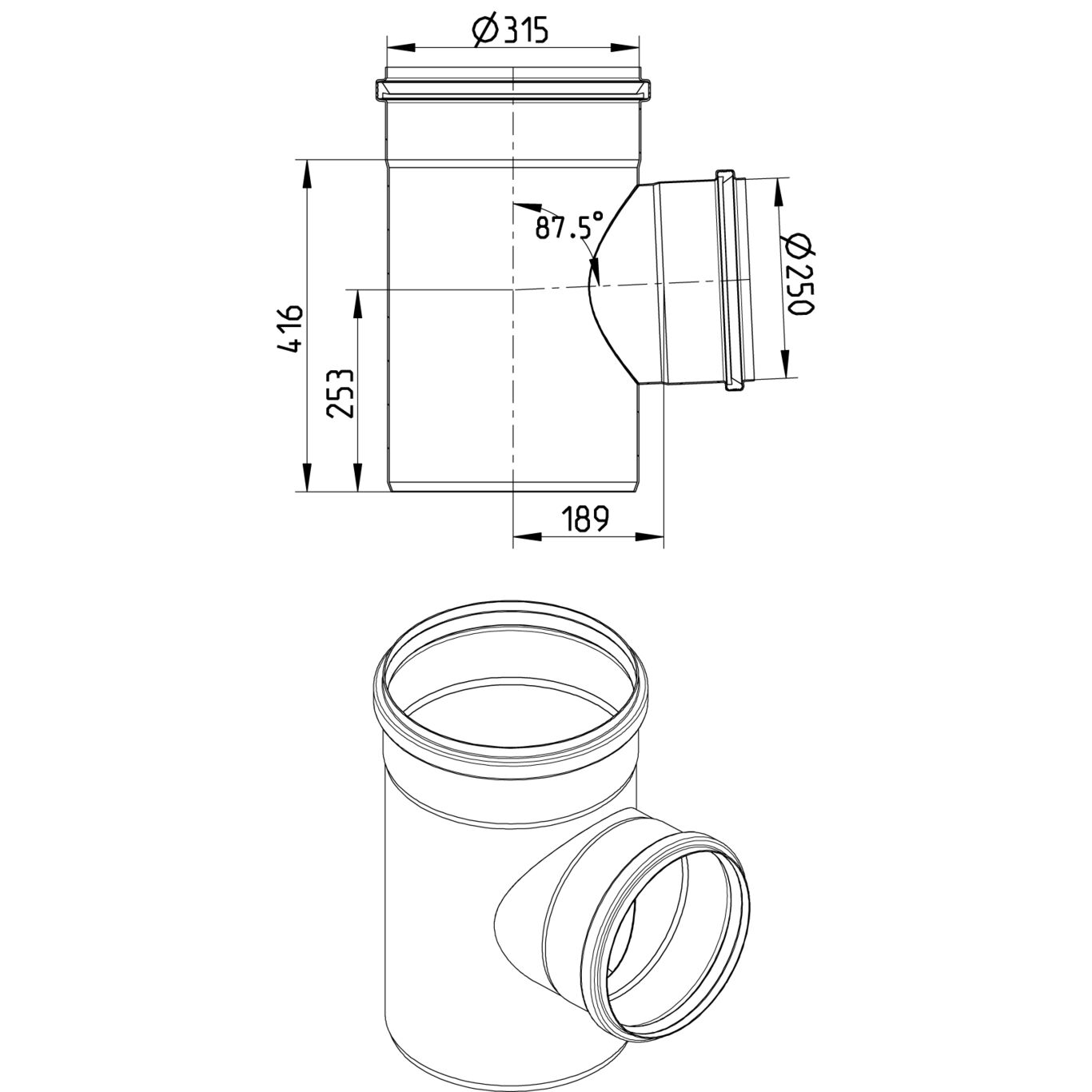

-Pipe diameter: Ø315mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 416 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 12 |
Outlet Diameter (mm) | 315 |
Weight (kg) | 9,95 |
Weight (lbs) | 21,94 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247
DK - VA 2.12/19350
DK - VA 2.12/19349 EuroPipe DS432 PL - Hygienic Certificate - All Products
