BRANCH 87.5° - (830.160.160 S)
Part Of the Series: Branch-87.5
Type no.: 830.160.160 S
EAN no.: 5705499401776
VVS no.: 160221460
RSK no.: 1550301
NRF no.: 2170828
LVI no.: 0251965

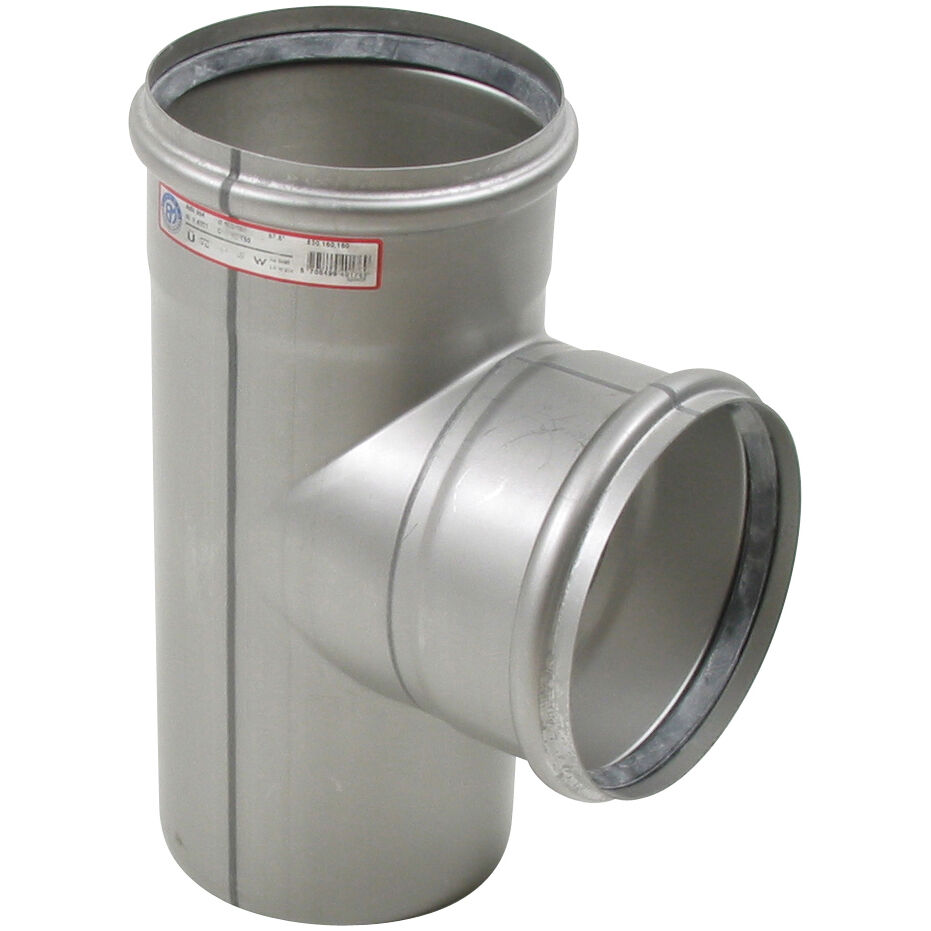

BRANCH 87.5°

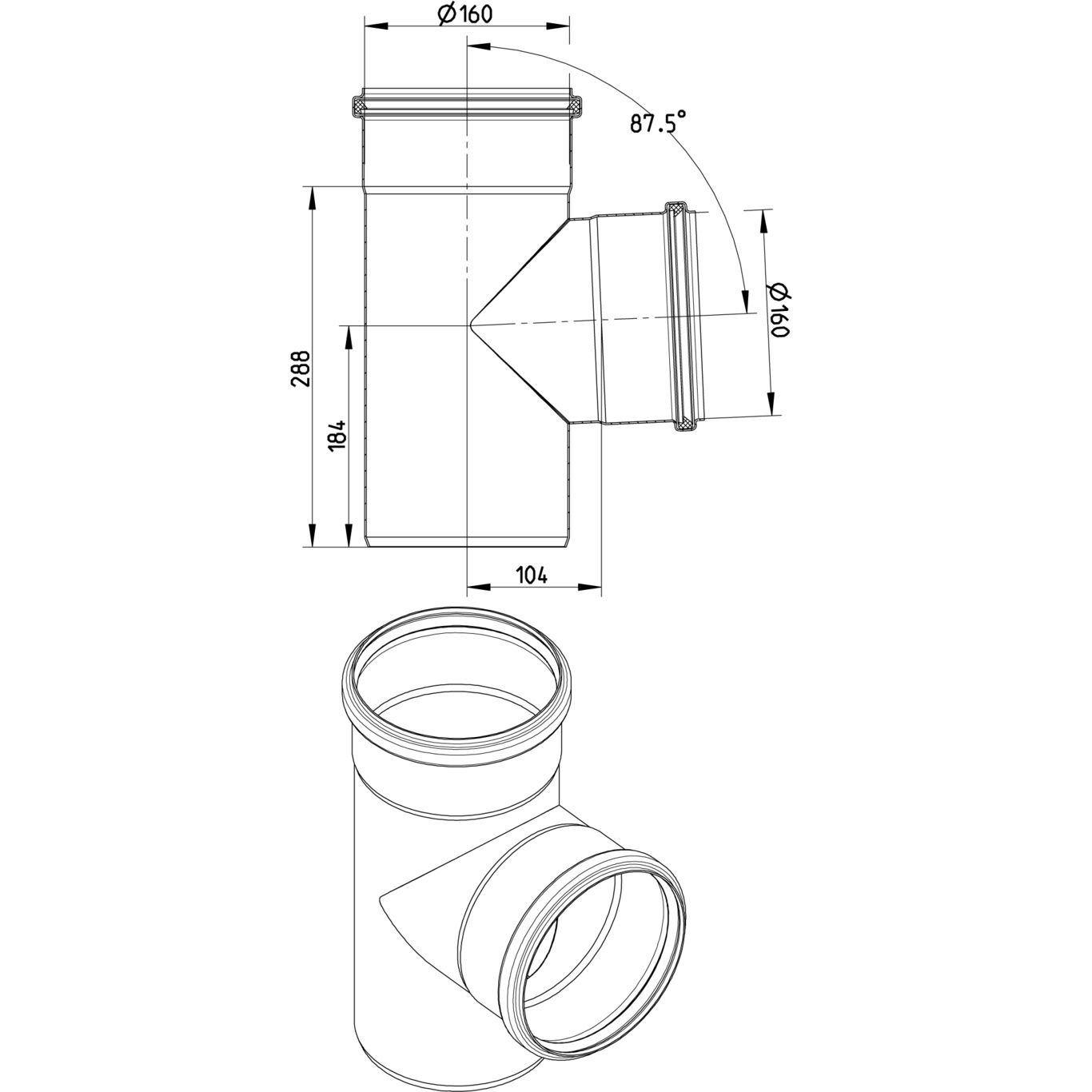

-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 288 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 2,34 |
Weight (lbs) | 5,29 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19350 FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22
