BRANCH 87.5° - (830.110.125)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.110.125
EAN no.: 5705499408973
VVS no.: 160221124
RSK no.: 1551529
NRF no.: 2170104
LVI no.: 0246017

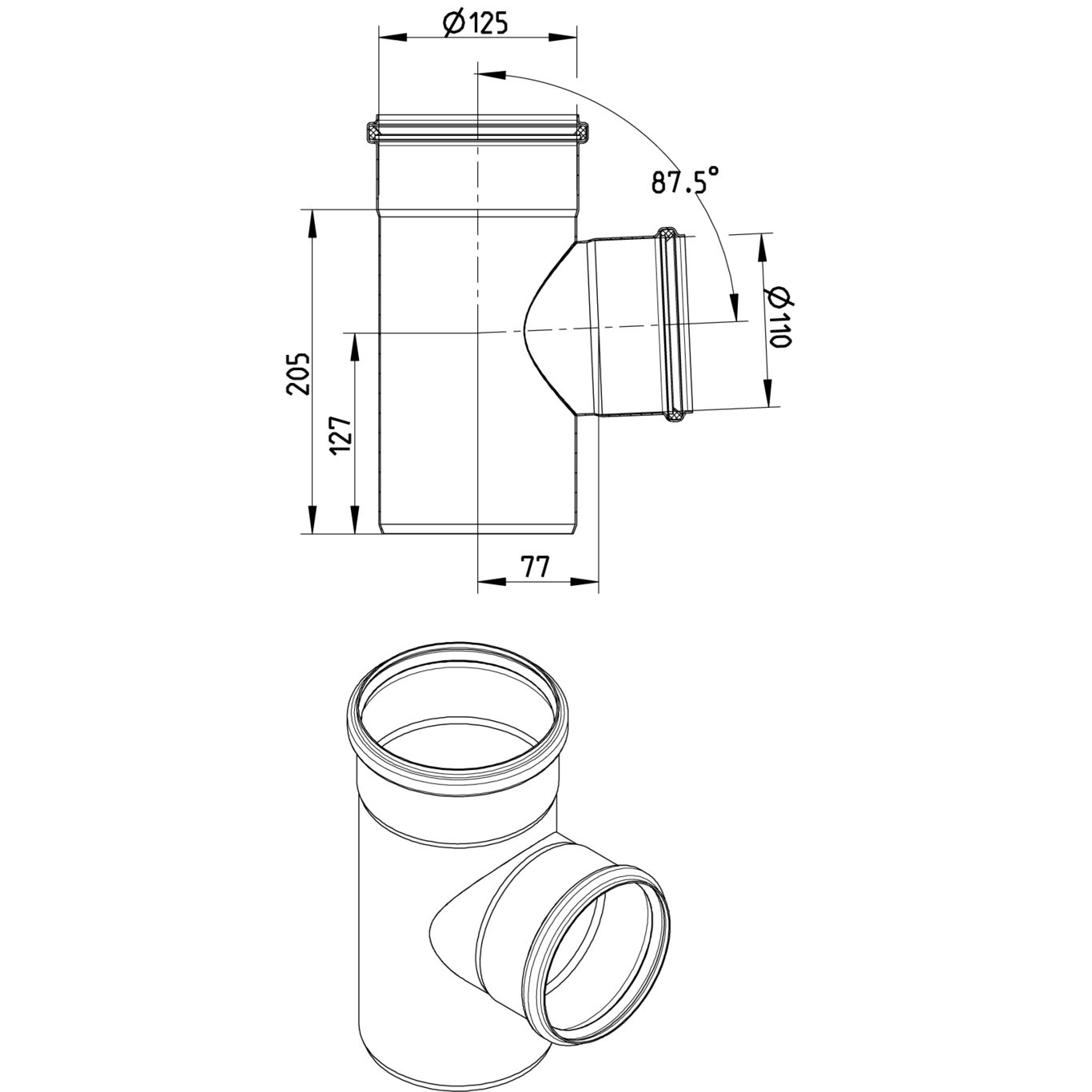

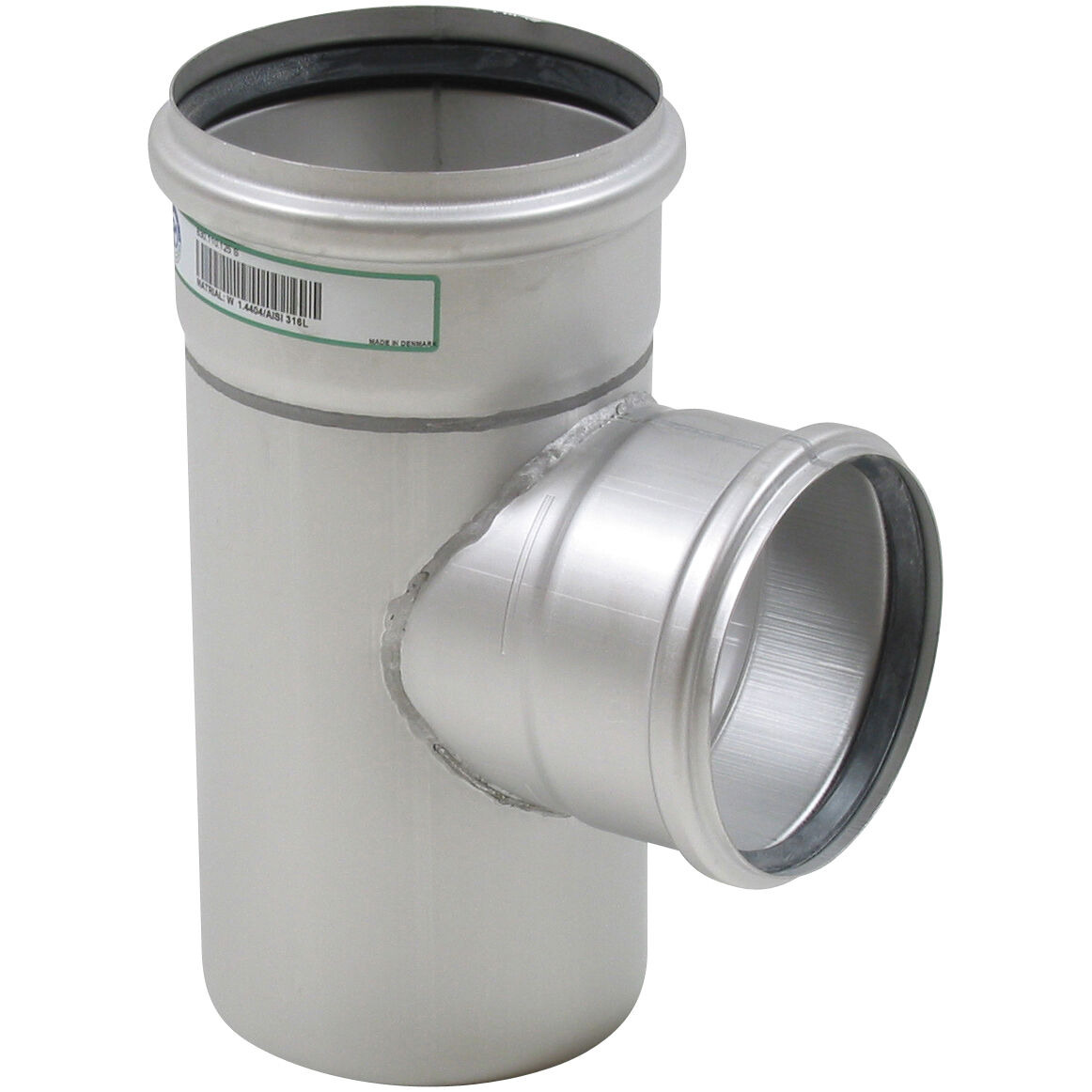

BRANCH 87.5°
-Pipe diameter: Ø125mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 205 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,25 |
| Weight (lbs) | 2,76 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM
